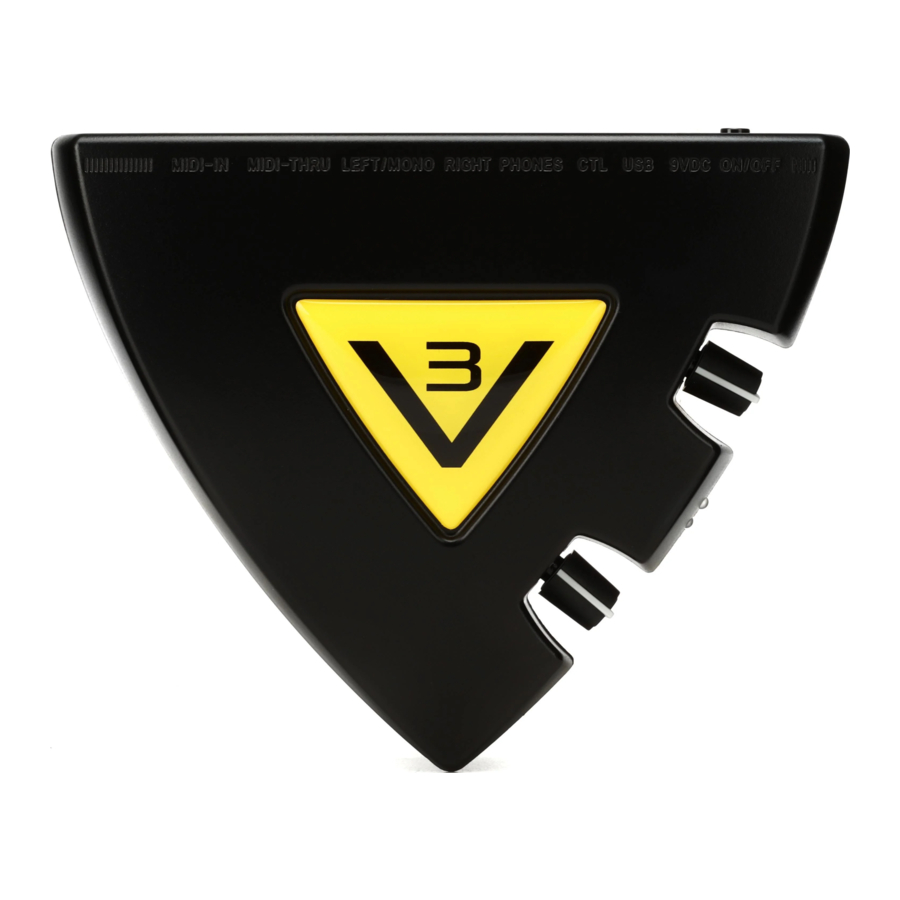

V3 SOUND Accordion Master XXL Manual

Specification

• Master Volume
• Master Reverb
• 4 GB flash memory
• 16 MIDI channels
• 4 audio out (2 stereo)
• Polyphony 256 voice
• Port available for 1 sustain foot pedal
• Dimensions: 12cm (L) x 12cm (W) x 6cm (H)
• Weight: 0.2 kg
• USB Host

PROGRAM LIST

TIP SILENCE
The program SILENCE can be found on all soundbanks on Program Change 128. The program allows you to „turn off" a MIDI channel while playing.

If you want to mute a MIDI channel via a MIDI controller, etc., it is not that easy while playing. Just choose the Program Change 128 and the channel becomes mute, and can be played back at any time by sending a Program Change with a sound.

BANK 22 - 39 or 43 and higher
If you call up a sound in MSB Bank 22 - 39 or higher then 43 you get no sound.

User interface and ports

Connect

To avoid possible damage to the loud speakers or other connected electronic devices, always connect all cables before turning on the amplifier. Turn on the Accordion Master XXL first before turning on any active loud speakers or amplifiers.

1. Make sure the POWER switch on the backΠof the device is in the OFF position (LED light is not on).
2. Plug the power adapter that came with the  device into the DC port on the back of the unit.
3. Plug the other end of the power adapter Ž into a power outlet. Make sure that the adapter is compatible with the power supply.
4. Connect the audio outputs to an amplifier,  active loudspeakers or headphones.
5.  Connect the MIDI or USB cable to the V3 unit.

To turn on

Before you turn the device on or off, make sure that all connected audio devices that amplify the audio signal (mixer, amplifier, active loud speakers) have their volumes turned down.

1. Press the POWER ON/OFF switch on the back of the device.
2. Turn up the V3 unit MAIN VOLUME knob to adjust the volume.
3. Adjust the volume on your mixer or active loudspeaker.

TIP
Turn the volume on the V3 unit as loud as possible, and then adjust the volume of the sound on your mixer.

Connect – USB keys

The V3 unit can be connected to any USB Audio Class 1 compatible keyboard. The Accordion Master XXL can supply your USB keyboard with a maximum of 100mA.

If your keyboard requires more than 100mA, you will need an external power supply.

Just plug in your USB keyboard here.

Foot pedal

The polarity of the sustain foot pedal is set up automatically when you turn on the V3. The pedal only works on MIDI channel 1.

Connect the foot pedal before turning on the device.

Aux out - 2nd stereo out

To use the AUX OUT for any MIDI channel, you must manually change the 4 internal switches and send a MIDI message on the specified MIDI channel.

The connection changes from 2 mono jacks to 2 stereo jacks.

One stereo jack gives you the MAIN stereo; the other one the AUX stereo.

STEREO L + R standard = BABAA (grafic)
STEREO + AUX = BBABB

Sustain pedal grabbing and the half pedal function are only active on MIDI channel 1

ABOUT POLYPHONY
The unit offers 256 mono voices. Many sounds of the Accordion Master XXL use 4 voices per note.

If you hit 10 notes at the same time, 40 voices are used. If you hold down the sustain pedal, the 40 voices are sustained and still in use. If you play again, 40 more voices are needed.

So, do not forget to release the sustain pedal! If you exceed the Polyphony, a clicking sound is audible.
