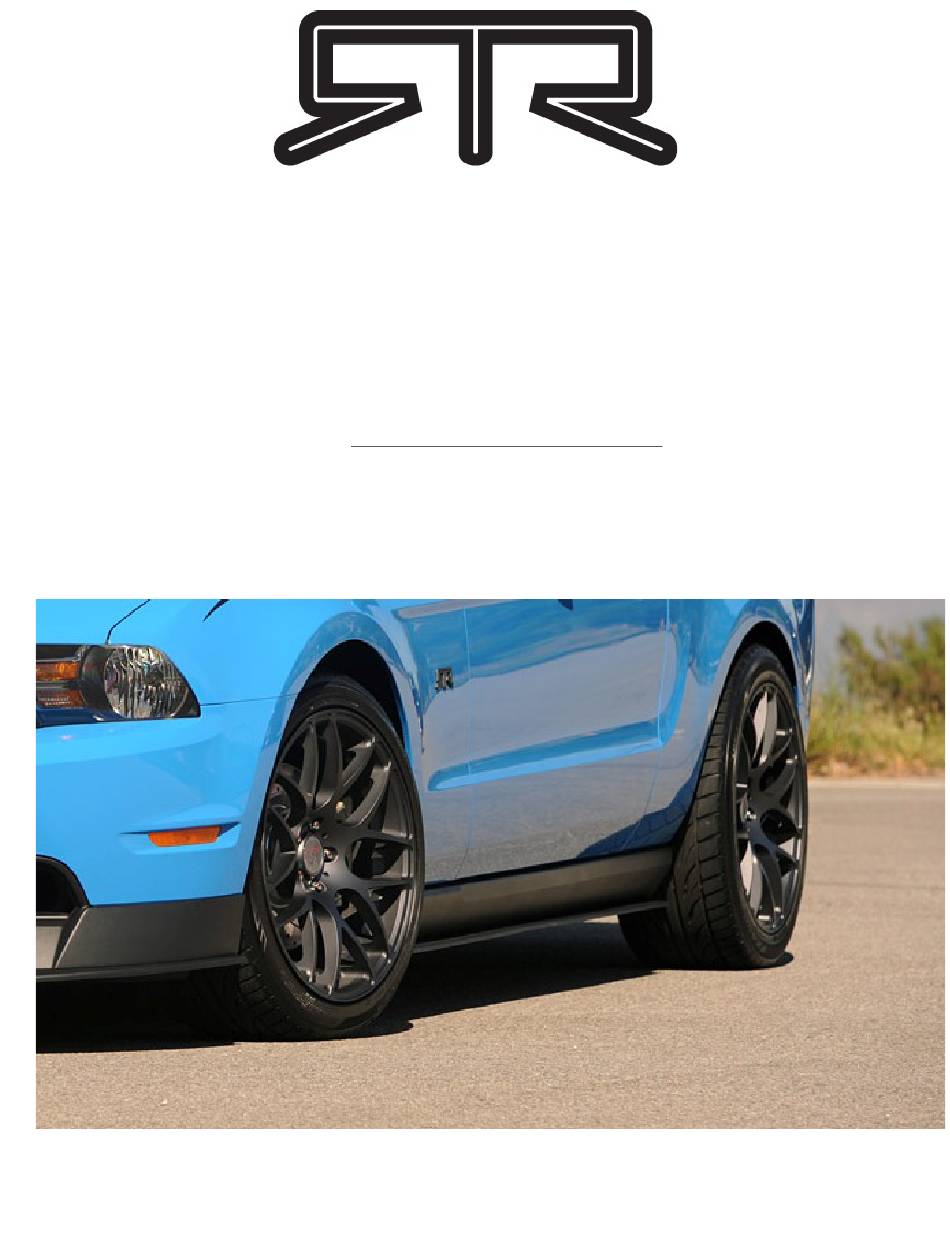

MUSTANG RTR SIDE ROCKER SPLITTER
Before installing your RTR components, rear through the entire installation process and
check to make sure all items are present. Contact RTR at 866-839-7444 9am-5pm EST
week days for any questions regarding fit, missing parts or instructions that are unclear
to you.
KIT
Part # 1011-7000-01
Application: 2010-2014 Mustang
Installation Instructions
Advertisement
Table of Contents
Summary of Contents for RTR Energia 1011-7000-01
- Page 1 MUSTANG RTR SIDE ROCKER SPLITTER Part # 1011-7000-01 Application: 2010-2014 Mustang Installation Instructions Before installing your RTR components, rear through the entire installation process and check to make sure all items are present. Contact RTR at 866-839-7444 9am-5pm EST week days for any questions regarding fit, missing parts or instructions that are unclear to you.
-
Page 2: Limit Of Liability Statement
Equipment and Supplies Required Isopropyl Alcohol Pliers Drill ¼” Drill Bit Phillips Screw Driver Soft Lint-Free Cloth Electrical tape Recommended Equipment and Supplies Required 3M General Purpose Adhesive Cleaner (PN 08984) Or 3M Prep Solvent 70 Low VOC Cleaner (PN 08973) USE EXTREME CAUTION WHEN WORKING UNDERNEATH VEHICLE. -
Page 3: Safety Requirements
Mustang RTR reserves the right to revise the information presented herein or to discontinue the production of parts described at any time. SAFETY REQUIREMENTS STOP! READ IMPORTANT SAFETY CAUTIONS AND WARNINGS BEFORE PROCEEDING. IMPORTANT SAFETY NOTICE Appropriate disassembly, assembly methods and procedures are essential to ensure the personal safety of the individual performing the kit installation. -
Page 4: Work Safely
WORK SAFELY! Perform this installation on a good clean level surface for maximum safety and with the engine turned off. Installation 1. Select the LH Rocker Splitter. The LH and RH Rocker Splitters are marked on the back side near the center of the part. Refer to figure 1. 2. - Page 5 3. Clean the noted area and apply the 3M 4298 Adhesion Promoter to the factory rocker panel molding. 4. Using a pair of pliers, reach into the rocker panel molding pockets as shown and pull the (8) push pins from the left side rocker panel molding and discard. Refer to figure 3.
- Page 6 6. Loosely install the left side rocker splitter and eight (8) new push pins. Ensure that the foam tape pull tabs are accessible. Refer to figure 5. The picture shows a large gap for clarity. Press the push pins in, leaving a 1/8” to 1/4” gap. 7.
- Page 7 8. Pull the four (4) tape pull tabs to remove the tape backing. Refer to figure 7. 9. Press the left side rocker splitter into place. Apply firm pressure at 3-4 inch intervals along the entire length of the rocker splitter to ensure a strong bond. 10.
- Page 8 11. Install a new push pin into each of the five (5) drilled holes. Refer to figure 9. 12. Repeat steps 1-11 for the right side rocker splitter. Congratulations! You have completed the installation of the Side Rocker Splitters.
