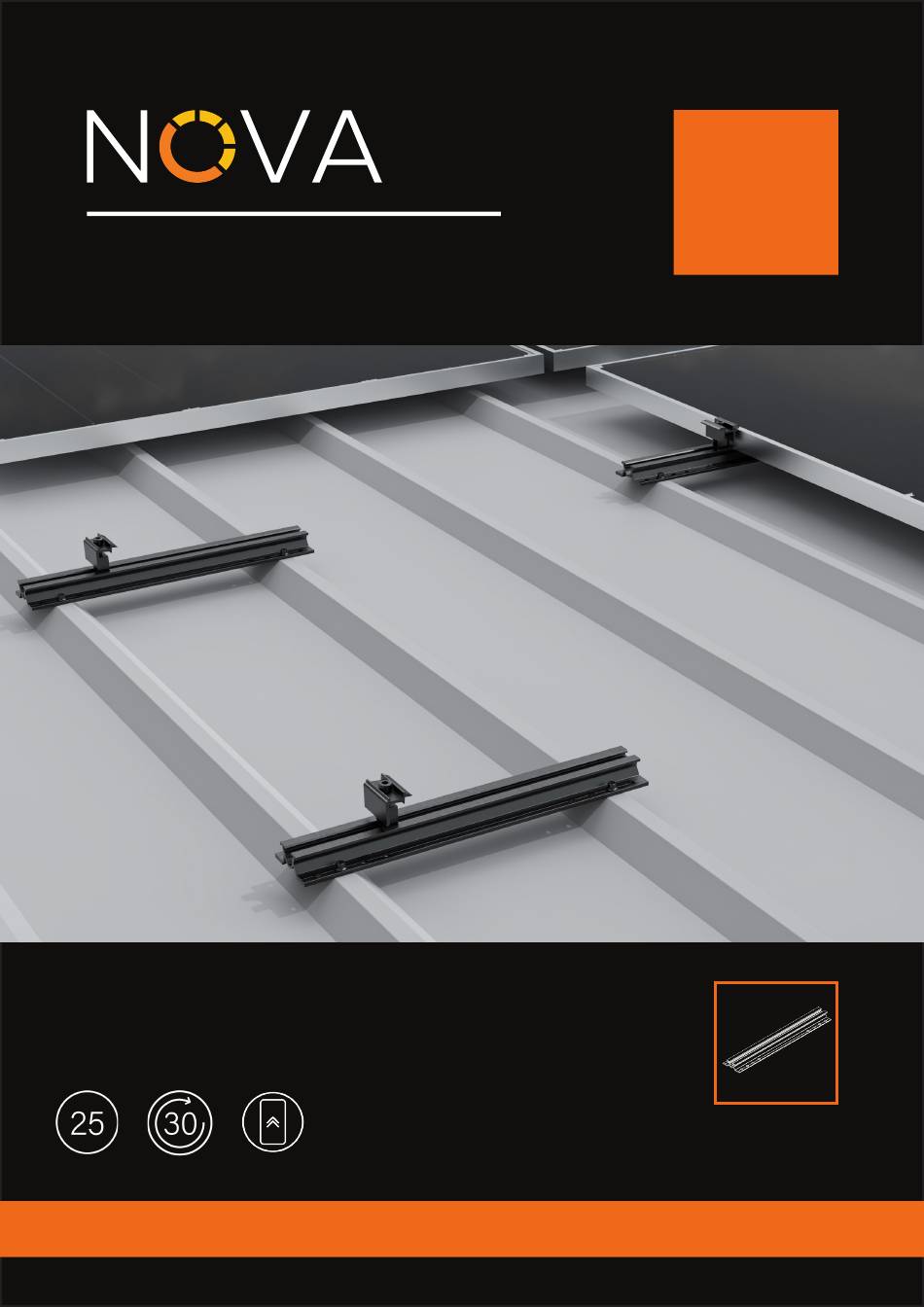

- Page 1 INSTALLATION MANUAL Roof Mounting System NOVA MINI RAIL ARTICLE # 920-122310 / 920-122310-B REGINA WAUTERSWEG 13, 8800 ROESELARE BELGIUM +32 (0)51 14 05 94 UP-TO 30% FASTER PORTRAIT 25 YEAR INSTALLATION WARRANTY WWW.NOVAMOUNTING.COM...
-
Page 2: Testing & Certification
NOVA Mounting. WARRANTY Warranty according to the terms and conditions found on the website www.novamounting.com NOVA is not accountable for the roof’s capability to maintain the introduced forces. Please check the roof’s compatibility with a static engineer. - Page 3 Mini Rail system 13mm...
- Page 4 Sol ar panel l ay out 18mm Solar panels layout...
- Page 5 I nst alling Mini Rail STEP.1 Use self-tapping screw (st6.3x25mm) to install the NSR mini rail. (Recommended torque: 9- 11N.M) It is recommended to apply polyurethane (PU) waterproof glue to achieve complete waterproofing, if the roof involves perforated installation. It is recommended to string a horizontal line between the two Mini Rail to ensure that they are at the same level.
- Page 6 STEP.2 Install NOVA panel clamps. When installing the first panel, adjust the position of the solar panel according to the technical drawings, secure the panel on the rails by the panel clamps. Slide/clip the clamp in to the rail. ①...
- Page 7 √...
- Page 8 Components Part Name Mini Rail Portrait Article # 920-122310 Figure Part Name NOVA Click End Clamp 30-40mm NOVA Click Mid Clamp 30-35mm Article # 930-991420 930-991410 Figure Regina Wautersweg 13, 8800 Roeselare Belgium +32 (0)51 14 05 94 hello@novamounting.com www.novamounting.com...
