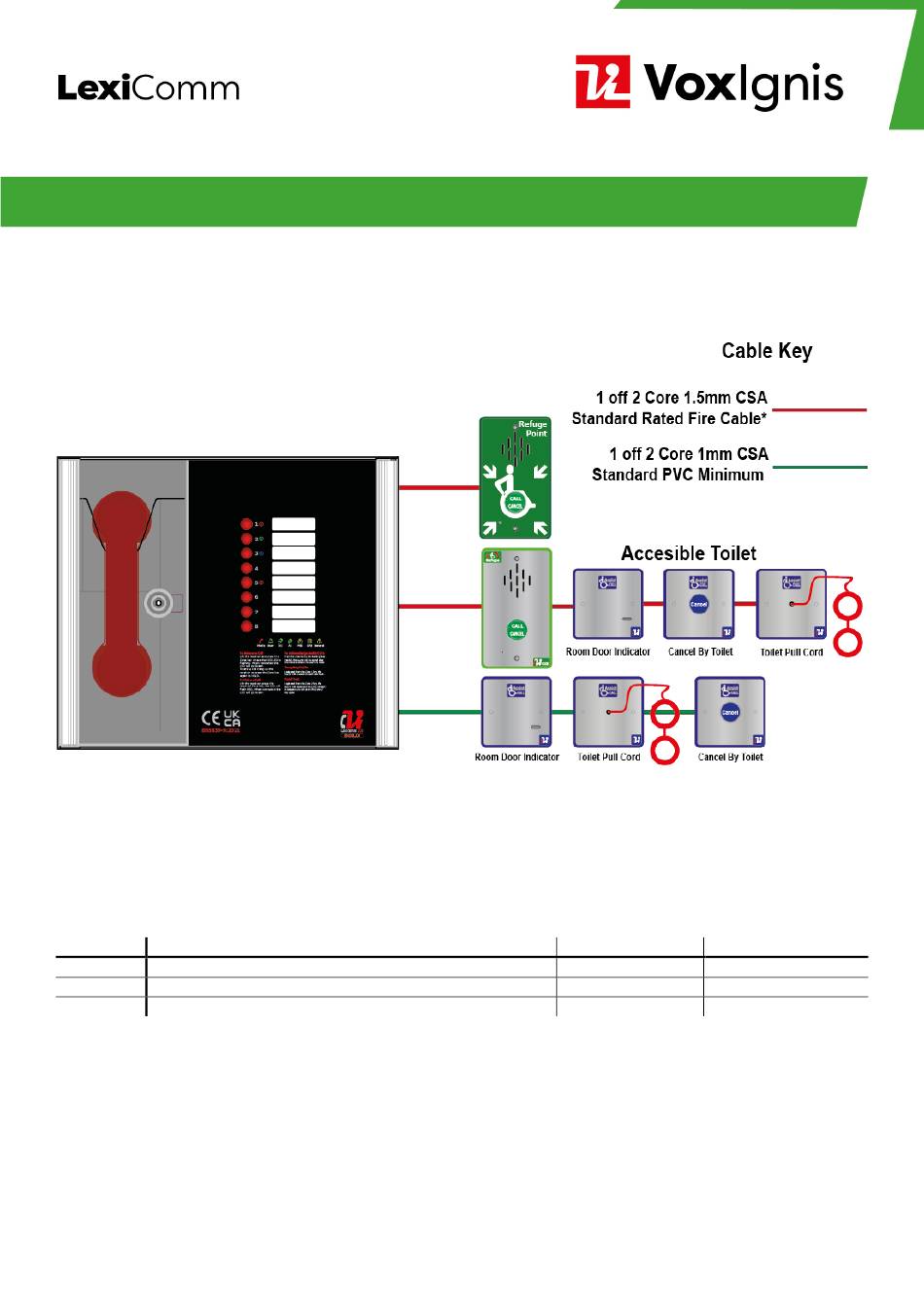

Lexicomm 228S
Installation and Commissioning Manual
Document Control
Revision
Description of Change
0
Initial Draft/ Release
1
Relay changes, Mode LED changes, indicator changes
2
Updated layout
Document DViLX228S1003-02
Lexicomm Solo EVCS
Master Station
Revision 2 – January 2025
Product Manual
Date of Change
Author of Change
JS
02.02.23
JK
19.11.24
JS
Page 1 of 21
Advertisement
Table of Contents
Related Manuals for Vox Ignis Lexicomm 228S
Summary of Contents for Vox Ignis Lexicomm 228S
- Page 1 Lexicomm 228S Product Manual Lexicomm Solo EVCS Master Station Installation and Commissioning Manual Revision 2 – January 2025 Document Control Revision Description of Change Date of Change Author of Change Initial Draft/ Release Relay changes, Mode LED changes, indicator changes 02.02.23...
-
Page 2: Table Of Contents
Table of Contents 1 Introduction .............................. 3 1.1 What is an Emergency Voice Communication System? ................... 3 1.2 Suitability ..............................3 2 Product Overview ............................. 3 3 Important Safety Information ........................4 Anti-static handling guidelines ........................4 3.1 Battery Information ............................. 4 4 Unpacking the Unit ........................... -
Page 3: Introduction
1 Introduction 1.1 What is an Emergency Voice Communication System? An Emergency Voice Communication System, or EVCS, is a system that allows voice communication in either direction between a central control point and several other points throughout a building or building complex, particularly in a fire or emergency. -
Page 4: Important Safety Information
3 Important Safety Information This Equipment must only be installed and maintained by a suitably skilled and competent person. This Equipment is defined as Class 1 in EN IEC62368-1:2020+A11:2020 and must be EARTHED. Caution Indoor Use Only Shock Hazard- Warning Isolate Before Opening TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT Warning... -
Page 5: Unpacking The Unit
• 1 number Battery lead. If there are any items missing, please contact your supplier or Vox Ignis Limited, quoting the unit serial number and the name on the packing list enclosed, so the situation can be rectified. Document DViLX228S1003-02... -
Page 6: Installation
5 Installation Mains supply connection Relay contacts Figure 2 Prior to mounting the ViLX-228S Master Station, it should be decided if the field wiring is to be run on the surface or concealed. There are 14 knockouts on the top and 2 slotted entries with a dedicated mains supply entry at the rear. If a knockout is removed by mistake, fill the hole with a good quality cable gland. -
Page 7: Connecting The Vilx-228S Master Station
5.1 Connecting the ViLX-228S Master Station To comply with EMC (Electro Magnetic Compatibility) regulations and to reduce the risk of electrical interference in the system wiring, the use of fire-resistant screened cables is recommended throughout the installation. All wiring should come into the enclosure via the knockouts provided and be fixed tidily to the relevant terminals. Note that correct cable glanding is essential. -
Page 8: Mains Connection
A ViLX-228S Master Station requires one number 12V 7AH valve regulated sealed lead acid battery. The battery is not supplied with the ViLX-228S Master Station. Vox Ignis recommend a Yuassa NP7-12 Safety Information: Sealed Lead Acid batteries contain sulphuric acid which can cause burns if exposed to the skin. -
Page 9: Outstation Connections
5.6 Outstation Connections The ViLX-228S Master Station is equipped with at least one number Dual line card. One outstation per line output can be connected. If no outstation is connected to the line output, then an end of line 10kΩ resistor should be fitted. The dipswitch located on the rear of the door mounted Display PCB is used for configuration see 6.1 The following devices are available on the system: Type A (fixed phone) - Page 10 5.6.4 Accessible Toilet connection via Type B outstation It is possible to connect the Assist Call ACA Kit to the Vox ignis Type B outstation. The kit is connected as shown in the schematic in Error! Reference source not found., it is connected to the EOL Out terminal. It must be wired using the same integrity cable as the type b outstation to meet BS 5839-9:2021.
-
Page 11: Auxiliary Connections
5.6.5 Fire telephone jack type connection The system is fully compatible with Vox Ignis range of jack points and roaming phones. Connections for standard ViLX-OSJ jack points Figure 10 Figure 9 Figure 11 Connections for ViLX-OSJ-S jack point with switch contact output. There are 2 x sets of terminals for In and Out connections, the wiring is polarity conscious. -
Page 12: Set Up Procedure
6 Set up procedure The ViLX-228S Master Station has various site configurations which are configured using the dipswitch located on the rear of the Display PCB. Figure 13 6.1 ViLX-228S Master Station Display PCB Dipswitch Settings Line Line Line Line Reserved Remarks 1&2... -
Page 13: Exchange Pcb Diagram
6.2 Exchange PCB Diagram- Figure 15 - Lex icom m Figure 14 - Lex icom m Solo Ex change P CB Diagram Dual Line Card 6.3 Adding a Line Card The ViLX-228S Master Station is supplied with at least one number Line Card. There are 2 lines per Line Card. Before adding a Line Card, ensure that the ViLX-228S Master Station is not powered. -
Page 14: Panel Indicator Test
7.3 Panel Indicator Test To test the panel indicators, enter either the access level 2 (code: 1664) or access level 3 (code: 1812) menu, then press zone button 2. All LEDs will illuminate in a predefined sequence, and the buzzer will sound. Press zone button 8 to stop the panel indicator test and to return to the menu options. -
Page 15: Operation
Enter the access level 3 code (1812), then press button 5 to enter this mode. The magenta zone indicators from 1 to 8 will be illuminated depending on selection. When the required selection has been made press button 8 to exit this mode. -
Page 16: Accepting Faults
intermittent. This change in indication and buzzers during the acknowledge phase indicates to the WC user that help is on the way. 8.7 Accepting Faults Before accepting faults, the fault must be noted in the log book, along with the time the fault was reported. To accept the fault, enter either the access level 2 (code: 1664) or access level 3 (code: 1812) menu, then press zone button 1. -
Page 17: Power Supply And Cpu Indicator Summary
9.2 Power supply and CPU indicator Summary General Description Mains OK Flash Flash Mains failure Battery OK Flash Flash Battery open circuit Flash Battery short circuit Flash Flash Battery high impedance Flash PSU processor fail ... -
Page 18: Commissioning Procedure
10 Commissioning procedure The commissioning should be carried out by a competent person who has a basic knowledge and understanding of the design and installation sections of BS 5839-9:2021 and has access to the specification of the project. 10.1 Cable Checks The 500v insulation tests should have been carried out by the installer and the results made available to the commissioning engineer. -
Page 19: Outstation Zone Template
12 Outstation zone template There is space to the right of each outstation zone indicator to name the location of the outstation. At the rear of the display door there is a slot located in the centre above the display PCB; the outstation zone template can be inserted here. - Page 20 Notes Document DViLX228S1003-02 Page 20 of 21...
-
Page 21: Technical Specification
Company Registration No: 8892407 www.vox-ignis.com info@vox-ignis.com WEEE All information is believed to be correct at time of printing E&OE. Vox Ignis operate a policy of continuous improvement; always confirm specification details before purchase. Compliant Company Registration No: 8892407 info@vox-ignis.com Product...
