Shadow-Caster SCM-CL10-RGBW-SS Product Instructions

CL10
10" RGBW LED COURTESY LIGHT
MODELS: SCM-CL10-RGBW-SS
THEORY OF OPERATION
The Shadow-Caster® CL10 Courtesy Light is a 10-inch
RGBW light designed for larger areas on your vessel. It
features a true white channel for efficient illumination and
a sleek, low-profile, IP67-rated design. The CL10 is versatile
for mounting in compartments, steps, and shelves, offering
reliable and functional lighting with flexible control options.
OPERATION
• When power is applied to the CL10 Courtesy Light, it
provides full illumination instantly with no ramp-up delay.
• The light is controlled via the RGBW controller or compatible
switch. Adjust colors and brightness using the controller for
customized lighting effects.
SPECIFICATIONS
• Light Output: Up to 250 lumens of white light
• Power Consumption: 240mA per RGBW channel (Red, Green,
Blue, White)
• Input Voltage: 12V DC, 1A max
• Dimensions: 10.12" x 1.01" x 0.63" (257.2 x 25.6 x 16mm)
• Material: 316 stainless steel polished covers
• Waterproof Rating: IP67 (fully immersible)
• Wiring: 5-conductor RGBW wire
SCM-CL10-RGBW-SS
RGBW CONTROLLER
CONNTECTOR PINS
Designed & Manufactured Designed & Manufactured
in Clearwater, FL in Clearwater, FL
© 2024 Shadow-Caster © 2024 Shadow-Caster LEDs. All Right Reserved. LEDs. All Right Reserved.
®
P R O D U C T P R O D U C T
COURTESY LIGHT
Shadow-Caster Shadow-Caster
p: +1 727.474.2877 p: +1 727.474.2877 e:
I N S T R U C T I O N S I N S T R U C T I O N S
INSTALLATION
• Drill mounting holes according to template provided
• Connect power and ground and optional Shadow-NET
• Put a 1/8" size ball of silicone sealant in screw holes
before mounting
• Screw in light
• Stainless steel covers slide in from the ends
CLEANING INSTRUCTIONS
• Clean with soap and water with a
soft towel or sponge

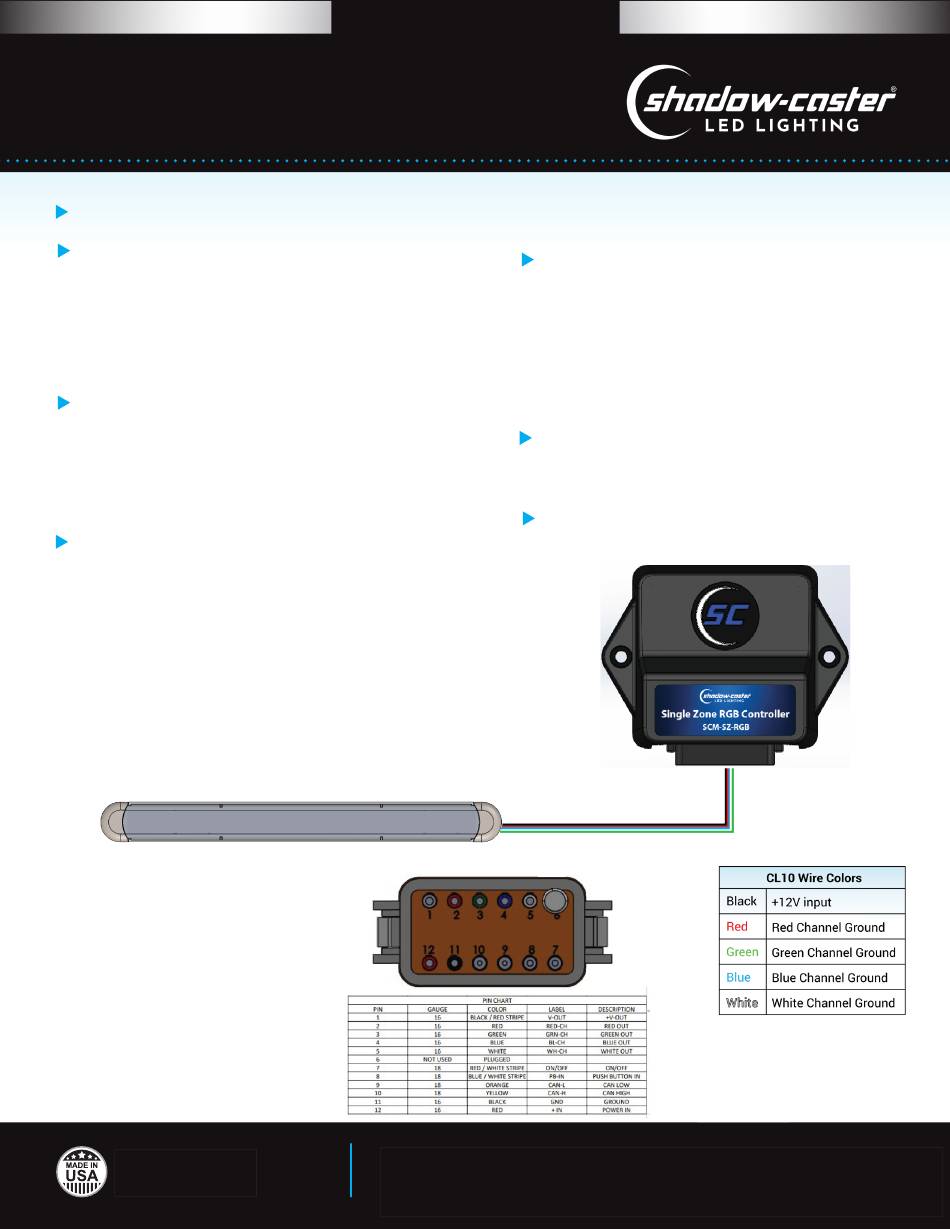

WIRING & USE SCHEMATIC
SINGLE ZONE
RGBW CONTROLLER
SCM-SZ-RGB
LED Lighting LED Lighting | | 2060 Calumet Street 2060 Calumet Street |
® ®
e: info@shadow-caster.com info@shadow-caster.com w:
| Clearwater, FL 33765 Clearwater, FL 33765
w: shadow-caster.com shadow-caster.com
2024.10
