FEATURES
SPI CONTROLLER for Digital LED-Strip
Power supply (DC IN): 5-12-24 Vdc
Output (OUT): value equal to input voltage
RGB and WWW Light Control
Local control via Normally Open (N.O.) Pushbutton
Remote control via BUS (DALI)
Master/Slave functionality (SYNC)
Device configuration via Dalcnet LightApp
Integrated Circuit (IC) LED type
o
Control and Colour Type
o
Up to 10 dynamic effects
o
DALI parameters
o
Power-ON state
o
Transition Parameters (Fade)
o
DALI Groups and Scenes
o
Opto-Isolated BUS Input
Extended temperature range
100% Functional test

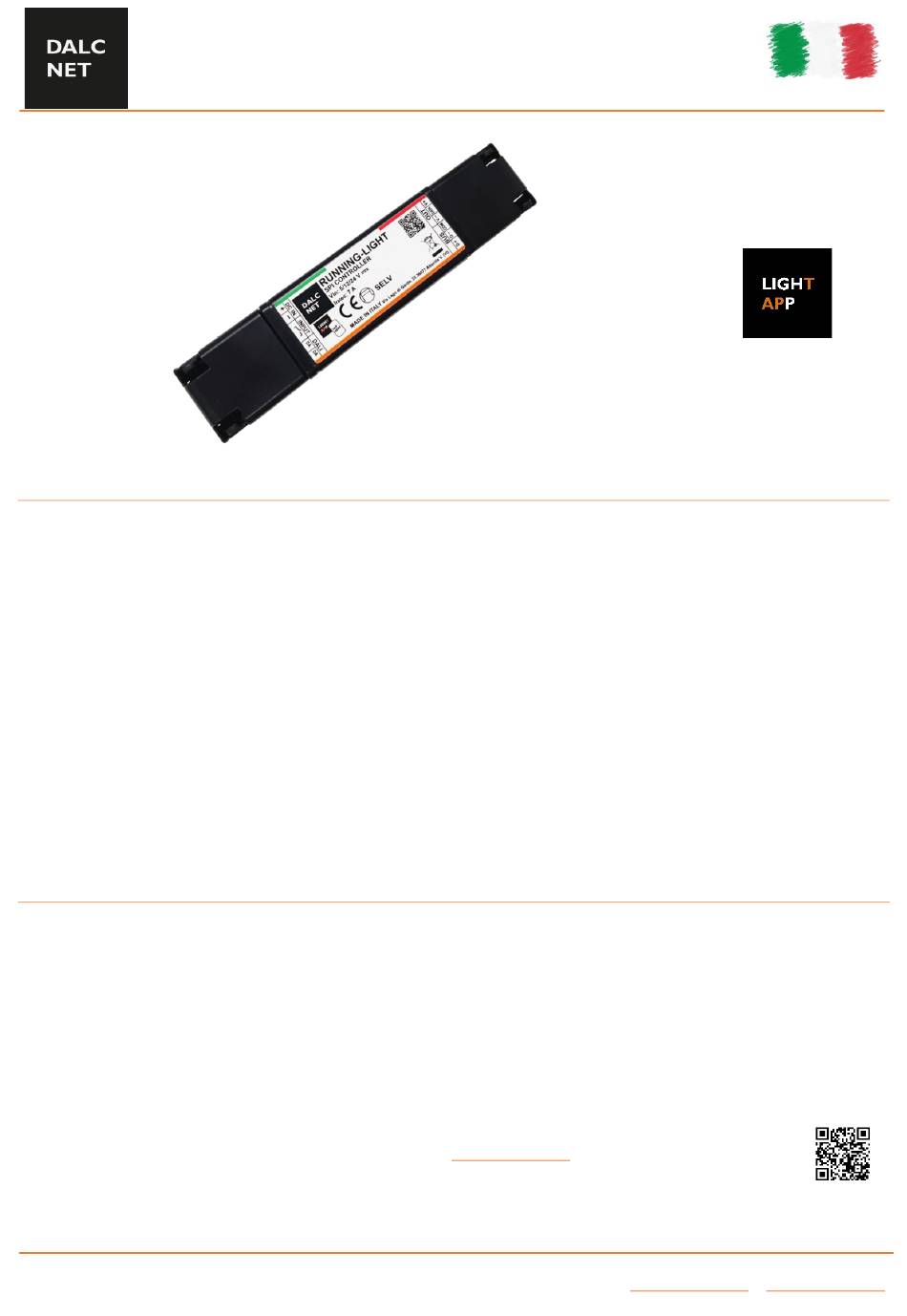

PRODUCT DESCRIPTION
RUNNING-LIGHT is an SPI controller for pixel-to-pixel LED control on digital (programmable/addressable) LED strips, which can be
connected to a SELV constant voltage (5 ÷ 24) Vdc power supply. The controller is suitable for driving loads such as Digital LED-
strips and RGB or WWW LED modules at constant voltage. It can be controlled locally via Normally Open (N.O.) pushbutton or
remotely via DALI (Digital Addressable Lighting Interface) digital protocol.
RUNNING-LIGHT can deliver a maximum output current of 7 A and has the following protections: over-voltage and under-voltage
protections, reverse polarity protection and input fuse protection.
Through the Dalcnet LightApp
is possible to configure multiple parameters when the device is switched OFF, including up to 10 different light effects, colour,
speed, direction, pixel length, and transition parameters. Dalcnet LightApp
Store and Google Play Store.
⇢ For the most up-to-date manual, please consult our website
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago di Garda, 22
RUNNING-LIGHT
©
mobile application, parameters can be set:
©
mobile application and smartphones equipped with Near Field Communication (NFC) technology, it
User Manual
©
can be downloaded free of charge from the Apple APP
www.dalcnet.com
or QR Code.
Made in Italy
Tel. +39 0444 1836680
www.dalcnet.com
–
info@dalcnet.com
Rev. 24/10/2024 - Pag. 1/19
Advertisement
Table of Contents
Related Manuals for DALCNET RUNNING-LIGHT
Summary of Contents for DALCNET RUNNING-LIGHT
- Page 1 RGB or WWW LED modules at constant voltage. It can be controlled locally via Normally Open (N.O.) pushbutton or remotely via DALI (Digital Addressable Lighting Interface) digital protocol. RUNNING-LIGHT can deliver a maximum output current of 7 A and has the following protections: over-voltage and under-voltage protections, reverse polarity protection and input fuse protection.
-
Page 2: Product Code
✔ Reverse Voltage Polarity DC-IN Table 2: Detection and Protection functionalities REFERENCE STANDARDS RUNNING-LIGHT complies with the regulations shown in the table below. STANDARD TITLE EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and... -
Page 3: Technical Specifications
RUNNING-LIGHT User Manual Made in Italy TECHNICAL SPECIFICATIONS Values Unit of Description Name Note Measure INPUT (Power Supply DC IN) Nominal Supply Voltage Supply Voltage range ÷ IN-RNG Efficiency at full load > 95 Standby power absorption < 0.5 STBY... -
Page 4: Installation
OAD WIRING RUNNING-LIGHT has one output channel that can be drive a Digital LED strip RGB or WWW. The type of colour, the IC LED type, and the number of LED elements to be driven are configurable from Dalcnet LightApp ©... -
Page 5: Remote Control Wiring
For longer distances (>10 m), it is recommended to use an N.O. dry contact relay module, connected between the "Input" terminal of the RUNNING-LIGHT and the power source (e.g. mains voltage 230 Vac). Figure 5 shows an example of a Local Command wiring recommended for long distances. - Page 6 Following diagrams shows two different sync wiring configurations, depending to the sync cable used. RUNNING-LIGHT devices can be powered by a single DC power supply or by a dedicated DC power supply for each device. In any case, make sure that the rating data of the power source(s) comply with the requirements listed in Table 4.
-
Page 7: Power Supply Connection
ONNECTION RUNNING-LIGHT can be powered by a 5 Vdc, 12 Vdc or 24 Vdc constant voltage SELV power supply, depending on the operating voltage of the LED load. Once all above connections are performed, connect the power supply to the "+" and "-"... - Page 8 User Manual Made in Italy LOCAL CONTROL: PUSHBUTTON RUNNING-LIGHT has one dry contact input for N.O. pushbutton, through which different operating parameters can be managed. Each action on the pushbuttons activates a specific function for the Effect selected via LightApp ©...
- Page 9 (0 ÷ 255), each of which represents a light characteristic to be modulated on the LED load. RUNNING-LIGHT currently only supports the DT6 profile, future updates may be released in the future. The "DT6" profile allows you to adjust the light intensity for of all the effect set in the dedicated LightApp ©...
-
Page 10: Mechanical Dimensions
Made in Italy THERMAL CHARACTERIZATION Operating Temperature Window Figure 11 shows the maximum output current values OUT max that can be provided by the RUNNING-LIGHT as a function of the operating temperature (or ambient temperature, T ) of the operation, summarized below: ... -
Page 11: Technical Notes
RUNNING-LIGHT User Manual Made in Italy TECHNICAL NOTES NSTALLATION ATTENTION! Installation and maintenance should always be carried out in the absence of DC voltage. Before proceeding with the installation, adjustment, and connection of the device to the power supply, make sure that the voltage is disconnected from the system. -
Page 12: Legal Notes
ERMS OF Dalcnet Srl (hereinafter referred to as "the Company") reserves the right to make changes to this device, in whole or in part, without prior notice to the customer. Such changes may affect technical aspects, functionality, design, or any other element of the device. The company is not required to notify you of such changes and that your continued use of the device will constitute your acceptance of the changes. - Page 13 Made in Italy LIGHTAPP LightApp © is the official Dalcnet application through which it is possible to configure, in addition to the functions of the RUNNING-LIGHT, also all the different Dalcnet products equipped with NFC technology. Dalcnet LightApp © can be downloaded free of charge from the Apple App Store and Google Play Store.
-
Page 14: Loading Parameters
RUNNING-LIGHT User Manual Made in Italy IRMWARE On the firmware page, you can update the firmware of your device. The requested file must be of type .bin. Once the file has been uploaded, simply follow the on-screen instructions. ATTENTION: ... - Page 15 RUNNING-LIGHT User Manual Made in Italy RODUCT NFORMATION On the Product Information screen, you can view a variety of information about the product you are about to configure. Product Name: User-settable field for easy identification (e.g. Office, Meeting Room, Lobby, etc.). By default, the product name is the same as the Model field.
- Page 16 RUNNING-LIGHT User Manual Made in Italy FFECT ETTINGS In this section can be configured the Effect’s parameters for each effect selected in Control Settings menu. TATIC The Static effect performs a customizable colour effect without animation Settings: customize the colours of the digital LED strip.
- Page 17 RUNNING-LIGHT User Manual Made in Italy AINBOW The Rainbow effect performs a colour effect where the LED strip change dynamically and softly the colour animation No customizable settings are provided for this effect. The Wave effect performs a customizable colour effect with wave animation Settings: customize the colours of the digital led strip.
- Page 18 RUNNING-LIGHT User Manual Made in Italy ANDOM The Random effect performs a customizable colour effect with random animation Settings: customize the colours of the digital led strip. From the colour palette, you can set the foreground and background colour of the effect from a wide variety.
- Page 19 RUNNING-LIGHT User Manual Made in Italy DALI P ARAMETERS When DALI is selected as control type on Control Settings, the following section appears on LightApp © allowing to set the DALI parameters. Power-On Level: this is the intensity value to which the output is brought as soon as the device is powered.
