Bosch EasySpotLight 18V-400, 3 603 JA1 200 Manual

Safety instructions

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/ or serious injury.
Save all safety and general instructions for future reference.

• Handle the cordless worklight with care. The cordless worklight produces intense heat and requires cooling air from the surrounding environment. The covered cordless worklight can ignite or it may ignite other objects. This will result in a fire.
• Remove the battery from the cordless worklight before transporting or storing it. There is a risk of overheating and fire if the light switch is unintentionally pressed.

Keep the minimum distance between the cordless worklight and all illuminated surfaces and objects. Illuminated objects may overheat if this distance is not maintained.

NOTE: Do not look into the light beam for prolonged periods. The optical radiation may harm your eyes.

• Do not direct the light beam at other persons or animals. The light beam impairs vision and may damage your eyes.
• Do not continue to press the light switch after the cordless worklight has been automatically switched off. This can damage the battery. Ensure that the battery is charged and that the cordless worklight has cooled down before switching the cordless worklight on again.
• In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
•
  If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
•
  The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
•
  When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.
• Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

• Only charge the batteries using chargers recommended by the manufacturer. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery.
• Only use the battery in the manufacturer's products or in POWER FOR ALL system products. This is the only way in which you can protect the battery against dangerous overload.

Keep the cordless worklight away from implants and other medical devices, e.g. pacemakers or insulin pumps. The magnet inside the cordless worklight generates a field that can impair the function of implants and medical devices.

• Keep the cordless worklight away from magnetic data storage media and magnetically-sensitive devices. The effect of the magnet can lead to irreversible data loss.
• Do not fix the cordless worklight overhead using the magnetic mount. There is a risk of injury if it falls down.
• Check to ensure that the magnetic mount can securely hold the cordless worklight. There is a risk of injury if it falls down.
• Avoid dust accumulation at the workplace. Dust can easily ignite.
• Do not allow children to use the cordless worklight. Children can unintentionally blind themselves or other persons.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The cordless worklight is intended for temporary mobile illumination in confined spaces in domestic settings. The cordless worklight must not be left unattended when in operation. The cordless worklight is not permitted for use in road traffic.
External USB devices can be charged via the USB Type-C connection on the cordless worklight.

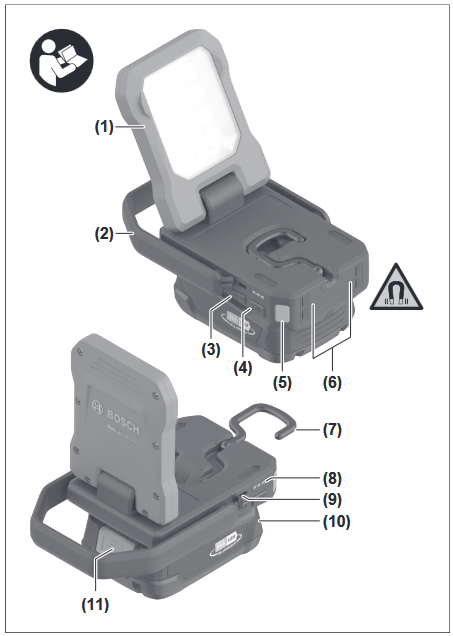

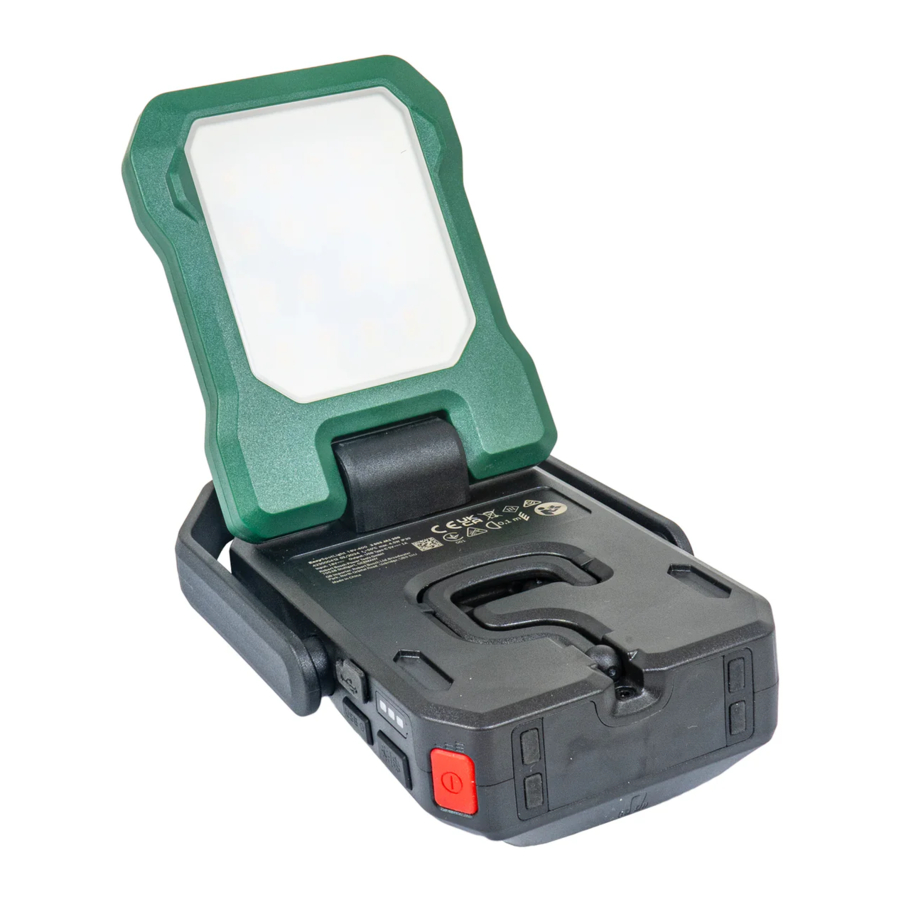

Product Features

1. Lamp head
2. Handle
3. USB button
4. Light temperature button
5. Light switch
6. Magnet
7. Hook
8. Battery charge indicator on the cordless worklight
9. USB Type‑C port
10. Rechargeable battery^a)
11. Battery release button^a)

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

^A) At full brightness (excluding remaining operating time in dimmed mode)
^B) Measured at 20–25°C with rechargeable battery PBA 18V 2.0Ah.
^C) Limited performance at temperatures < 0°C
^D) plus batteries and chargers for the POWER FOR ALL system
^E) The following chargers are not compatible with the PBA rechargeable battery: AL 1814 CV Professional, AL 1820 CV Professional, AL 1860 CV Professional, AL 2215 CV Professional
^F) The actual output current depends on the USB device connected and its electricity demand.

The colour rendition of illuminated objects can be distorted.

Rechargeable battery

Bosch sells some cordless worklights without a rechargeable battery. You can tell whether a rechargeable battery is included with the cordless worklight by looking at the packaging.

Charging the battery

• Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of cordless worklight.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Inserting the Battery

Push the charged battery into the battery holder until it clicks into place.

Removing the Battery

To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.

Battery Charge Indicator on the Unit

The following information is displayed:

Battery Charge Indicator on the Rechargeable Battery

Note: Not all battery types have a battery charge indicator.
The LEDs on the battery charge indicator on the rechargeable battery indicate the state of charge of the battery. For reasons of safety, it is only possible to query the state of charge when the cordless worklight is switched off.
Press the button for the battery charge indicator on the rechargeable battery to show the state of charge. This is also possible when the rechargeable battery is removed.

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.
Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example.
A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.
Follow the instructions on correct disposal.

Operation

Starting Operation

With the battery inserted, the cordless worklight is ready to use.

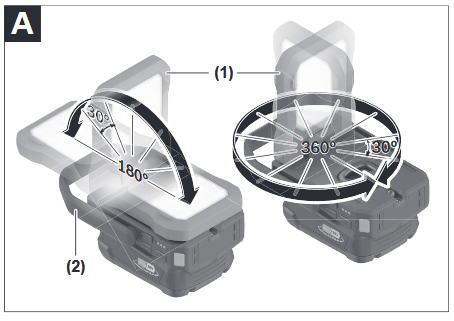

Setting up and adjusting the cordless worklight (see figure A)

Unfold the light head (1) and position the cordless worklight. Ensure the cordless worklight is positioned on a stable surface/object and is not too close to heat-sensitive or flammable objects.
The lamp head (1) can be turned to different positions and angled.

Temperature Dependent Overload Protection
If the permissible operating temperature is exceeded, the cordless worklight switches itself off. To continue using the cordless worklight, let it cool down.

Practical Advice

Carry the cordless worklight by its handle (2).
The light head (1) becomes hot during operation. Let the cordless worklight cool down before adjusting it or transporting it.
Do not leave the cordless worklight unattended while it is switched on.
The cordless worklight will flash three times just before it is about to switch off due to an empty battery.

Attaching the device

You can use the hook (7) and the magnet (6) to attach the cordless worklight to suitable objects.
Always check the worklight is positioned on a stable surface/object and is not too close to heat-sensitive or flammable objects.
Avoid scratching delicate surfaces.

Charging External USB Devices

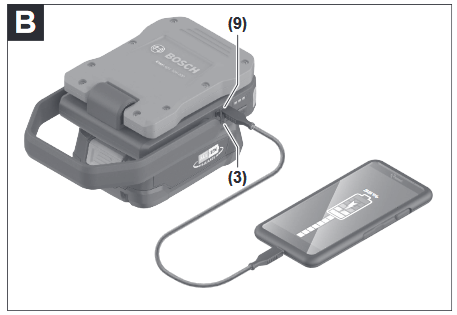

(see figure B)

• Ensure that your external USB device can be charged via the USB Type-C port on the cordless worklight. Refer to the relevant specifications in the "Technical Data" section.

Connect the charging cable of your USB device to the USB Type-C port (9). Press the USB button (3) of the cordless worklight to start the charging process.
The charging process is terminated as soon as a fully charged battery is detected. Disconnect the charging cable from the USB Type-C port (9) to preserve the battery of the external USB device.

Maintenance and Service

Maintenance and Cleaning

• Remove the battery from the cordless worklight before transporting or storing it. There is a risk of overheating and fire if the light switch is unintentionally pressed.

The cordless worklight is maintenance-free and does not contain any parts that need to be replaced or maintained.
Only clean the cordless worklight's plastic lens with a dry, soft cloth to prevent damage.
Do not use any detergents or solvents.
If the light source is defective, the entire cordless worklight has to be replaced.

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.
When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com

You can find further service addresses at:
www.bosch-pt.com/serviceaddresses
