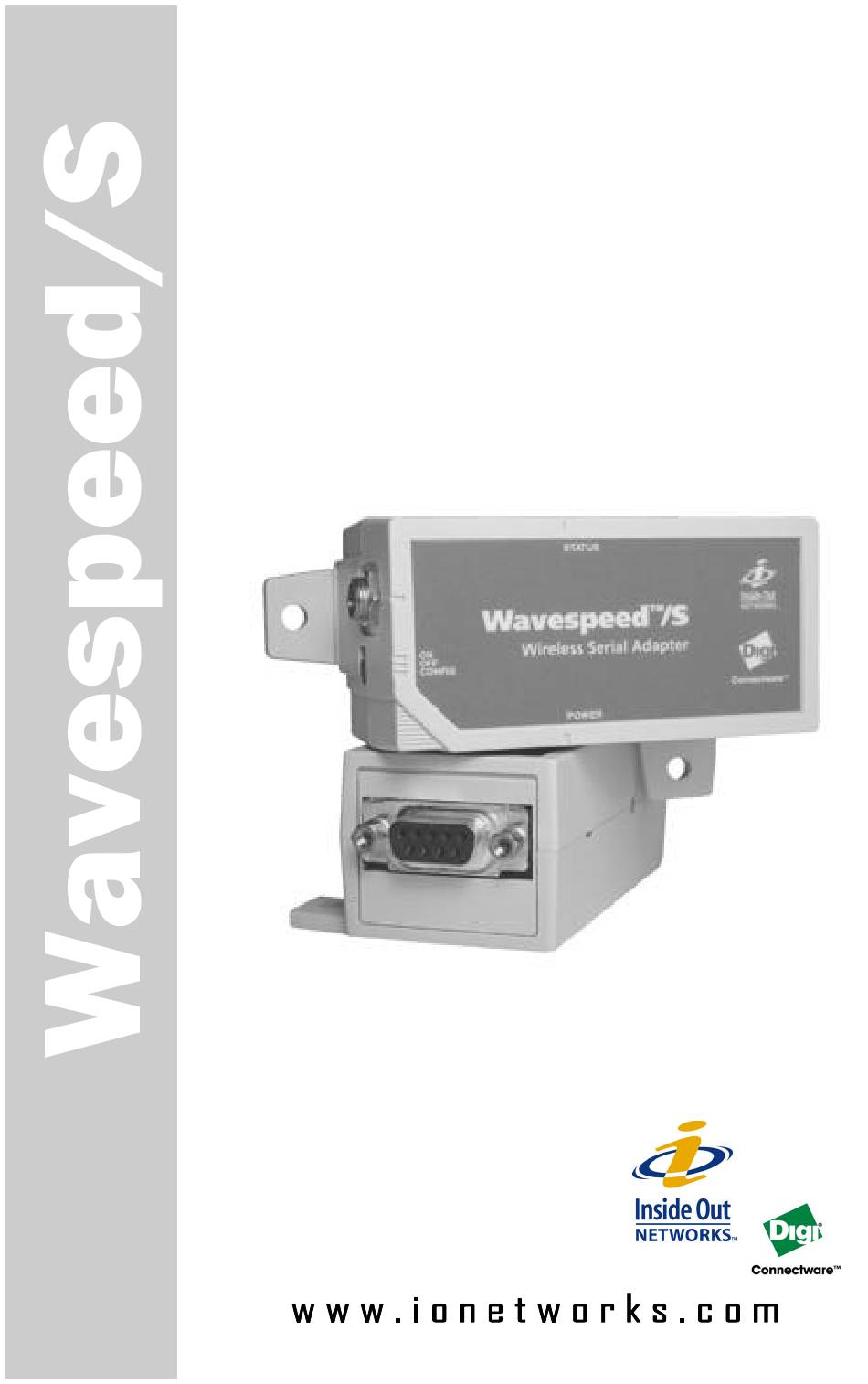

- Page 1 IRELESS ERIAL EVICE Configuration Guide...
-
Page 2: Table Of Contents
Table Of Contents Introduction..................1 Operating Modes................. 1 Preconfiguration................1 User Configuration................2 Serial Cable Replacement Configuration........2 Select COM Port ..............2 Discover Devices ..............3 Configure Local Port Settings..........3 Configure Remote Device Port Settings ......... 4 SPP Server Configuration ............6 Select COM Port .............. -
Page 3: Introduction
Wavespeed Introduction The Wavespeed/S provides an easy-to-use wireless data solution for legacy ap- plications providing a serial link (RS-232) to transfer data between devices or between devices and a host. The serial cable can be replaced with a Bluetooth wireless link that is transparent to the software application. Following initial con- ®... -
Page 4: User Configuration
User Configuration Serial Cable Replacement Configuration 1. Power both units and connect one to a serial port on your computer. 2. Place both units in con- figuration mode by slid- three-position switch to the far right, away from the power connector. -
Page 5: Discover Devices
Discover Devices Device Discovery and Bonding pairs two Wavespeed/S devices by creating a unique bond. Bonding ensures that the two Wavespeed/S devices will only con- nect to each other. Click the Search but- ton. The Configuration Wizard fills the list box with the names and addressed other... -
Page 6: Configure Remote Device Port Settings
a. Output Power Level: The output power level sets the transmit power Wavespeed/S, which allows you to adjust the range of Wavespeed/S. A higher output will allow Wavespeed/S communicate with devices within a lar- ger area. A lower output requires re- mote devices closer... - Page 7 configure the Output Power Level or the SPP Connection Status Sig- nal (if the remote port is configured as a DCE device) as in the previous screen. 18. When all selections are specified, click the Set Port Configuration button to send the settings to the remote device. 19.
-
Page 8: Spp Server Configuration
SPP Server Configuration Power the unit and connect it to a se- rial port on your computer. Place both units in configuration mode by sliding the three- position switch to the far right, away from power connector. Launch WvsdpCfg configu- ration utility. -
Page 9: Configure Local Port
Configure Local Port The next step is to specify the local device’s port emulation settings and type. In this step, you will specify how the Wavespeed/S device communicates over the COM port to the device it is attached to. In other words, if your application cur- rently sends data at 9600 baud with 8 data bits, 1 stop bit, no parity, and software flow control, you need to specify those settings for the Wavespeed/S. -
Page 10: Configure Local Device
Configure Local Device 11. You may give the device a unique device name. 12. Authentication: If au- thentication is enabled, the Wavespeed/S unit will only connect units that provide a matching PIN code as part of the authentica- tion process. The PIN code is case sensitive and may be any combi- nation of ASCII charac-... -
Page 11: Flash Update
Flash Update 17. Click the Save button to store the new settings. 18. Turn both Wavespeed/S units by sliding the three position switch to the middle posi- tion for two seconds. 19. Place the Wavespeed/S unit in the “On” mode, by sliding the three-position switch back to the left (toward the power con-... -
Page 12: Pin Outs
Pin Outs DTE Device: DCE Device: Direction Signal Direction Signal Input Output Input Output Output Input Output Input Input Output Output Input Input Output Input Output The fastest way to determine whether a device is a DTE or a DCE device is to check the voltage level on pin 2 of the DB-9 when the COM port is active. -
Page 13: Green Status Led
Green Status LED The green LED on the side of your Wavespeed/S shows the current condition of the unit. The conditions are listed in the table below. The application is not running. Make sure the device has power and the 3-way switch is not in the OFF position. -
Page 14: Regulation And Other Information
Regulation and Other Information © 2003-2004 Inside Out Networks, Inc. Digi, Digi International, the Digi logo, the Digi Connectware logo, Inside Out Networks, the Inside Out Networks logo and/S are trademarks or registered trademarks of Digi International, Inc. in the United States and/or worldwide. All other trademarks are the property of their respective owners. - Page 15 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a circuit different from the receiver. • Consult the dealer or an experienced radio/TV technician for help. Warning: The connection of a non-shielded interface cable to this equipment will invalidate the FCC Certification for this device.
- Page 16 EU standards and other flicker normative documents: Safety: IEC 950:1991 +A1, A2, A3, A4 European Contact EN 60950:1992 + A1, A2, A3, A4 Digi International Joseph-von-Fraunhofer Str. 23 The following summarizes the specifications 44227 Dortmund, GERMANY requirements EN55024:1998, 49-231-9747-0 EN55022:1998 Class B &...
- Page 17 Inside Out Networks A Digi International Company www.ionetworks.com 7004 Bee Caves Road Building 3, Suite 200 Austin, TX 78746 512-306-0600 ph 512-306-0694 fax info@ionetworks.com sales@ionetworks.com support@ionetworks.com Digi North America: 877-912-3444 Digi Europe: +49-231-9747-0 Digi Hong Kong: +852-2833-1008 info@digi.com 90000407 Rev B...
