Documentation Center
Installation Guide
Package Contents
Number
Name
1
Top Cover
2
Bottom Base
3
Gasket
4
Screw
Assembly Guide
1. Prepare the Lid and Gasket
First, install the rubber gasket in the groove of the top cover, as shown in Figure 2. Put the four corners of the
gasket into the groove, and then press the middle gently. Ensure that the gasket is not twisted.
Before assembly, check if the gasket is installed correctly. The rubber gasket helps seal the enclosure properly and
protects it from dust and water.

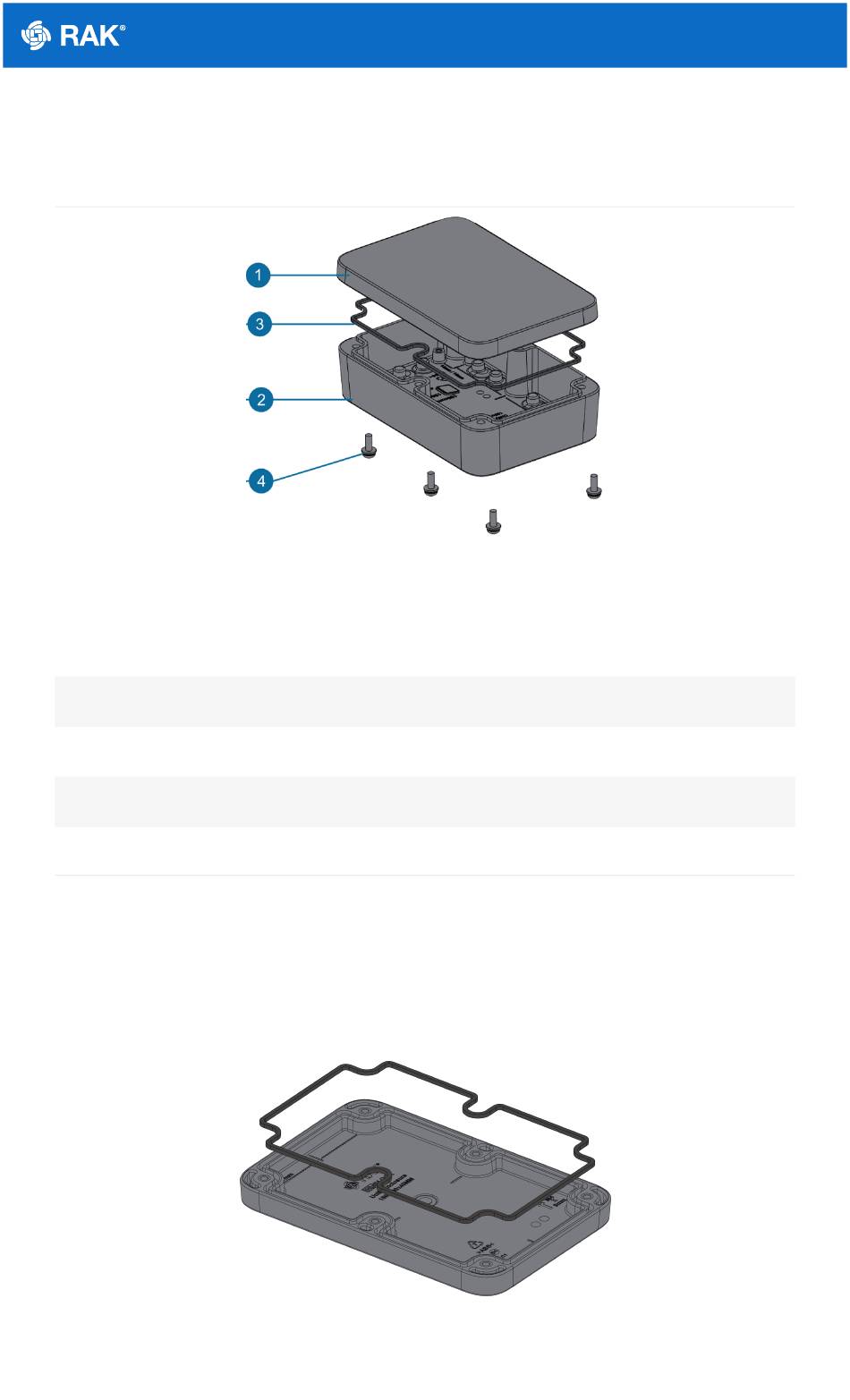

Figure 1: Medium WisBlock Unify Enclosure package content
Quantity
1
1
1
4-6
Figure 2: Installing the rubber gasket
Material
ABS UL94V-0
ABS UL94V-0
Silicone
Stainless steel
Color
White or Grey
White or Grey
Black
Advertisement
Related Manuals for RAK RAK5005-O
Summary of Contents for RAK RAK5005-O
- Page 1 Documentation Center Installation Guide Package Contents Figure 1: Medium WisBlock Unify Enclosure package content Number Name Quantity Material Color Top Cover ABS UL94V-0 White or Grey Bottom Base ABS UL94V-0 White or Grey Gasket Silicone Black Screw Stainless steel Assembly Guide 1.
- Page 2 Documentation Center 2. Choose the Internal Mounting Plate Next is to prepare the mounting plate. There are two types of mounting plates: Plain mounting plate WisBlock bespoke mounting plate Plain Mounting Plate The plain mounting plate has no holes, except for mounting holes to the enclosure. It is designed to be customized depending on the circuit board to be placed in the enclosure.
- Page 3 Documentation Center Figure 4: Cutting-out excess parts of the WisBlock Internal mounting plate RAK5005-O Figure 5: RAK5005-O WisBlock Base board cut-out area RAK19007...
- Page 4 Documentation Center Figure 6: RAK19007 WisBlock Base board cut-out area RAK19003 Figure 7: RAK19003 WisBlock Base board cut-out area RAK19001...
- Page 5 Documentation Center Figure 8: RAK19001 WisBlock Base board cut-out area 3. Screw the WisBlock to Internal Mounting Plate After cutting the Internal Mount Plate, install the WisBlock Base board onto the Internal Mount Plate with 2.2*5 mm self-tapping screws, as shown in Figure 9. Figure 9: Installing WisBlock Base board on Internal Mount Plate 4.
-
Page 6: Mounting Guide
Documentation Center Figure 10: Installing Internal Mount Plate to the enclosure 5. Cover the Enclosure with Lid Finally, close the WisBlock Unify Enclosure with the top lid using six (6) pieces of M4 x 8 mm head screw with a washer, as shown in Figure 11. - Page 7 Documentation Center Figure 12: Mount accessories marked with letters Figure 13: WisBlock Unify Enclosure marked with numerals Pole Mount Vertical (Type A) 1. For vertical pole mount, use two (2) pieces of mount accessories, which has an indicated mark of the letter A, as shown in Figure 14.
- Page 8 Documentation Center Figure 15: Fixing the pole mount on the enclosure Size Fix Position Medium 1 & 4 3. After fixing the mounts on the enclosure, place the WisBlock Unify Enclosure onto the pole by using two (2) steel strips (60-85 mm), as shown in Figure 16. NOTE The steel strips ONLY support 60-85 mm diameter of the pole.
- Page 9 Documentation Center 2. Fix the pole mounts marked with the letter C on the WisBlock Unify Enclosure using four (4) pieces of M3*8 mm Head screw with a washer. Place it on fixed positions between number 2 & 3 or 5 & 6 of the enclosure, in Figure 18.
- Page 10 Documentation Center Figure 20: Mount accessory marked with the letter D 2. Fix the wall mounts marked with the letter D on the WisBlock Unify Enclosure using four (4) pieces of M3*8 mm head screw with a washer. Place it on fix positions number 1 & 4 or 2 & 6 or 3 & 6 of the enclosure, as shown in Figure 21.
- Page 11 Documentation Center Belt Clip Mount (Type E) 1. For belt clip mount, use one (1) piece of mount accessory with an indicator marked with the letter E, as shown in Figure 23. Figure 23: Mount accessory marked with the letter E 2.
- Page 12 Documentation Center Figure 25: Fixing the enclosure on the belt clip DIN Mount (Type F) 1. For DIN mount, use two (2) pieces of mount accessories with an indicator marked with the letter F, as shown in Figure 26. Figure 26: Mount accessory marked with the letter F 2.
- Page 13 Documentation Center Size Size Fix Position Fix Position Medium 1 & 4 or 2 & 6 3. Lastly, clamp the buckle of the DIN mount kit at one end on the edge of the DIN rail, then rotate and press the enclosure to clamp the other end, as shown in Figure 29.
- Page 14 Documentation Center Size Size Fix Position Fix Position Medium 1 - 6 3. Place the magnets onto the mounting, as shown in Figure 32. NOTE Confirm the number of magnets according to the weight of the device. The medium and large unify enclosures support up to 6 magnets.
- Page 15 Documentation Center 4. Lastly, attach the unify enclosure to a metallic surface. Be careful not to pinch your fingers due to the high magnetism. Figure 33: Fixing the enclosure onto the metal surface Belt Loop Mount (Type H) 1. For belt loop mount, use two (2) pieces of mount accessories with an indicator marked with the letter H, as shown in Figure 34.
- Page 16 Documentation Center 3. Lastly, thread the belt through the hole of the unify enclosure, as shown in Figure 36. Figure 36: Fixing the enclosure on the belt thread Label Mount (Type I) 1. For label mount, use one (1) piece of mount accessory with an indicator marked with the letter I, as shown in Figure 37.
- Page 17 Documentation Center Figure 39: Label dimension Figure 40: Attaching the label on the enclosure Hook Loop Mount (Type J) 1. For hook loop mount, use one (1) piece of mount accessory with an indicator marked with the letter J, as shown in Figure 41.
- Page 18 Documentation Center Figure 42: Fixing the hook loop mount on the enclosure Size Fix Position Medium 1 or 4 3. Lastly, hang the unify enclosure directly on a hook. Figure 43: Fixing the enclosure on the hook Last Updated: 6/17/2023, 12:58:00 PM...
