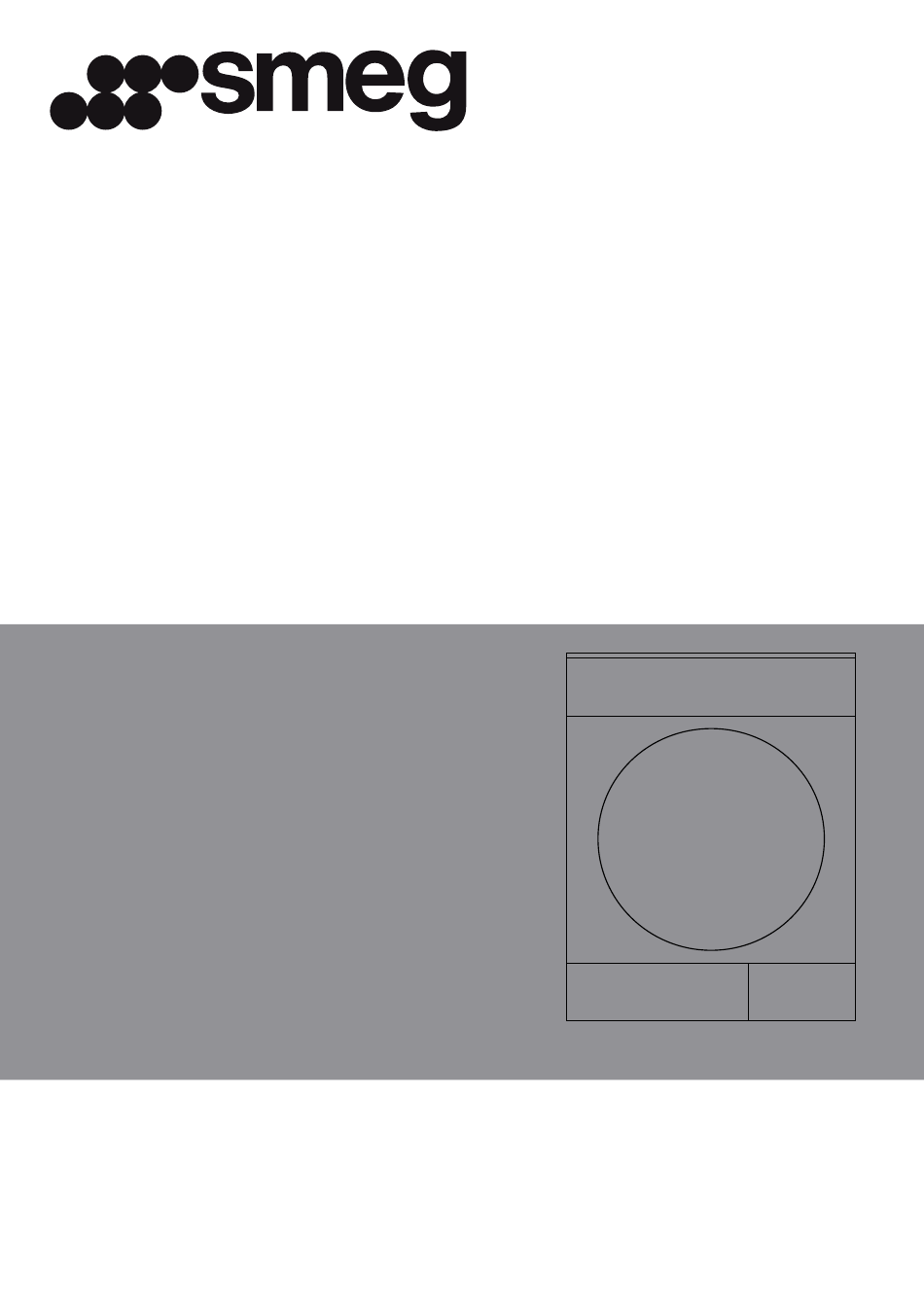

- Page 1 DHT71EUK-1 Dryer User Manual 2960312442/220819.2018...
-
Page 2: Please Read This User Manual First
Dear Customer, Thank you for prefering a Smeg product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 4: Product Safety
Important instructions for safety and environment The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. • Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. - Page 5 Important instructions for safety and environment Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self- combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.
- Page 6 Important instructions for safety and environment • You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect. Underwear that contains metal reinforcements should not be dried in the dryer.
-
Page 7: Mounting Over A Washing Machine
Important instructions for safety and environment 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. •... -
Page 8: Child Safety
Important instructions for safety and environment 1.4 Child safety • Packaging materials are dangerous for the children. Keep packaging materials away from children. • Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. -
Page 9: Compliance With Rohs Directive
Important instructions for safety and environment R290 is an flammable refrigerant. Thus, ensure that the system and the pipes are not harmed during operation and handling. Keep the product away from potential heat sources that may cause it to ignite in case of damage. Do not dispose of the product by putting it in fire. -
Page 10: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,7 cm Depth 58,9 cm Capacity (max.) 7 kg** Net weight (± 4 kg) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 11: Your Dryer
Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 11 / EN... -
Page 12: Appropriate Installation Location
Installation * Ignore following warning if your product’s Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical system does not contains R290. installation and water drain is appropriate referring to Dryer contains R290 refrigerant.* the user’s manual. - Page 13 Installation Connect one end of the drain hose supplied with Safety) the dryer to the connection point from where you 3.6 Transportation of the dryer removed the hose of the product in previous step. Unplug the dryer before transporting it. Connect the other end of the drain hose directly to Drain all water that has remained in the dryer.
-
Page 14: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 15: Correct Load Capacity
Preparation • Clean the filter drawer periodically when there is Following weights are given as examples. visible air collection on it or when the symbol lights Approximate weights Laundry up, if there is a filter drawer cleaning warning (g)* symbol available. •... -
Page 16: Operating The Product
Operating the product 5.1 Control panel Program selection knob Remaining duration indicator On/Off button Start/pause button End duration button Sound warning button 5.2 Screen symbols Tank Volume up Anti Filter Child-proof Mute full Creasing cleaning lock Dryer / User Manual 16 / EN... -
Page 17: Program Selection
Operating the product 5.3 Preparing the machine 5.5 Main programs Plug in the machine The main programs are given below based on fabric Place laundry inside the machine. type. Press the On/Off button. • Cotton When your machine turns on for the first time, Dry durable laundry with this program. - Page 18 Operating the product • Delicates You can dry your delicates suitable for drying or laundry that is recommended to hand wash (silk blouses, thin underwear etc.) in low temperature. It is recommended to dry your delicates in laundry bag to prevent wrinkles and damage.
- Page 19 Operating the product 5.7 Program selection and consumption table Spin speed in washing Approximate amount of Drying time Programs Capacity (kg) machine (rpm) remaining humidity (minutes) Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Shirts...
-
Page 20: Warning Symbols
Operating the product 5.8 Auxiliary functions Loading door open Start/Pause led blinks when the loading door of the Sound warning cancel drying machine is open. Drying machine makes sound warnings when the program is completed. If you don’t want sound 5.10 End duration notifications, press the “Sound Notification”... -
Page 21: Starting The Program
Operating the product 5.13 Changing the program after it is Canceling the end duration function If you want to cancel the end duration setting started countdown and start the program right away: After the machine starts running, you can change Cancel the program by pressing the On/Off button. -
Page 22: Program End
Operating the product 5.14 Canceling the program If you want to cancel the program and end the drying operation for any reason after the machine starts running, press the On/Off button. As it will be extremely hot inside the machine when you cancel the program while the machine is in operation;... -
Page 23: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 6.1 Cleaning Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. -
Page 24: Draining The Water Tank
Maintenance and cleaning To drain the water tank: Do not use metal tools when cleaning Pull the drawer and remove the water tank carefully. metal surfaces of the sensors. Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion! •... - Page 25 Maintenance and cleaning 6.4 Cleaning the filter drawer • Open the filter drawer by pressing the red button. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Clean the filter periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol «...
-
Page 26: Cleaning The Evaporator
Maintenance and cleaning Drying without the filter drawer sponge in place will damage the machine! A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption. 6.5 Cleaning the evaporator Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner. -
Page 27: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer may be blocked>>>clean the foam inside the filter drawer. • Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids. - Page 28 Troubleshooting End symbol is on. • Programme is over. Turn off the dryer and take out the laundry. Lint Filter Cleaning symbol is on. • Lint filter is not cleaned. >>> Clean the lint filter. Lint Filter Cleaning symbol is flashing. •...
-
Page 29: Electrical Connection
Electrical Connection Make sure that you have an earthed power outlet socket Important rated at 13 amps (minimum). Attention! If you use your dryer as built-in, the socket must be Fitting a different plug reachable after installation, or a separate switch (which As the colours of the wires in the mains lead of this can disconnect the two poles) must be used in the appliance may not correspond with the coloured... - Page 30 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 SMEG Supplier name or trademark DHT71EUK-1 Model name 7188234570 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 237,0 Annual Energy Consumption (kWh) Automatic Type of Control...
