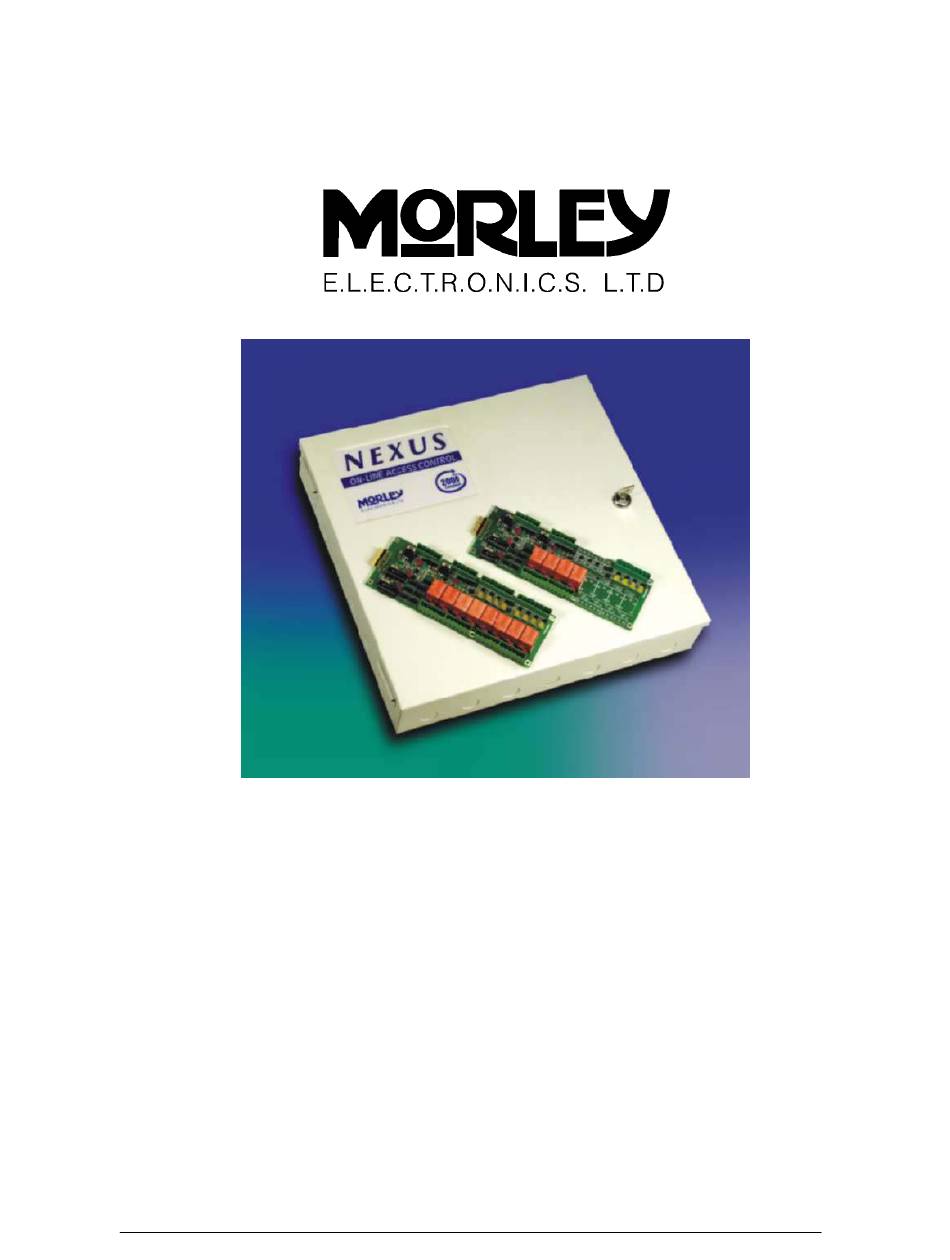

NEXUS Installation V1.04 - 15/10/02

NEXUS

Modular Access Control

NEXUS

MODULAR ACCESS CONTROLLER

INSTALLATION MANUAL

Page 1 of 49

Document Number CTD1000

Table of Contents

Need help?

Do you have a question about the NEXUS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MORLEY NEXUS Series

Page 2: Table Of Contents
Networked Nexus ________________________________________________________ 15 RS232 Networks ___________________________________________________ 15 RS485 Networks ___________________________________________________ 16 RS232/485 Converters ____________________________________________________ 16 Nexus systems cable specification and requirements Morley Free Topology Networks _________________________________________________________________ 17 Morley Free Topology Networks _______________________________________ 18 Using Echelon® Link Transceivers ___________________________________________ 18...
Page 3 Fitting Echelon Transceivers and Networks ____________________________________ 40 Applying Power______________________________________________41 Calculating Power Requirements_______________________________________ 42 Power Supply Current Requirement Example 1 ___________________________ 42 Power Supply Current Requirement Example 2 ___________________________ 44 Specifications _______________________________________________47 Technical Support____________________________________________49 Copyright © 2002 Morley Electronics Page 3 of 49 Document Number CTD1000...
Page 4 Fig. 24 Connection diagram, RS232/485 converter to PC ................38 Fig. 25 RS232/485 Converter Connections ....................39 Fig. 26 RS232/485 485 Module Connections ....................39 Fig. 27 RS485 Module Termination Connections..................39 Fig. 28 Nexus Power Input.........................41 Copyright © 2002 Morley Electronics Page 4 of 49 Document Number CTD1000...
Page 5: About This Manual
Visikey Management Software Nexus controllers are designed to operate with and be administered from, Morley’s Visikey Access Management software package. Visikey is a powerful and flexible software package operating on a wide range of Windows platforms. Copyright © 2002 Morley Electronics...
Page 6: Forward/Backward System Compatibility
Forward/Backward System Compatibility Nexus controllers are fully compatible with existing Visikey (ACS) systems and can be installed alongside existing Morley ISC4 controllers. Nexus will also run the advanced communications networks sometimes required, such as IEC or Echelon protocols. When retrofitting existing installations it is important to ensure that Visikey version 2.40 or later is installed for correct...
Page 7: Contact Details
IP ratings, resistance to abuse and operational temperature ranges are chosen. Morley offers a complete range of readers for all applications and user requirements; including vandal resistant and door entry panel mount readers and can be contacted for further information and advice.
Page 8: Nexus System Overview
These checks are the configuration and access rights for the user and may include the following considerations: • Does the card number on the card match a card in the database? Copyright © 2002 Morley Electronics Page 8 of 49 Document Number CTD1000...
Page 9 A PC administers the databases held in each of the controllers in the system controller network. Morley’s Visikey software package has been designed by Morley specifically for this task and has, over several years of use and development, become one of the most powerful and flexible packages of its kind available throughout the access control industry.
Page 10: Nexus Parts & Operation
Nexus Terminals & LED’s Nexus is designed with the engineer in mind. Therefore every reader input, contact input, relay output and communications connection is backed by visual LED confirmation of operation. Copyright © 2002 Morley Electronics Page 10 of 49 Document Number CTD1000...
Page 11: Nexus Power
The section ‘Applying Power’ (page 41), discusses power requirements in greater detail, as well as offering guidance on the estimation of system power requirements. Copyright © 2002 Morley Electronics Page 11 of 49 Document Number CTD1000...
Page 12: Dual Reader Module (Drm)
For details and/or specific reader technology queries, contact Morley Electronics. Interface to the reader is provided via a 6 way removable terminal block.
Page 13: Inputs - Clean Contact Monitors (Ccm)
Connection to the CCM should be carried out as illustrated below. Fig. 3 Clean Contact Inputs to Nexus DRM Copyright © 2002 Morley Electronics Page 13 of 49 Document Number CTD1000...
Page 14: Outputs - Relays
When switching inductive loads it is important that adequate transient suppression is installed. Morley includes in the Nexus kit, Metal Oxide Varistors (MOV) that are used to prevent back e.m.f. These effects are also known, as ‘spikes’ and the MOV will help avoid damage to the Nexus controller. The MOV suppression kits included with the controller for lock suppression should be installed as close to the lock as possible.
Page 15: Nexus Communications
Note however, that the connection length should not exceed 11m. Additional controllers will necessitate changing the RS232 connection to an alternate network structure, such as RS485 or Echelon. Fig. 5 RS232 Network Schematic Copyright © 2002 Morley Electronics Page 15 of 49 Document Number CTD1000...
Page 16: Rs485 Networks
PC. This is by far the easiest and safest way to connect the network to the administration PC. The converters are sent from Morley complete with housings and RS232 connection cables to the PC. Locate the converter as close as possible to the PC.
Page 17: Nexus Systems Cable Specification And Requirements Morley Free Topology Networks
4 or 8 clean contact Controller Inputs monitors per Module. Nexus Relay outputs 20AWG 200m 4 or 8 output relays. Controller 4A @ 12v or 24v Table 1 – Nexus Cable Specifications Copyright © 2002 Morley Electronics Page 17 of 49 Document Number CTD1000...
Page 18: Morley Free Topology Networks
Morley Free Topology Networks Using Echelon® Link Transceivers The Morley Free Topology Twisted pair module provides a simple, cost effective method of controller interconnection. Use of single pair polarity insensitive cable is employed in a free or bus topology. The use of free...
Page 19: Morley Free Topolgy Repeaters
In the event that limits on physical cable length or number of nodes are exceeded, a physical layer repeater can be use to interconnect 2 or more network segments. The Morley physical layer repeater can interconnect 2 to 6 network segments. The following drawing is a typical channel illustration utilizing a physical layer repeater.
Page 20: Transmission Specifications For Morley Free Topology Networks
The maximum total wire length is total amount of connected cable per segment. The Maximum number of Morley Electronics access controllers supported on any Echelon ® channel is 63. Copyright © 2002 Morley Electronics...
Page 21: Installation And Testing
Once the cabling is in place, re-fit the Nexus back plate using the four, machined nuts fixed to the four back plate studs in the Nexus enclosure. Copyright © 2002 Morley Electronics Page 21 of 49 Document Number CTD1000...
Page 23: Nexus Visual Indications & Controls
RCV - Data reception in progress is a flashing Red LED TXM - Data transmission in progress is a flashing Green LED PWR - Power present when illuminated with a steady Green LED Copyright © 2002 Morley Electronics Page 23 of 49 Document Number CTD1000...
Page 24: Dual Reader Modules
All comms modules are designed to operate without the need for installer modifications. For further details on particular types used and for status checks, please call Morley Electronics. Nexus Controller Fuses Two fuses located on the processor module provide power protection for the Nexus controller.
Page 25: Controller Addressing
(DIP Switch located on Processor Module) POWER UP BEHAVIOUR CLEAR DOWN RAM ON POWER UP NORMAL POWER UP PROTOCOL ALWAYS ON ALWAYS OFF Fig 12. Nexus Processor Module Dipswitch Settings Copyright © 2002 Morley Electronics Page 25 of 49 Document Number CTD1000...
Page 26: Dip Switch Programming
Switch 8 is used to clear the controller RAM on power up. As controllers are tested at Morley prior to being sent out, setting the switch to ‘off’ prior to being commissioned, would cause the controller to attempt to re-use the test data, thereby causing controller malfunction.
Page 27: Reader Module Layout
12Vdc / 5Vdc RELAY A N/O READER A CLOCK / DATA 1 DATA / DATA 0 GREEN LED RED LED 12Vdc / 5Vdc Fig 14. DRM Input/Output Layout Copyright © 2002 Morley Electronics Page 27 of 49 Document Number CTD1000...
Page 28: Reader, Contact Input And Relay Output Assignments
Relay Output 32 Table 4 DRM Input & Output Configuration Options Default Assignments and Installer Connections To further ease programming and commissioning, Morley has included a set of default assignments, which correspond with the most often-used configuration settings for Nexus control systems.
Page 29 3 second door operation on REM or card with 20 second ‘door open’ alarm. These timings and programs are not fixed and can be changed via Visikey administration software to suit the installation. Copyright © 2002 Morley Electronics Page 29 of 49 Document Number CTD1000...
Page 30: Reader Interface Operation And Connection
Watermark ABA Track 2 This is not an exhaustive list and Morley is often asked to supply systems for site upgrades, where the adoption of existing cards and tokens is a requirement either as a permanent arrangement or as a temporary measure, as readers and tokens are exchanged.
Page 31 The reader interfaces will support most readers but if you are in any doubt as to the suitability of a reader, contact Morley Electronics Technical Support. Copyright © 2002 Morley Electronics Page 31 of 49...
Page 32: Reader Voltage Selection
12V and 5V reader supply voltages as shown in the diagram below. Fig. 16 Reader Voltage Selection NOTE that the application of an incorrect supply voltage to a reader may cause permanent damage to the reader. Copyright © 2002 Morley Electronics Page 32 of 49 Document Number CTD1000...
Page 33: Reader Connections In Nexus
HID Proximity Readers HID proximity readers are available with both Wiegand and track 2 interfaces, however readers from Morley are supplied with a Wiegand interface as standard. All readers in the HID range are fully supported by Nexus. The diagram below shows typical wiring for ProxPoint, MiniProx, ProxPro, and VandalProx and PanelProx readers.
Page 34: Motorola/Indala Readers
Nexus controllers support all MR Sensors Track 2 readers, however some keypad versions need modification for correct LED operation. We advise customers wishing to utilise card and keypad versions to contact Morley Electronics before purchasing readers. The diagram below shows standard interconnection wiring for a 5132B magstripe reader.
Page 35: Pac Proximity Readers
• Slimline 20595/20596 • Vandal Resistant 20378/20388/20688/20683 To check the suitability of other readers in the PAC range please contact Morley technical support. Standard wiring interconnection for PAC readers is shown in the diagram below. PAC READERS DATA1 DATA0 GREEN LED 12VDC Fig.
Page 36: Rs422/485 Nexus/Pc Network Interconnection
4 x RS485 networks can be installed on each PC. The following diagram re-visits the Nexus network structure. Installers should always remember to link cable shields together within the RS485 comms modules. The shields ‘float’ between modules. Copyright © 2002 Morley Electronics Page 36 of 49 Document Number CTD1000...
Page 37 CHAIN TOPOLOGY AND MUST NOT BE SPURRED. Part No. 104008 Pentium PC 1M Interface cable to convertor, supplied by Morley. Female 9 way 'D' RS232/422 Convertors connector to PC RS232 Port, with flying Note: Convertors are placed lead cores x 3. Connects to 104008...
Page 38: Rs232/485 (Md-42) Converter Connections
The comms module male cable connector should be made off and pushed to the female socket of the comms module to terminate the network to the 485 comms module. Copyright © 2002 Morley Electronics Page 38 of 49 Document Number CTD1000...
Page 39: Rs422 Line Connection
NEXUS Installation V1.04 - 15/10/02 NEXUS Modular Access Control RS422 Line Connection The RS422 Line connection from the converter to the Morley 485 Interface module is as follows: - At the converter, POWER LINE SHIELD MD-42 RS232/ BLACK 422 Converter...
Page 40: Nexus Rs485 Network Cable Testing
Fitting Echelon Transceivers and Networks The installation and fitting of Echelon networks and transceivers is a specialist task, which should be carried out in conjunction with Morley Technical Support. For details of Echelon networks and cabling, please see the Echelon network overview earlier in this manual, or contact Morley Electronics.
Page 41: Applying Power
Nexus micro controller. Nexus does not carry an on-board power supply and is therefore reliant upon outside power to provide the necessary supply. Morley recommends that a (Part No. 109002) 1.5A psu be purchased for each Nexus controller. This rating is enough to power a fully loaded (i.e.
Page 42: Calculating Power Requirements
(8 x 35mA) + (4 x 50mA) (8 x 0.035A) + (4 x 0.050A) 0.28A + 0.2A 0.48A So, 0.48A is required just to power the relays and the readers. Copyright © 2002 Morley Electronics Page 42 of 49 Document Number CTD1000...
Page 43 So, we would require a power supply capable of supplying at the very least 0.63A for this system. NOTE: THIS DOES NOT INCLUDE THE CURRENT REQUIREMENT FOR DOOR LOCKING MECHANISMS, WHICH SHOULD ESTIMATED SEPARATELY. Copyright © 2002 Morley Electronics Page 43 of 49 Document Number CTD1000...
Page 44: Power Supply Current Requirement Example 2
(36 x 35mA) + (10 x 50mA) (36 x 0.035A) + (10 x 0.050A) 1.26A + 0.5A 1.76A So, 1.76A is required just to power the relays and the readers. Copyright © 2002 Morley Electronics Page 44 of 49 Document Number CTD1000...
Page 45 So, we would require a power supply capable of supplying at the very least 2.96A for this system. NOTE: THIS DOES NOT INCLUDE THE POWER REQUIREMENT FOR DOOR LOCKING MECHANISMS, WHICH SHOULD BE CALCULATED SEPARATELY. Copyright © 2002 Morley Electronics Page 45 of 49 Document Number CTD1000...
Page 47: Specifications
4 or 8 clean contact monitors CCM cable 20 AWG 250m Maximum Relay Outputs 4 or 8 change over contacts Relay Switching current 4A @ 12v or 24v Copyright © 2002 Morley Electronics Page 47 of 49 Document Number CTD1000...
Page 49: Technical Support
+44 (0) 191 257 6355 Fax: +44 (0) 191 257 6373 Email: tech@morleyuk.co.uk Web: www.morleyuk.co.uk Morley Electronics Limited Morley House West Chirton North Shields Tyne & Wear NE29 7TY England Copyright © 2002 Morley Electronics Page 49 of 49 Document Number CTD1000...
