VTX Pilotix 4.9G 3W Manual

Pilotix 4.9~6.2G 3W
Model
DC IN
Working temperature
RF Impedance
Video Input Impedance
Antenna Interface
Video Format
Protocol
Channel
Power
Size
Mounting

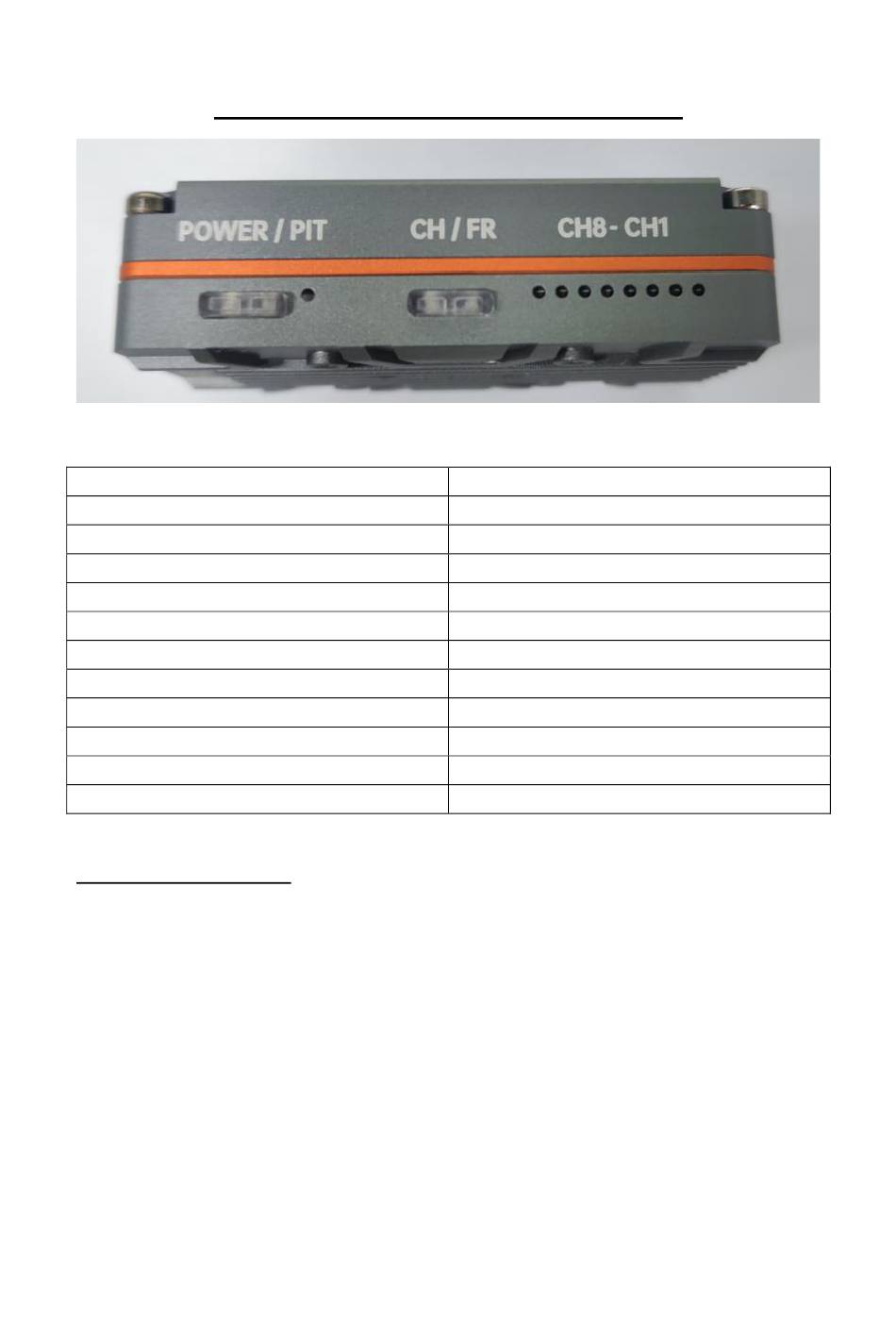

Button Instructions
POWER Button：
Three color light indicator, short press to switch power, green indicates 25mW, yellow indicates
1W, red indicates 2W, purple indicates 3W, long press for 2S to switch PIT mode, green flashing
indicates PIT mode.
Band/CH Button：
8 blue lights indicate frequency points and frequency groups, short press to switch frequency
points, CH1-CH8 cycle switching;
Press and hold for 2 seconds to enter the frequency group switching mode, and both blue lights
will light up at the same time. Then press and hold for 5 seconds to switch frequency groups, and
it will automatically save and exit. (Explanation of frequency group indicator lights: CH1-CH8:
When two blue lights are on at the same time, it indicates frequency group. When 12 lights are on,
it indicates group A; when 23 lights are on, it indicates group B; when 34 lights are on, it indicates
Pilotix 4.9~6.2G 3W VTX
7~36V
-10~60℃
50Ω
75Ω
MMCX
NTSC/PAL
TBS SmartAudio
A-B-E-F-R-L-X-Y
PIT/25mW/1W/2W/3W
53*29.5*14.7mm
20*20mm/M2
