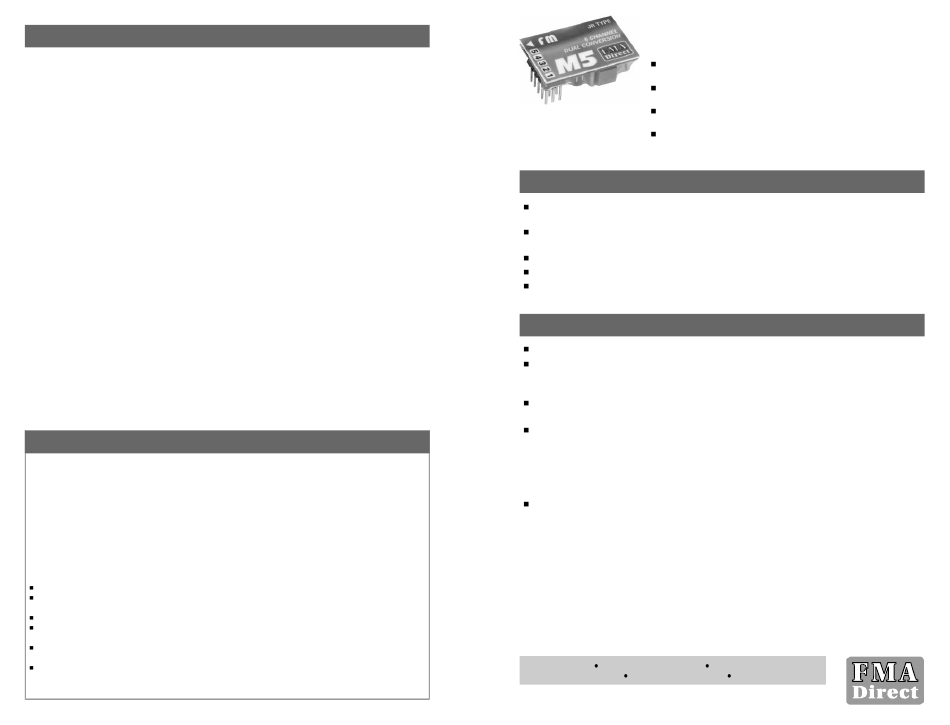

FMA Direct M5 Manual

4
M5 Receiver specifications
Size 1.30 inches x 0.80 inches x 0.58 inches
Weight 0.30 ounces (9 grams)
Type Dual conversion, super heterodyne
Decoding Microprocessor-based decoder
Channels 1-5
Modulation FM / PPM (pulse position modulation)
Ultimate bandpass ±8.5kHz at >55dB down
Usable sensitivity > -95dBm
3OIP +9dBm
Operating voltage +3.5 to +16VDC (limited only by servo requirements)
Legal use Meets AMA guidelines and FCC 1999 radiation requirements
FCC Information FCC ID: KH8-T2000. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions: 1) This device may not cause
harmful interference, and 2) this device must accept interference received,
including interference that may cause undesired operation.
Frequencies Models 805FM72F and 805FM72J: U.S. RC aircraft channels 11-60
Models 805FM50FJ and 805FM50ACE: 50MHz ham band
Models 805FM53FJ and 805FM53ACE: 53MHz ham band
FMA limited warranty for receivers
FMA, Inc. warrants this product to be free of manufacturing defects for the term of one year from the date of
purchase. Should any defects covered by this warranty occur, the product shall be repaired or replaced with a
unit of equal performance by FMA or an authorized FMA service station.
Limits and exclusions
This warranty may be enforced only by the original purchaser, who uses this product in its original condition as
purchased, in strict accordance with the product's instructions. Units returned for warranty service to an FMA
service center will be accepted for service when shipped postpaid, with a copy of the original sales receipt or
warranty registration form, to the service station designated by FMA.
This warranty does not apply to:
Consequential or incidental losses resulting from the use of this product.
Damage resulting from accident, misuse, abuse, neglect, electrical surges, reversed polarity on connectors,
lightning or other acts of God.
Damage from failure to follow instructions supplied with the product.
Damage occurring during shipment of the product either to the customer or from the customer for service
(claims must be presented to the carrier).
Damage resulting from repair, adjustment, or any alteration of the product by anyone other than an authorized
FMA technician.
Installation or removal charges, or damage caused by improper installation or removal.
Call (301) 668-4280 for more information about service and warranty repairs.
M5 Sub-Micro Receiver
for Aircraft
Model 805FM72F for use with 72MHz negative shift transmitters
(Futaba/Hitec)
Model 805FM72J for use with 72MHz positive shift transmitters
(JR/Airtronics)
Model 805FM50FJ and 805FM53FJ for use with newer (positive
shift) ham band (50 or 53MHz) transmitters
Model 805FM50ACE and 805FM53ACE for use with older
(negative shift) ham band (50 or 53MHz) transmitters
Features
Full range, full performance. Can be used in aircraft ranging from park flyers to IMAA-legal
aircraft to helicopters.
Available with either negative shift (for Futaba, Hitec transmitters) or positive shift (for JR,
Airtronics transmitters).
Dual conversion, narrow band, PPM.
Digital filtering improves noise immunity.
"Last good frame hold" stabilizes servos when interference is present.
Safety precautions
Follow all instructions in this manual to assure safe operation.
If you have not assembled and operated a radio controlled model before, obtain help from an
experienced modeler. You will need guidance to successfully assemble, test and operate radio
controlled models. One of the best ways to obtain help is to join your local radio control club.
In some areas of the country, you cannot legally operate radio controlled models except at
approved fields. Check with local authorities first.
Observe frequency control. If someone else is operating a radio controlled model on the same
channel as your transmitter, do not turn on your transmitter—even for a short time. Your
transmitter has a channel number marked somewhere on its case. When a model receives
signals from two transmitters on the same channel at the same time, it cannot be con-
trolled and will crash—possibly causing personal injury or property damage. For safety,
most RC flying fields have formal frequency control rules. Follow them carefully.
Do not operate your radio control transmitter within 3 miles of a flying field. Even at a dis-
tance, your transmitter can cause interference.
FMA, Inc. 5713 Industry Lane, Suite 50
Sales: (800) 343-2934 Technical: (301) 668-4280
User Guide Version 5.0, 5/17/04
Frederick, MD 21704
www.fmadirect.com
