Summary of Contents for Uplus Lighting LED FOLLOW SPOT 1000

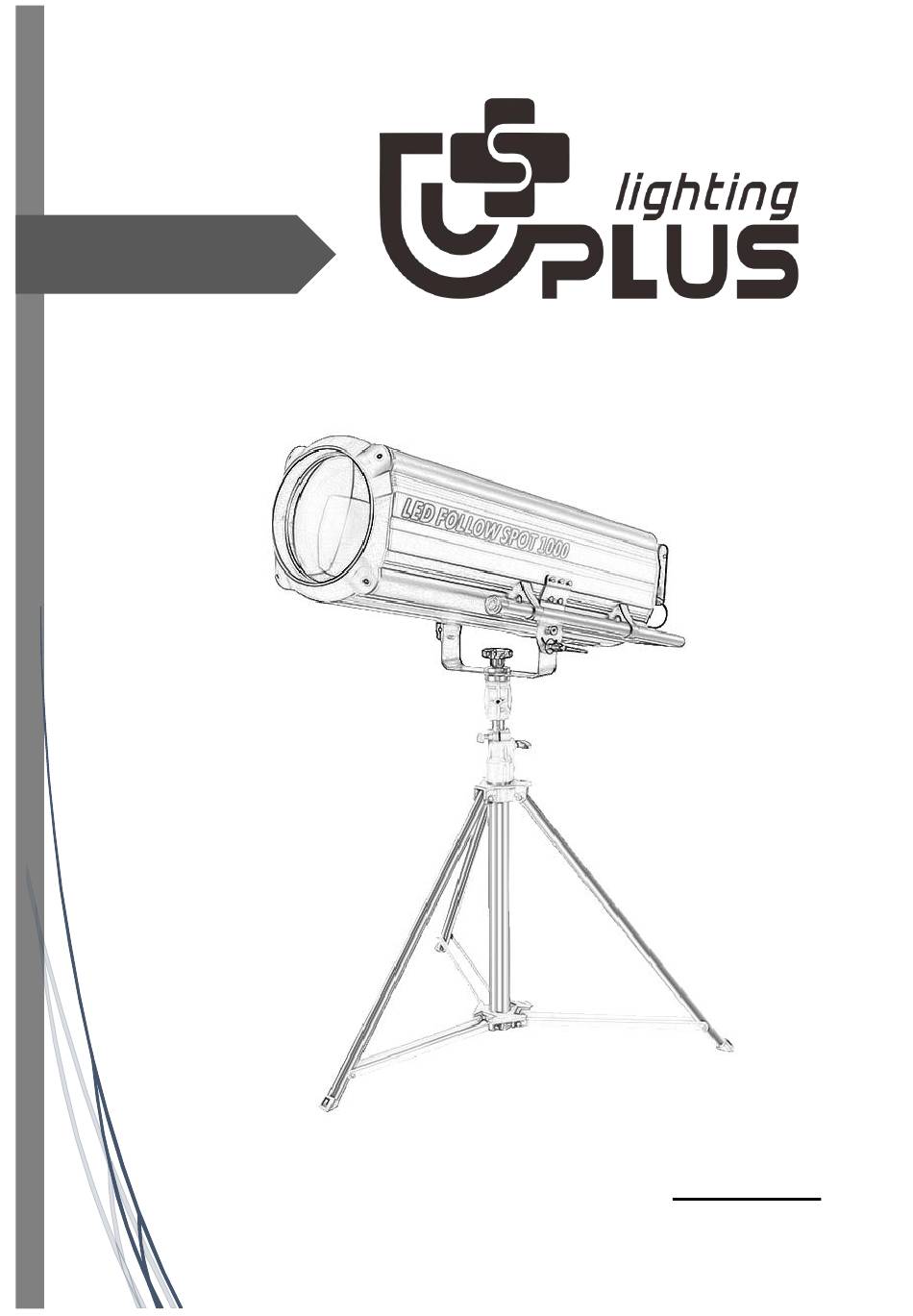

- Page 1 User manual FP1000 Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions………………………………………………………………………………3 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-8 DMX Channels …………………………………………………………………………………9-12 LUX Date …………………………………………………………………………………………13 Dimension …………………………………………………………………………………………14 Trouble Shooting…………………………………………………………………………………15 Fixture Cleaning………………………………………………………… ………………………15 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
-
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
2.Technical Specifications Source:1000W 8500K high power white led Voltage:100~240V,50/60Hz Power:1100W Beam angle:6-10 degree Color temperature adjustable:6000K,4500K,3200K CRI>90 0-100% linear dimmer It has six color changes: Red, Green, Blue,White,Yellow and Orange DMX Channel: 8 CH Dimension: 1205*375.5*333.2 cm NW:38 KG Light fixture structure is made of aluminum alloy materials, good cooling system ensures the safe, continuous and stable work. -
Page 5: Dmx Channels
Button Function Black switch Power on/ power off White Select white color Select Red color Yellow Select Yellow color Blue Select Blue color Green Select Green color Orange Select Orange color Dimmer Set dimming value Select color temperature Iris Adjust the aperture Strobe Strobe effect Zoom... -
Page 6: Troubleshooting
5.Dimension 7.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 7: Fixture Cleaning
1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition 8.Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output.
