Summary of Contents for TBB power GY485

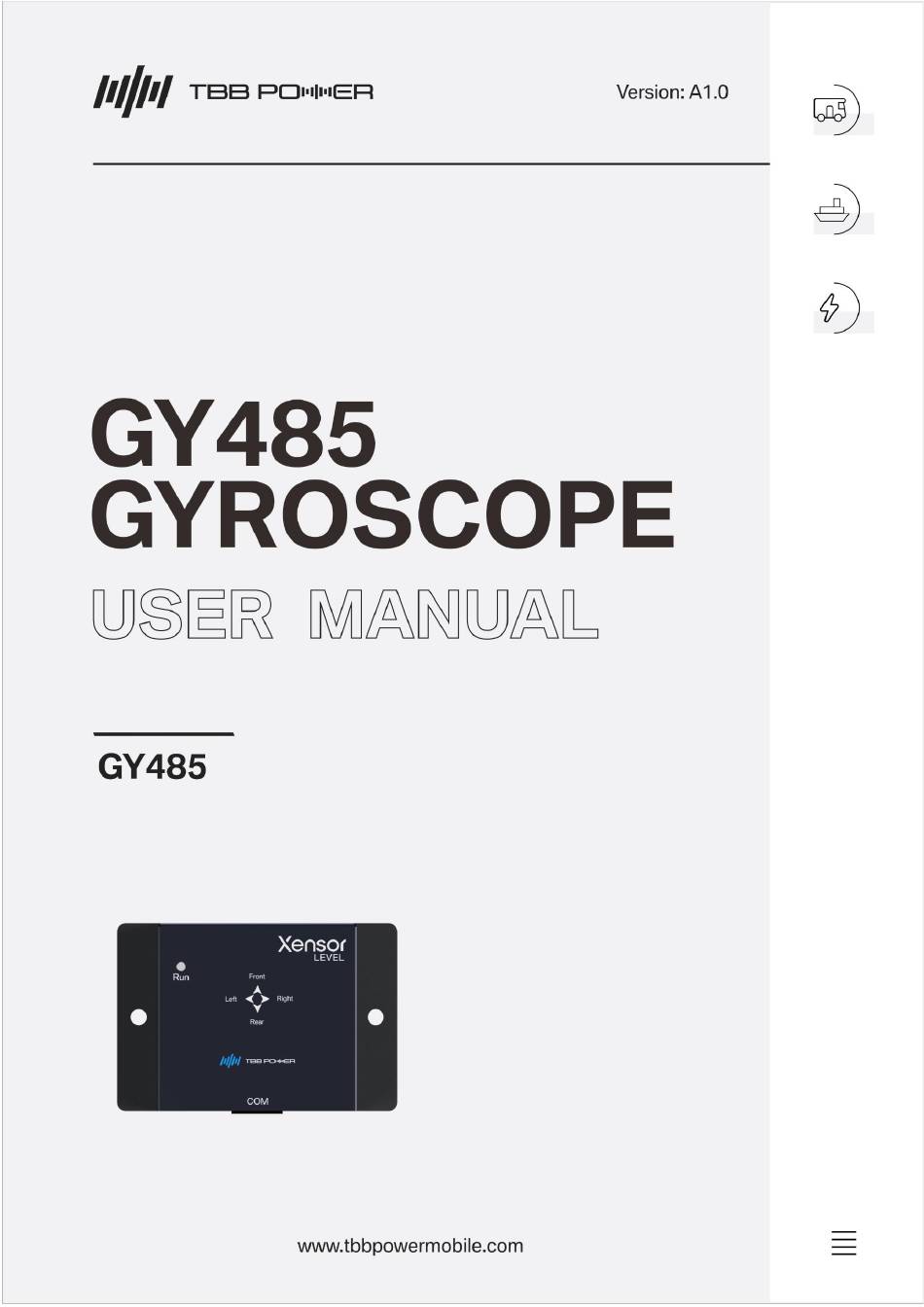

- Page 1 GY485 Gyroscope User manual...
- Page 2 GY485 Gyroscope User manual Preface Thanks for choosing our products and this manual is suitable for gyroscope GY485. This manual contains important safety and operation instructions. Read it before any operation/installation and keep it well for future reference. Product installation and maintainence need to be conducted by a well trained technician or electrician.
-
Page 3: Table Of Contents
GY485 Gyroscope User manual Content 1. General Safety Instruction ....................1 1.1 Safety instruction ....................1 1.2 General Precaution ....................1 2. Product introduction ......................2 2.1 General introduction ....................2 2.2 Features ........................2 2.3 Product outlook ...................... 2 3. -
Page 4: General Safety Instruction
GY485 Gyroscope User manual 1. General Safety Instruction 1.1 Safety instruction ➢ Please read this manual and remark, sticker on product before installation or operation ➢ Please abide by required electrical safety procedure and requirement to prevent any damage or injury. Safety instruction in this manual is not equal to these safety procedure and requirement ➢... -
Page 5: Product Introduction
2. Product introduction 2.1 General introduction GY485 is a device for leveling measurement. With data acquired by gyroscope and sensor integrated into product, plus unique algorithm to provide user accurate angle or position information. The information is transferred to monitor via RS485 communication. GY485 is with reliable design to work in different conditions environment. - Page 6 GY485 Gyroscope User manual Fig.2-2 Produce dimension (Unit:mm)
-
Page 7: Installation
GY485 Gyroscope User manual 3. Installation 3.1 Open box ➢ Only open product box before installation, and please check if box is in good condition before you open it ➢ Take product out of box in a careful manner ➢... -
Page 8: Installation Hole
GY485 Gyroscope User manual 3.2 Installation hole Installation must be onto a flat surface, and drill holes as below dimension Fig.3-1 Hole dimension (Unit: mm) 3.3 Fix Please use M5 screw to fix product properly... -
Page 9: Operation
GY485 Gyroscope User manual 4. Operation 4.1 Check item before operation 1) Check if input voltage meets product request; or it will cause damage to product. Please contact TBB or TBB’s re-seller if any question to voltage 2) Check if cables are connected correctly before product get power 3) Check if cables are fixed well. -
Page 10: Specification
GY485 Gyroscope User manual 5. Specification Model No GY485 Rated voltage 9-16VDC Communication RS485 Rated current ≈11mA Working temperature -40℃~65℃ Certificate EN61000-6-3 EN50498:2010... - Page 11 GY485 Gyroscope User manual...
- Page 12 GY485 Gyroscope User manual...
