Eclipse 500.030 Installation Instructions

Please read instructions carefully.
This product should only be installed by a qualified electrician
Please retain these instructions for future reference.
SPECIFICATIONS
• Cast aluminium outdoor fitting, toughened glass lamp cover, mounting bracket, and spike.
• Supply: 240V/AC, 50Hz
• Lamp type: GU/GZ10 240V Max 50W
• Protection against electric shock: Class 1 - therefore must be earthed.
• Supply Cable (complete with 2m cable and connection box, supplied): use 3 x 1mm2
conductors.
• Temperature Range: -20° <to< +40°C
• Ingress Protection: IP68
TO BEGIN INSTALLATION
• Ensure mains supply is switched off.
• For safety, and in order to avoid unexpected damage to the product, please install a safety
device when installing this product, for example, a two-pole fused 6Amp switch, etc.
• Make connection to the electrical supply in accordance with the following code: the terminal
connector is located in the square connection box, supplied (attached to cable).
LIVE – Brown or Red.
NEUTRAL – Blue or Black.
EARTH – Green and Yellow.
• Ensure that a minimum distance of at least 300mm between the light and any flammable
surface.
Installation Instructions

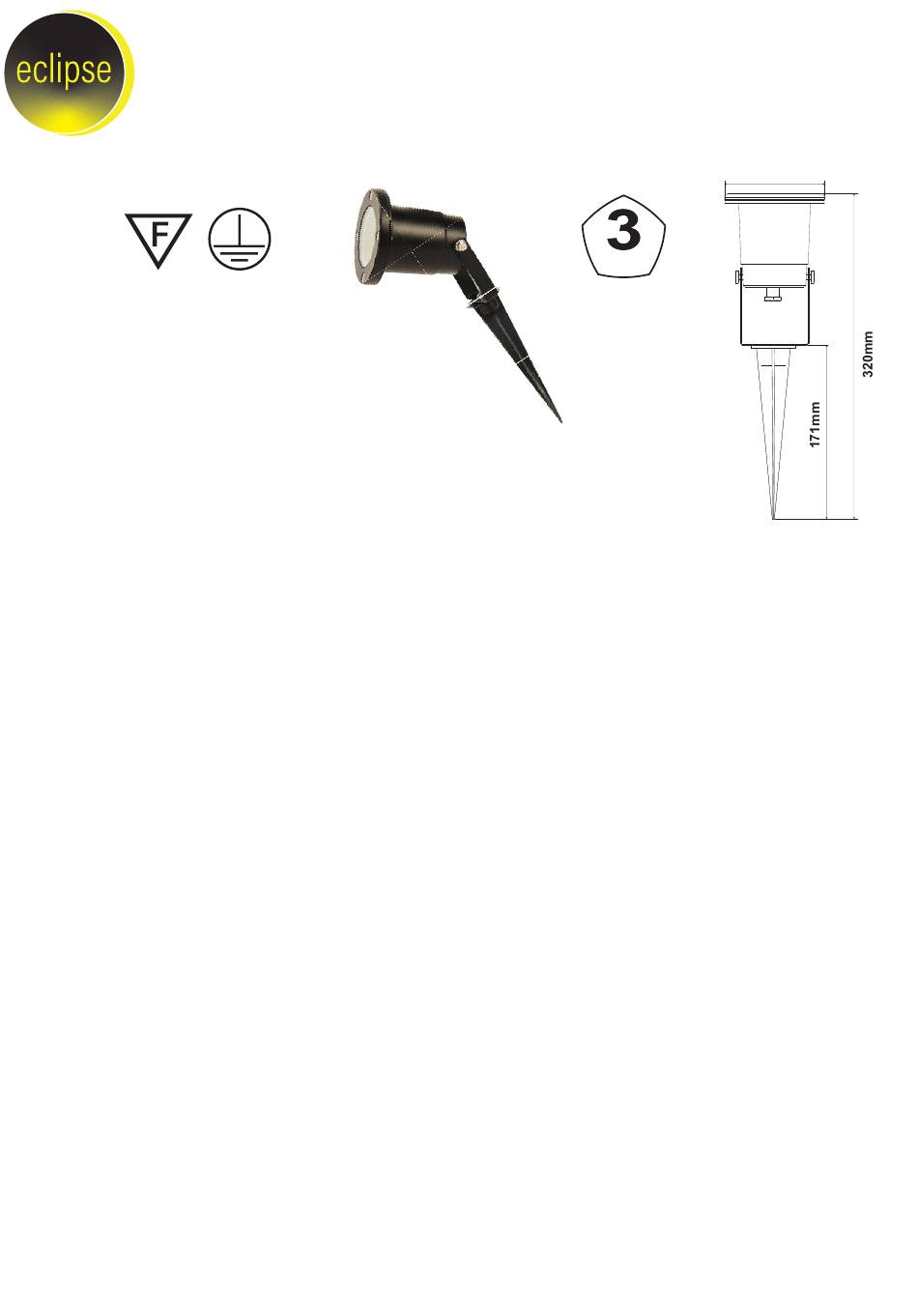

Exterior Spike Spotlight 240V
PRODUCT CODE: 500.030
Ø98mm
