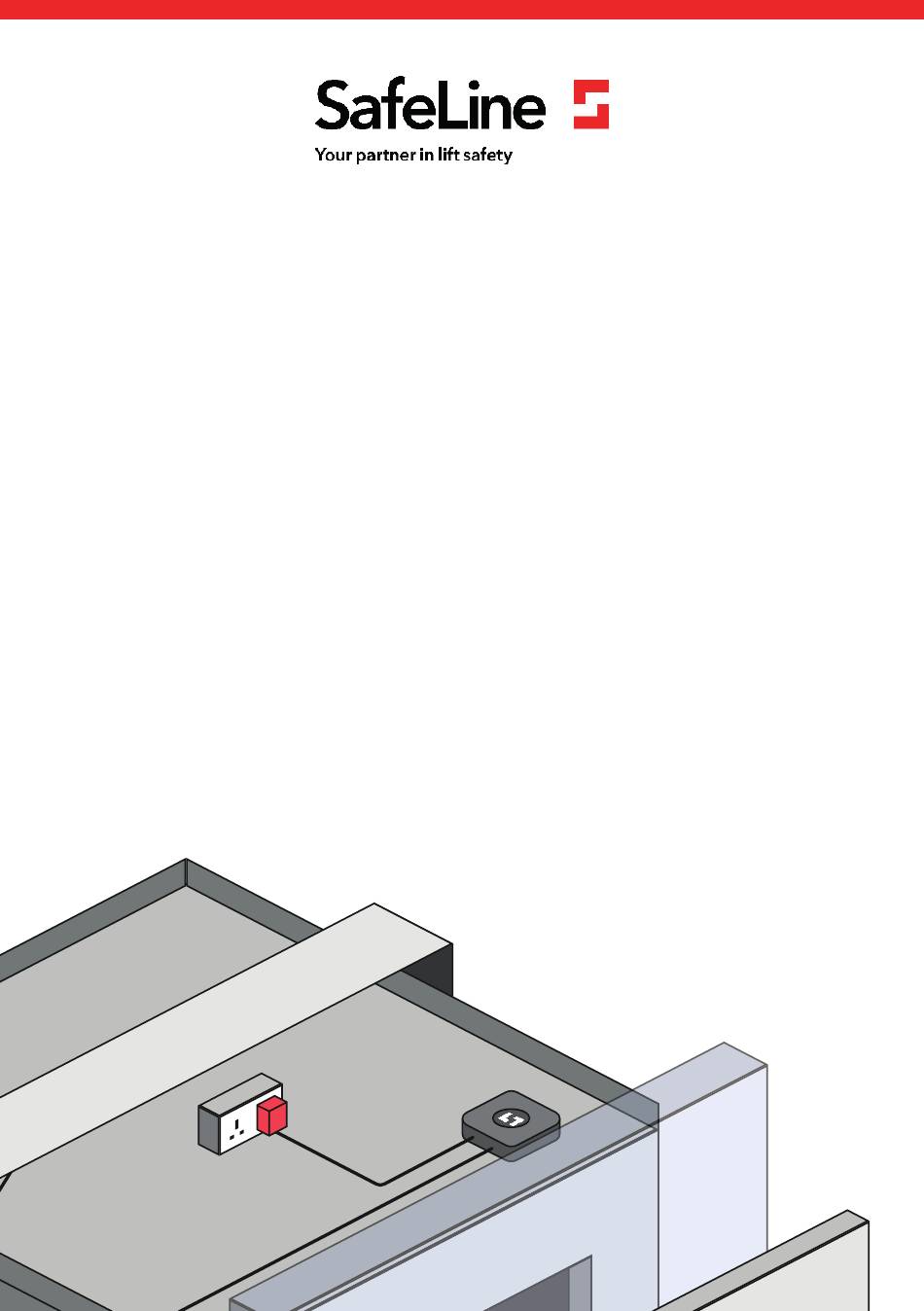

- Page 1 7-step guide to LYRA installation...
- Page 2 Please note: • Only connect LYRA to power source after door sensor/s has been installed and when sure all cables have suffi cient reach from LYRA’s position. • Avoid unplugging power source during installation. • Avoid RCD type socket. Before installation, an email address for the...
- Page 3 • Unpack LYRA and note the serial number to its respective lift.
- Page 4 • Secure LYRA to car top using screws provided. • Avoid installing LYRA to car frame steel work.
- Page 5 • Connect door sensor to LYRA. • The sensor should be located at the furthest point away from the door motor to avoid interference.
- Page 6 230v • Connect LYRA to power source (230v) • Avoid RCD type socket...
- Page 7 Install the magnet to the rear of the car door. For two-panel side opening, install the magnet to rear of the slow door. Door sensor installed to far end of car door header. In the fully open position, the magnet must not pass the sensor.
- Page 8 Device ready for app setup only when: • Left hand LED 1: *Pulsing Green*, with • Right hand LED 4: *Solid Green* (Warm up usually takes less than 5 minutes)
- Page 9 1. Put lift into normal service. 2. From within the lift car, position lift on bottom fl oor. 3. Open SafeLine LYNX II app on your phone or tablet. Pair the LYRA device with your lift and press Manual Training. 4. Follow steps on screen.
- Page 10 • Press the 3 dots to connect to the LYRA device via Bluetooth.
- Page 11 • Select Lift monitoring.
- Page 12 • Check that the door sensor is configured. Select Auto Detect if blank.
- Page 13 • Press Car tracking...
- Page 14 • Press Manual training...
- Page 15 • Follow instructions on screen • Press Start, then take lift to all floors up, then once at top floor, travel one floor down.
- Page 16 Within Device status, you can find: Configured Once the floor tracking is complete, the door sensor is configured and the connection is OK, LYRA device is set up and configured.
