- Page 1 NUOVA MAPA 400-02630 - Nuova Mapa 90° Table Leg - Silver Anodised. # 0612100 (Translated Instructions) ASSEMBLY INSTRUCTIONS FOR WALL-MOUNTED ALUMINUM TABLE SUPPORT Package Contents...

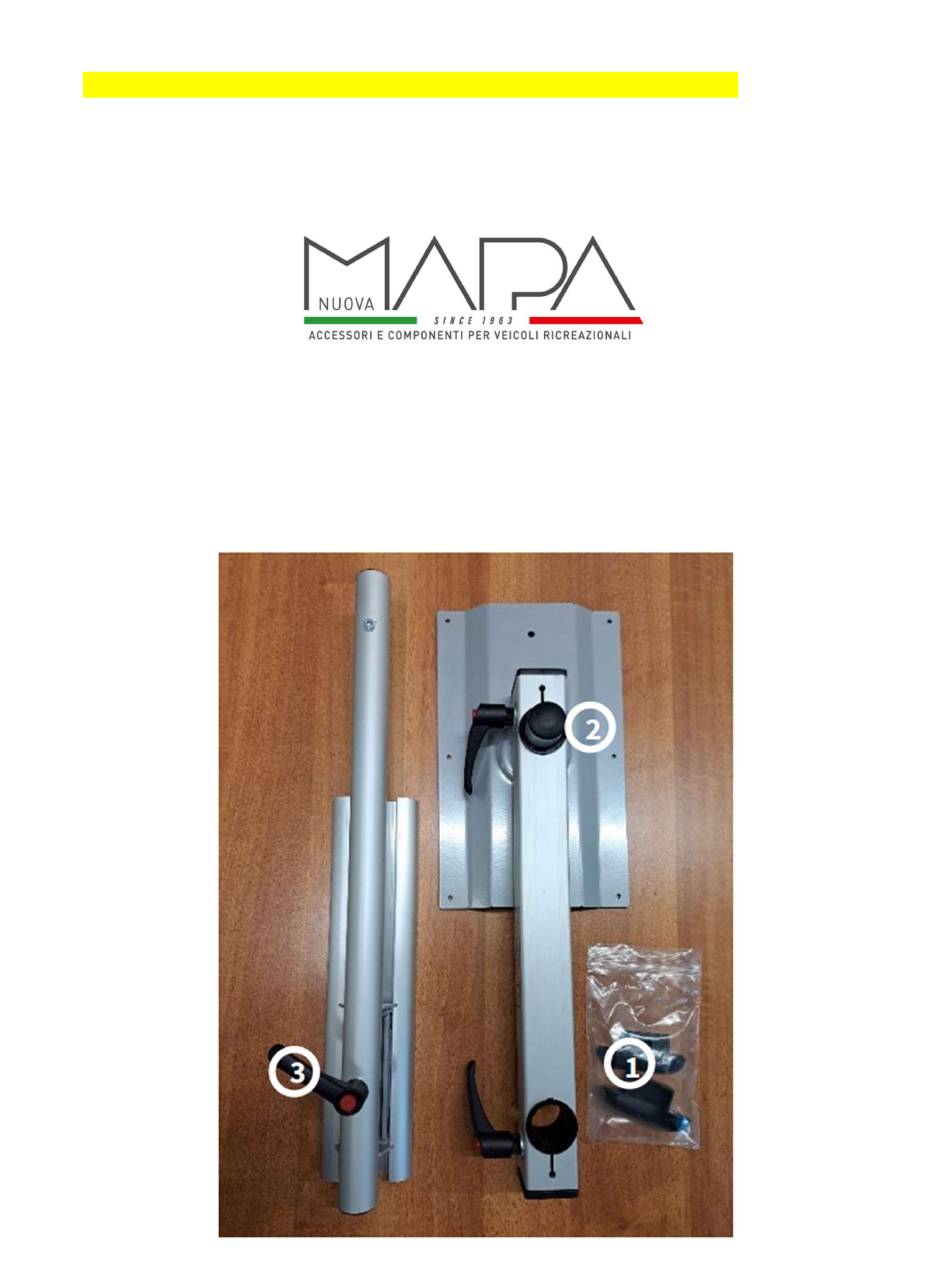

- Page 2 1. 2 x BLACK CAPS for Guide 2. TABLE SUPPORT ARM – Square Tubular Aluminum, Silver Anodised, Complete with Grey Plate for Fixing the Table Top (not included) 3. TABLE SUPPORT TUBE & SLIDE BRACKET – Round Aluminum Tube, Silver Anodized, Complete with Gray Bracket with Aluminum Knob and Guide Assembly Instructions: Grasp the round aluminum tube 1.
- Page 3 The guide should be applied at a height from the ground (measured from the centre of the rail to the floor of the vehicle) of about 28cm, keeping it exactly vertical with respect to the floor If you are of the position of the rail, it is advisable to apply alight layer of adhesive sealant between the rail and the furniture in order to reinforce its seal.
- Page 4 and of a length appropriate to the thickness of the wood into which the guide is to be screwed. 3. Proceed by screwing on the upper part of the guide. Use a screw with a diameter of no more than 4mm and a length appropriate to the thickness of the wood into which the guide is to be screwed.
- Page 5 If you want to use the table in several positions inside the vehicle you can purchase additional optional aluminum rails with caps (400-02632 - Nuova Mapa Additional Alum Mounting Guide Kit for 90° Table Leg. # 0612150) to be fixed in other points of the vehicle.
- Page 6 Proudly distributed in Australia & New Zealand by Coast to Coast RV Services www.coastrv.com.au...
