Summary of Contents for Alesis MELODY 61

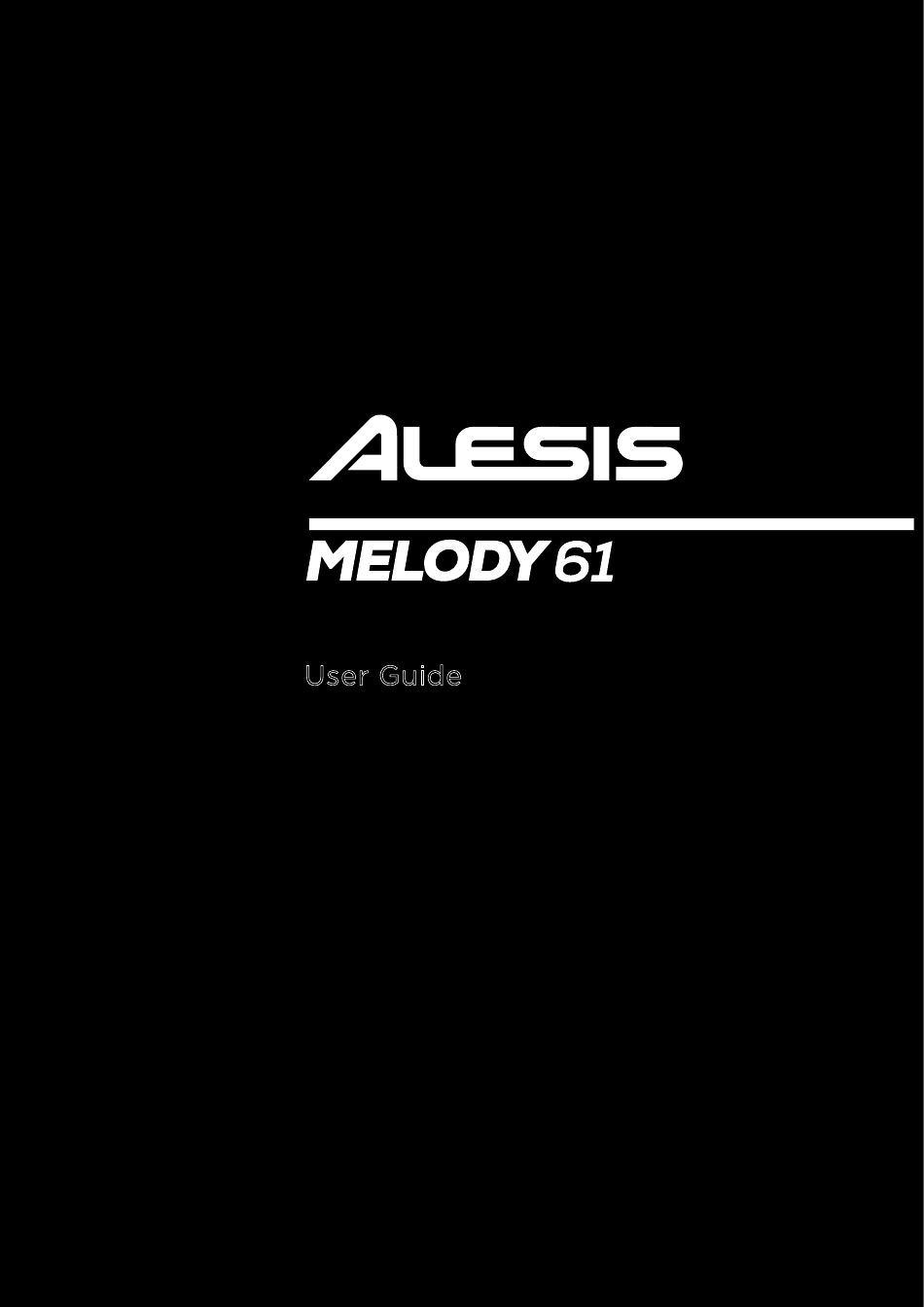

- Page 1 User Guide User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS (1.0) Introduction ......................... 4 (1.1) Box Contents .................................4 (1.2) Support ...................................4 (1.3) Setup ....................................4 (1.3.1) Connection Diagram ........................................... 5 (2.0) Features ........................6 (2.1) Top Panel ..................................6 (2.2) Rear Panel ..................................8 (2.3) Bottom Panel ................................8 (3.0) Basic Operation ...................... - Page 3 (6.0) Appendix ........................14 (6.1) Voices ................................... 14 (6.2) Rhythms ..................................14 (6.3) Technical Specifications ............................15 (6.4) Trademarks & Licenses ............................15...
-
Page 4: (1.0) Introduction
For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit alesis.com. For additional product support, visit alesis.com/support. (1.3) Setup Music Rest: Insert the music rest’s tabs into the top of Melody 61 until they fit securely, as seen in the images below:... -
Page 5: (1.3.1) Connection Diagram
(1.3.1) Connection Diagram Items not listed in Introduction > Box Contents are sold separately. Computer Power Headphones Sustain Smartphone Pedal... -
Page 6: (2.0) Features
Press this button to play back a user song. If this button is pressed during recording, recording will stop and the user song will start playback. When Melody 61 is playing a user song, the screen will show “PLY”. Note: The user song will be cleared after powering o Melody 61. - Page 7 J. Voice Press this button to show the currently selected Main Voice (sound) and turn the Encoder to select a new voice. Press and hold this button and then turn the Encoder to adjust the volume level of the Main Voice (R1).
-
Page 8: (2.2) Rear Panel
Use the included power adapter to connect this input to a power outlet. (2.3) Bottom Panel A. Battery Compartment Install 6 “AA” batteries (not included) here to power Melody 61 if you are not using the power adapter. Tip: To help save battery life, use the Eco Mode feature (auto- power off) by holding the Function button and pressing the key labeled “Eco”. -
Page 9: (3.0) Basic Operation
(3.0) Basic Operation (3.1) Voices To select and play a Main Voice (r1): PRESS 1. Press the Voice button. “r1” will be shown on the screen. 2. Turn the Encoder to select a voice (t00 - 299). 3. Play the keys to hear the voice. 4. -
Page 10: (3.3) Split Mode
(3.3) Split Mode Split Mode allows you to separate the 61 keys into two zones so that you can have two different voices for each of your hands. For example, you may want the Piano voice for PRESS your right hand, and the Bass voice for your left hand. When Split Mode is enabled, the left-hand voice is referred to as the Split voice. -
Page 11: (3.5) Rhythm Mode
(3.5) Rhythm Mode Melody 61 features 300 accompaniment rhythms that you can play along with and create your own songs. To enable Rhythm Mode and select an accompaniment rhythm (r00-299), press Rhythm and then turn the Encoder. “rhY” will be shown on the screen. -
Page 12: (4.0) Advanced Operation
(4.0) Advanced Operation (4.1) Keybed Functions You can change more advanced settings by pressing and holding the Function button and then press a key that corresponds to the graphic below to change your desired setting. (4.1.1) Transpose This function allows the overall pitch of the piano to be transposed up or down by a maximum of six semitones. -
Page 13: (4.1.4) Midi Channel
Phones. The speakers will be muted if there are headphones played. plugged into the Phones. Using a mobile phone in close proximity to Melody 61 may produce The speakers are producing interference. To prevent this, turn off the mobile phone or keep it away noise or interference. - Page 14 (6.0) Appendix (6.1) Voices – 1 – – – – – – 056–079 Brass/Woodwind 139–239 Instrument FX 1 – – (6.2) Rhythms – – – – – – 1 – – & 1 – – – –...
- Page 15 Specifications are subject to change without notice. (6.4) Trademarks & Licenses Alesis is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. All other product names, company names, trademarks, or trade names are those of their respective owners.
- Page 16 Manual Version 1.3...
Need help?
Do you have a question about the MELODY 61 and is the answer not in the manual?
Questions and answers

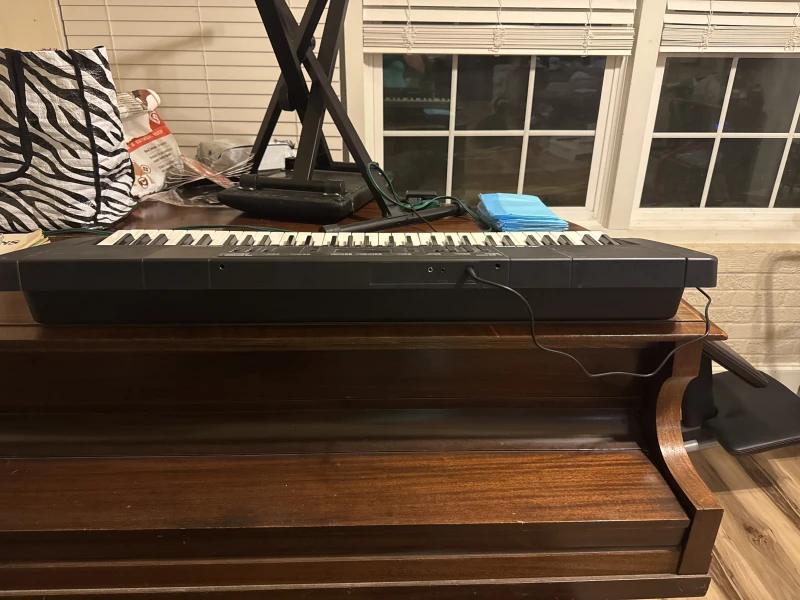

I heard a pop sound during playing music and now there’s no sound coming out of the device. The keyboard still has power. There is no function key and no reset key.
A pop sound when turning the keyboard on or off is normal and not a cause for concern. If the keyboard stops producing sound despite having power, check the following:
1. Ensure the main volume is not set too low.
2. Check if headphones are plugged into the Phones jack, as this mutes the speakers.
3. If the issue persists, try resetting the keyboard by holding the Function button and pressing the Factory Reset key (C7).
