SIP Horn Loudspeaker

ABT-T2515S

Instruction Manual

ver. 12.2020

www.ambientsystem.eu

Ambient System Sp. z o.o.

ul. Bysewska 27 | 80-298 Gdańsk | Poland

Table of Contents

Need help?

Do you have a question about the ABT-T2515S and is the answer not in the manual?

Questions and answers

Summary of Contents for ambient SYSTEM ABT-T2515S

Page 1 We make everyday life safer SIP Horn Loudspeaker ABT-T2515S Instruction Manual ver. 12.2020 www.ambientsystem.eu Ambient System Sp. z o.o. ul. Bysewska 27 | 80-298 Gdańsk | Poland...
Page 2: Table Of Contents
SIP Horn Loudspeaker ABT-T2515S Instruction Manual Table of Contents 1. Safety __________________________________________________________________________________________________________ 2. Appearance of the product ___________________________________________________________________________________ 3. Technical specification ________________________________________________________________________________________ 4. Installation instruction ________________________________________________________________________________________ 5. SIP Manager __________________________________________________________________________________________________ 6. Web server ____________________________________________________________________________________________________...
Page 3: Safety
Safety Danger! High risk: This symbol indicates an imminently hazardous situation such as "Dangerous Voltage" inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death. Warning! Medium risk: Indicates a potentially hazardous situation. If not avoided, this could result in minor or moderate bodily injury.
Page 4 SIP Horn Loudspeaker ABT-T2515S Instruction Manual Professional installation only. Do not use this equipment in residential applications. Condensation. In order to avoid condensation; wait a few hours before turning on the equipment when it is transported from a cold to a warm space.
Page 5 This label may appear on the bottom of the apparatus due to space limitations. Caution! To reduce the risk of electrical shock, DO NOT open covers. Refer servicing to qualified service personnel only. Warning! To prevent fire or shock hazard, do not expose units to rain or moisture. Warning! Installation should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes.
Page 6: Appearance Of The Product

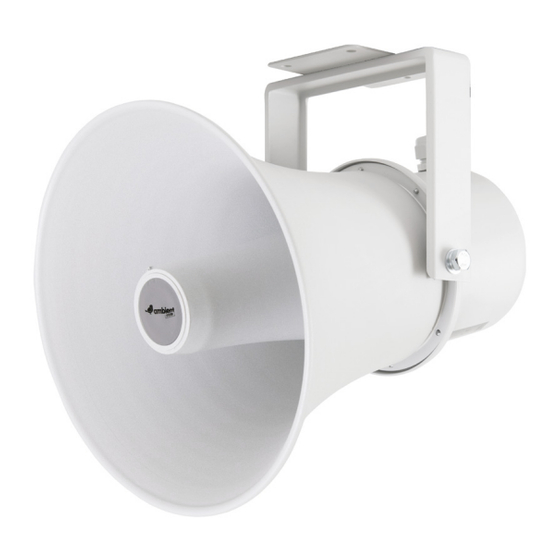

SIP Horn Loudspeaker ABT-T2515S Instruction Manual Appearance of the product SIP Horn Loudspeaker ABT-T2515S...
Page 7: Technical Specification
Technical specification Electrical Rated power of amplifier 15 W Network Interface 10/100BASE-TX, RJ45 Power supply DC 12 – 24 V or POE Max. 48 kHz, 320 kbps audio stream, support MP3, Decoding Mode G.711 a/u, G.722. Min. Delay: 50 ms Effective frequency range 350 Hz – 7 kHz Dispersion at 1 kHz 110°...
Page 8 SIP Horn Loudspeaker ABT-T2515S Instruction Manual...
Page 9: Installation Instruction
Installation instruction Mount the speaker using the dedicated mounting bracket The arrangement of the three mounting holes is shown in the figure on page 8. Connect the speaker to the PoE port of the network switch If there is no PoE port, connect an external 12 VDC 2 A power supply to the power socket. Close all connectors in a hermetic junction box IP67...
Page 10: Sip Manager
SIP Horn Loudspeaker ABT-T2515S Instruction Manual SIP Manager SipManager is a management tool software on computer host that enables detection of the devices, configuration management and software upgrade. Download the software from the website: and run SipManager.exe https://ambientsystem.eu/en/sipmanager...
Page 11 Search for local devices Run the shortcut menu “Refresh” to search for SIP devices in the LAN network, and it displays the searched SIP devices on the main window. Add Device For devices that are not powered on, you can click on “Add”...
Page 12 SIP Horn Loudspeaker ABT-T2515S Instruction Manual Upgrade Device Right-click on your SIP device or select the “Upgrade” option from the main menu to upgrade your SIP device firmware. In the UpdateServer window, select to open upgrade file (xxxx_xxxx_xx.bin) and click “Start”, click “OK”...
Page 13: Sip Settings
SIP settings 5.1.1 Double-click on the selected device, select “Base Parameter” from the left column to set device’s address, Subnet mask, Gateway address server.
Page 14 SIP Horn Loudspeaker ABT-T2515S Instruction Manual 5.1.2 Click “Account Information” and set SIP device’s Display name, User account, User password, SIP Server IP address Server port.
Page 15 5.1.3 Click “Intercom Setting” from the left column to set your SIP call parameters Auto answer time or use the default settings.
Page 16 SIP Horn Loudspeaker ABT-T2515S Instruction Manual 5.1.4 Click “Monitor Multicast” to set multicast address. Select multicast from the list and click “OK”. Set the multicast volume level, the maximum allowed value is “90”. There are 10 priorities of monitor multicast addresses in the list (the highest priority 1 and the lowest priority 10). The Multicast with higher priority can interrupt the Multicast with lower priority.
Page 17 To add multicast address click on “…” button. Set Zone name, Multicast IP address and Port, click “Add” to add multicast to Multicasts list. Select multicast from the list and click “OK”.
Page 18 SIP Horn Loudspeaker ABT-T2515S Instruction Manual 5.1.5 Click “Save” to save settings.
Page 19: Web Server
Web server Set the local IP address of the network card from the same address pool as the speaker address (e.g. 192.168.1.xxx) and enter the speaker IP address (factory setting 192.168.1.105) in the browser. Log in to the web server by selecting “SIGN IN”, the default user and password are empty.
Page 20 SIP Horn Loudspeaker ABT-T2515S Instruction Manual Select “Network” from the left column to set device’s address, Subnet mask, Gateway address server. Click “Save” to save settings.
Page 21 Click “Account” and set SIP device’s User account, User password, Display name, SIP Server IP address Server port. Click “Save” to save settings.
Page 22 SIP Horn Loudspeaker ABT-T2515S Instruction Manual Click “Intercom” from the left column to set your SIP call parameters “Auto answer time” or use the default settings. Click “Save” to save settings.
Page 23 Click “Monitor” to set multicast address. Enter addresses and ports of monitored multicasts with the priority from 1 to 10. The Multicast with higher priority can interrupt the Multicast with lower priority. When other SIP devices in the network initiate the same group of multicast, your SIP device will automatically turn into a monitor to receive and play that audio signal.
Page 24 SIP Horn Loudspeaker ABT-T2515S Instruction Manual Select “Security” to change login and password. Click “Save” to save settings.
