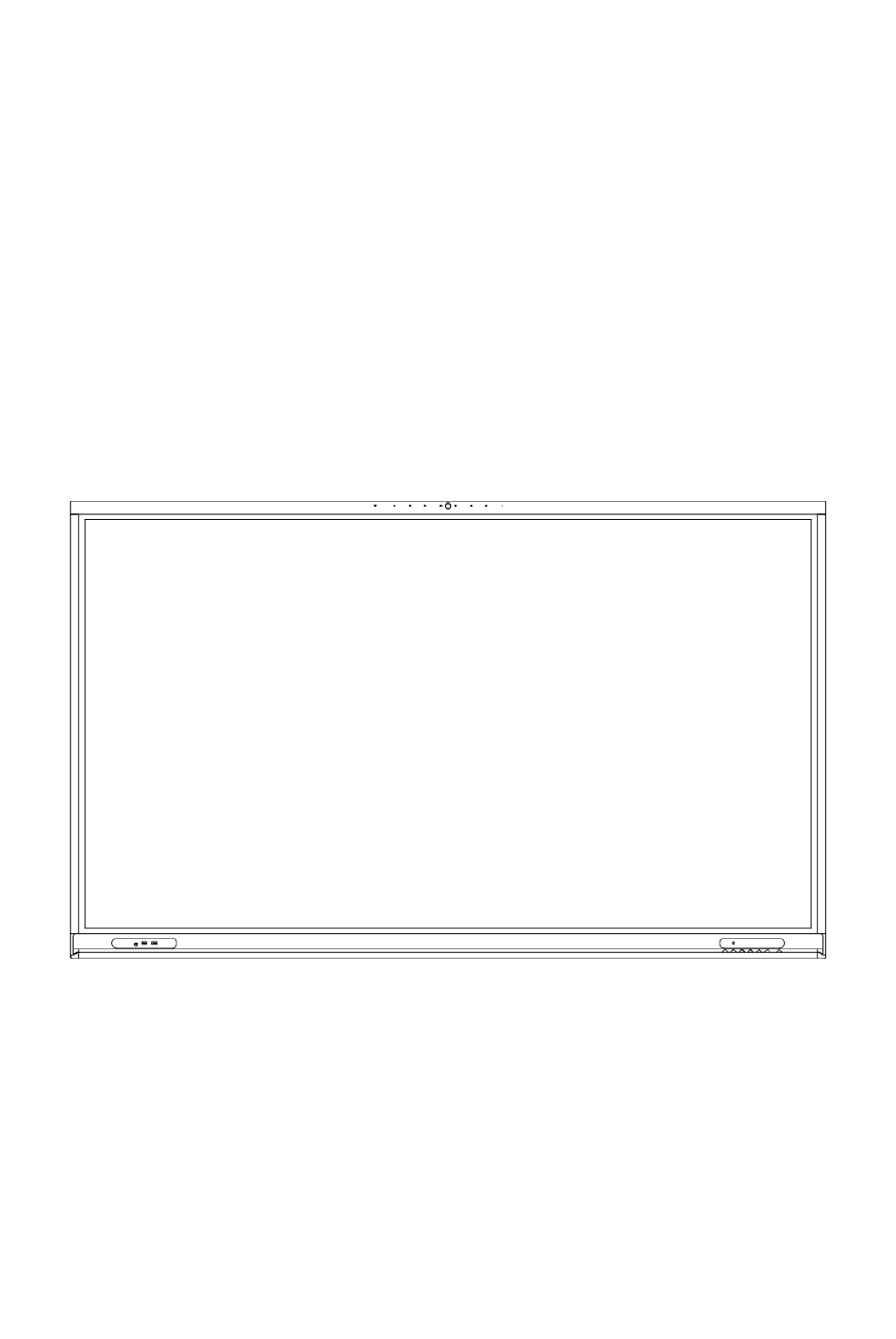

Page 1 innex Meeting Hub Interactive Touch Screen User Manual Model: CT65 /CT75/CT86 Please keep the manual for further reference.
Page 2 Welcome: Thanks for purchasing this product. Please read the instructions carefully before using this product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 3: Table Of Contents
Index About This Document ........................3 Safety Instruction ..........................4 1 Parts and Functions ........................7 1.1 I/O Ports &Buttons ............................... 7 1.2 Remote Controller ................................ 9 2 Installation Guide ........................12 2.1 Safety Precautions ..............................12 2.2 Installation Precautions ............................... 13 2.3 Installation ..................................
Page 4: About This Document
About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Provides tips for operation.
Page 5: Safety Instruction
Safety Instruction For your safety, please read the following instructions before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from power supply immediately if major failures occur. Major failures include the following: ⚫...
Page 6 WARNING ⚫ Do not walk on or hang any items on the product. Do not install the product in an improper place. ⚫ Do not install the product in humid places, such as the bathroom, the shower room, near windows, or outdoor environments that experience rain, snow or other harsh weather. Avoid installation near hot spring vapor.
Page 7 CAUTION electrodes (positive and negative). ⚫ Do not install and use a new battery with a used one. ⚫ Take out the batteries if the remote control is not used for a long period. ⚫ Do not expose the batteries to overheated environments such as sunlight and firing. ⚫...
Page 8: Parts And Functions
Parts and Functions 1.1 I/O Ports &Buttons Front View ⚫ Details Port Type C Connect a device via USB-C cable or USB-C drive. (USB with DP ALT and PD enabled USB 3.0*2 Connect to USB devices.
Page 9 Buttons Operations Functions Short Press Confirm for MENU setting Exit MENU Down Short press Adjust MENU Short press Adjust MENU VOL- Short press Decrease the sound volume Long press for more than Decrease the sound volume continuously 1 second VOL+ Short press Increase the sound volume Long press for more than...
Page 10: Remote Controller
USB 3.0*2 Connect USB devices such as keyboards, mouse, or storage devices. *The USB ports accept a maximum constant current of 1.3A. If the value is exceeded, USB ports may not work. TOUCH Connect a device via USB B-A cable for touch control HDMI In 1&2 Connect a device, such as a laptop, using a HDMI cable TYPE C...
Page 11 Do not drop or beat the remote control. ⚫ Do not spill water or other liquid on the remote control. ⚫ Do not put the remote controller on wet items. ⚫ Do not expose the remote controller under sunlight or put it near an overheated source. ⚫...
Page 12 Items Functions Description Power on/standby Speaker Mute/Unmute Volume up Volume down Left OK/ Confirm Right Down Display Menu Camera Menu Return for Camera Menu Switch source to Screen share Switch source to HDMI 1 Switch source to front type C Switch source to OPS Switch source to HDMI 2 Switch source to rear Type C...
Page 13: Installation Guide
Installation Guide 2.1 Safety Precautions Installation Environment Installation Direction...
Page 14: Installation Precautions
2.2 Installation Precautions Weight Loading When using a mobile stand, ensure that the weight of the product is less than the loading ⚫ capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ⚫...
Page 15: Installation
Ventilation Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure. Top ≥ 200mm (7.78 in) Right ≥ 100mm (3.94 in) Left ≥...
Page 16: Installing The Internal Pc (Optional)
2.4 Installing the Internal PC (Optional) The internal PC does not support hot plugging. Therefore, you must insert or remove it when the screen is powered off. Otherwise, the screen or internal PC may be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC.
Page 17: Install Connect Pro Receiver
Step 3 Secure the internal PC to the display by using the M3 screws. Step 4 Ensure the installation is correct before turning the power on again. 2.5 Install Connect Pro Receiver Insert the Connect Pro Receiver into the custom HDMI port located at the top of the device. This specialized port facilitates the transfer of video, audio, and USB data.
Page 18: Turning On/Off
Turning On/Off 3.1 Power On Step 1 Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power is in the range of 100 V to 240 V with frequency at 50 Hz/60 Hz ±...
Page 19 If an internal PC is equipped, the internal PC and the screen are powered off simultaneously when ⚫ you power off the system. Do not forcibly disconnect the power supply of the screen when the internal PC is on. ⚫...
Page 20: Menu
Menu After the interactive touch screen is powered on, press MENU to enter the OSD menu setting interface. The menu items include Source, Image, More, and Mute/Unmute. By default, the SOURCE interface appears. Use your finger to perform screen touch operation. Press Source to enter the signal source selection menu.
Page 21 Use your finger to perform screen touch operation or press ◄/►/▲/▼ on the remote controller to select a menu item and press OK to complete the menu switching and option setting in the menu. Use your finger to perform screen touch operation or press ◄/►/▲/▼ on the remote controller to select a menu item and press OK to complete the menu switching and option setting in the menu.
Page 22 even after a reboot. OSD Language: Multiple languages are supported. Once you change the language setting, it will remain unchanged even if you restore user settings. Aspect Ratio: There are 3 different aspect ratios available, 16:9; 4:3; P to P. Color Range: There are 3 settings.
Page 23 Mute/Unmute: You can tap this icon to mute or unmute the speaker. The icon will change accordingly. Alternatively, you can use the remote control to mute the speaker, and the icon will synchronize with this action. Additionally, pressing the volume + or - button on the remote control will also update the status.
Page 24: Connect Pro Introduction
Connect Pro Introduction 5.1 Overview Connect Pro is a BYOM technology that supports device casting of screen image and sound and streaming of UC camera and microphones with touch back control. It supports multiple simultaneous devices casting by using the Connect Pro button, Connect Pro Software, or native casting such as: Airplay, Chromecast, and Miracast.
Page 25: Home
5.3 Home Note: 1) Device Name. 2) Device Password 3) Connection Information 4) Status & Control Panel 5) Pin Code 6) WIFI /Hotspot Status Setting 7) Access to Quick Guide If the Connect Pro Receiver has not been activated, the message “Product Not Registered” will appear.
Page 26: Device Name
5.3.1 Device name Default set to be synchronized with Connect Pro hotspot name, this name will be the device name to select while casting to the screen in Airplay, Chromecast, Miracast, or the Connect Pro Software. Users may change this name can be change in Connect Pro setting. 5.3.2 Device Password Disabled by default, Users may create a manual or dynamic 4-digit password in Connect Pro Receiver setting.
Page 27 Users may tap the status icon to see the current list of connected devices. Further action can be taken by interacting with individual connected devices. In the example below, there are six connected Windows devices Connecting Method Tap While sharing Tap While Not Sharing Connect Pro Buttons Stop Sharing...
Page 28: Pin Code
5.3.5 Pin Code Enabled by default, this is designed for the Connect Pro Software. Users simply input the pin code visible on the Connect Pro to connect their laptops. Users may disable the pin code and access additional features in Connect Pro Setting. "If the Wi-Fi connection is unstable during registration, the Pin code may not appear automatically.
Page 29 5.3.6.1 BYOM Users may access the setting related to the BYOM UC features such as the camera streaming bandwidth and quality and test the microphones and speakerphone readiness. **IMPORTANT: This BYOM setting only applies to laptop devices who are connected by the Connect Pro Buttons or the Connect Pro Software.
Page 30 5.3.6.2 Wi-Fi Setting Enable or disable Wi-Fi. 5.3.6.3 Miracast Disabled by default, Users may choose to enable it by turning off the Connect Pro hotspot while turning on Wi-Fi. When users try to enable it without turning off the hotspot, a notification message will appear at the bottom.
Page 31 IMPORTANT: If there is an existing Miracast connection to the CT. The CT device name will no longer be visible to other Windows Laptops. Miracast supports single point “Touch Back.” To enable it, users must check the Allow mouse, keyboard, and other input from this device check box. Miracast resolution is 1080p by default.
Page 32 5.3.6.4 Language Connect Pro supports multiple languages. You can choose your preferred language for operation "The supported languages are English, German, Spanish, French, Italian, Japanese, Dutch, Polish, Swedish, Simplified Chinese, and Traditional Chinese. 5.3.6.5 Retart Tap to restart Connect Pro. We recommend restarting Connect Pro after a firmware update or system restore to ensure the software resets properly.
Page 33 5.3.6.6 More 5.3.6.6.1 General ⚫ Sync The Device with The Hotspot Name By default, the device name is synchronized with Connect Pro's hotspot name, which is 'Connect Pro.' If you have multiple devices in your office, please rename each device to distinguish them from one another.
Page 34 Disabled by default, Users may set the device password (4 digits number only) of the Connect Pro Receiver. This password displays on the Connect Pro Receiver home screen. If the device has previously connected with the same displayed password, the device can reconnect without typing the password again.
Page 35 Disabled by default, when enabled, the Connect Pro Receiver will dynamically generate a new password per the period selected. ⚫ Device Password Showing Duration Disabled by default, when enabled, the Connect Pro Receiver will display the current device password on the bottom part of the Connect Pro so the users in the same room can see what the correct password is.
Page 36 5.3.6.6.2 Pin Code Default set to be enabled and discoverable, users may choose to disable it if they do not need to connect using the Connect Pro Software. ⚫ Discoverable Enabled by default, this allows the Connect Pro Software in the same network to automatically discover and connect to the Connect Pro Receiver.
Page 37 ⚫ Enable Pin Code Enabled by default, this allows the Connect Pro Software in the same network to be able to use the pin code to connect to the Connect Pro Receiver. To access the pin code setting, please turn off Enable pin code to reveal more settings. IMPORTANT: Turning off CM’s Wi-Fi will automatically disable pin code.
Page 38: Access To Quick Guide
5.3.6.7 About ⚫ Wi-Fi MAC address Show the MAC address of the receiver. This address also the ⚫ Device Wi-Fi MAC address ⚫ S/N number The Serial number of Connect Pro Receiver Hardware ⚫ FW version This is to show the software version of Connect Pro receiver. ⚫...
Page 40: More Information
More Information For More Information Please visit our website (www.funtechinnovation.com) for a detailed FAQ. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product spec and information without notice. Product pictures in the manual are for reference only, please refer to actual products.
