Summary of Contents for Bihui VCA38

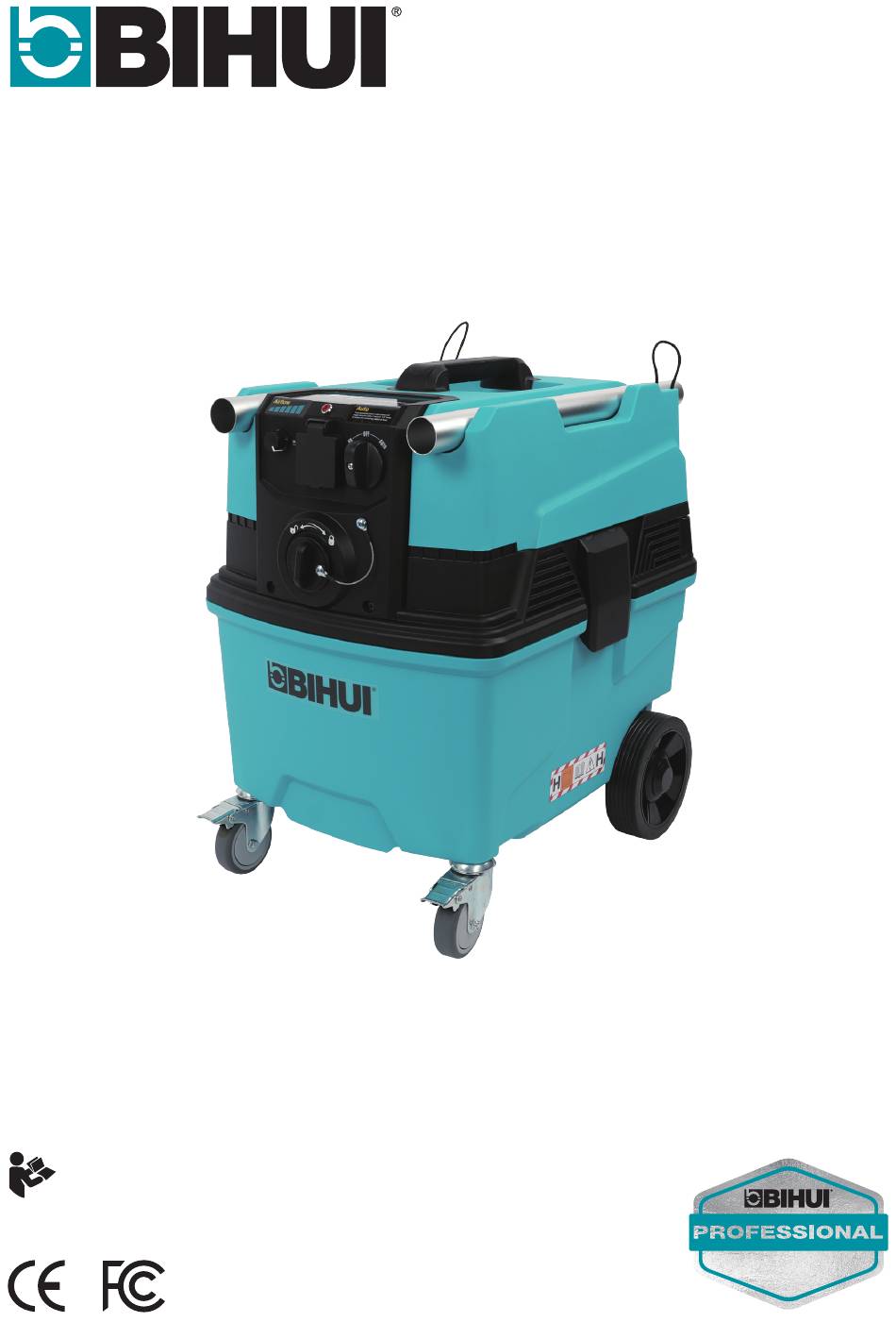

- Page 1 VCA38 & VCB38 Usage Instructions Industrial Vacuum Cleaner Read before use W A R R A N T Y...
- Page 2 English Usage Instructions...
-
Page 3: Spare Part List
English English Usage Instructions Usage Instructions Spare Part List Lifting handle Hose clamp Top cover Driving module Driving module Air hood Control module PCB Reversing valve assembly Reversing valve assembly Center cover Panel Lanyard Inlet seal complete set Vacuum pressure indicating light Airflow adjustment knob 10A power output socket Knob cap... -
Page 4: Safety Warnings
English Usage Instructions INDEX Symbols Safety Warnings The following are the icons that are used for the tool. Make sure you Application fully understand them before using them. Using Instructions Cleaning and Maintenance Read before use Wear safety gloves Accessorie Wear hearing protectors CE mark Environmental Protections... - Page 5 English English Usage Instructions Usage Instructions h) Do not weigh yourself in false safety and do not overstep the safety rules for power tools, even if you are familiar with the power tool after many uses. Careless action can lead to serious injuries within fractions of a second. 1.4 Use and care of the power tool a) Do not overload the power tool.
- Page 6 - Automatic trailing mechanism for emptying the suction hose competely - Large and robust wheels and castors built to withstand the tough construction site - Cable wrap for convenient cord storage - Practical accessory case and storage area. Data VCB38 VCA38 230V/50HZ 110V/60HZ Voltage(V) Power(MAX) 1.2KW 1.85HP...
- Page 7 English English Usage Instructions Usage Instructions Antistatic hose 4M Floor brush 1PC Handle 1PC Wand 2PCS Plastic crevice tool 1PC Reducer adapter Dust bag Dust collection bag Spare Part List Crevice tool Hose cuff 1-vaccum side Bent wand handle Thread tightening head Straight wand Bayonet coupling Floor brush...
-
Page 8: Using Instructions
English Usage Instructions 3. Using Instructions 3.1 Starting Ups Bring the device to working position- secure it, if required, by locking the caster brakes. 3.1.1Connect the floor brush with the 2 straight wands. - Connect the hose with the wand via hose-cuff. - Connect the hose with the adaptor via hose-cuff Finally, the floor tool set should be attached to the dust suction connection on the device. - Page 9 English English Usage Instructions Usage Instructions 3.2. Innovated auto cleaning When start the vacuum, 2 filters will be cleaned alternately and automatically. See instructions: In some special application, filter may be blocked, recommend the filter deep cleaning: start vacuum, cover the inlet with hand for 60 seconds.
-
Page 10: Cleaning And Maintenance
English Usage Instructions 3.4 Liquid level sensor When start the vacuum, 2 filters will be cleaned alternately and automatically. See instructions: - Remove the dust collection bag, use the machine to suck water, max water suction capacity is 21L, vacuum stops automatically when water suction is full, turn on the switch ”0”... -
Page 11: Environmental Protection
English English Usage Instructions Usage Instructions WARNING - When cleaning and servicing the machine, you must switch off the machine, cut down the power tools from vacuum socket and remove the plug from the outlet. - Avoid cleaning with a high-pressure cleaner. If necessary, do not direct at the openings on the machine, especially the opening for cooling air. - Before moving the machine from the work area, the machine must be cleaned. -
Page 12: Troubleshooting
English Usage Instructions 8. Trouble Shooting The dust extractors are designed and manufactured for severe environments and tasks, but the user must note that the machine must be protected from knocks and blows. Filter, seals, attachments, and connections are carefully adapted and selected with regard to the operator’s work environment.
