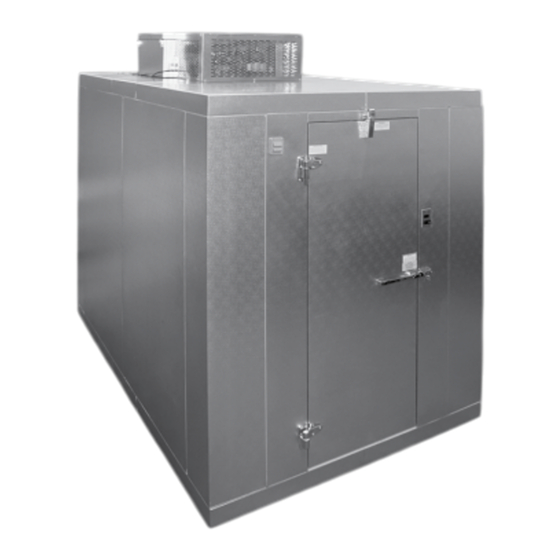

Summary of Contents for RSG CAPSULE PAK ECO KLB612-C
- Page 1 CAPSULE PAK ECO™ REFRIGERATION SYSTEMS INSTALLATION MANUAL 5/23 Rev. F 171551...
-
Page 2: Table Of Contents
Table of Contents Refrigeration Systems-General Information Receiving Inspection Safety Information General Installation Instructions Set-Up and Installation Start Up and Operation Temperature Control Cooler Operation Freezer Operation Condensate Water Loading Product Locating and Mounting Condensing Units Maintenance Preventative Maintenance Maintenance Analysis 5/23 Rev. -
Page 3: Refrigeration Systems-General Information
Refrigeration Systems-General Information RECEIVING INSPECTION Congratulations on your purchase of a quality-built refrigeration system. When properly installed and maintained, this product will give many years of trouble-free service. It was shipped using trusted carriers with a history of careful handling, good customer service and prompt delivery. Even with all of these precautions, occasionally accidents may happen which result in shipping damage. - Page 4 Refrigeration Systems-General Information supplied. See the appliance nameplate for electrical specifications. Failure to use an independent power supply of proper capacity can result in a tripped breaker, blown fuse, damage to existing wiring or component failure. This could lead to heat generation or fire. •...
-
Page 5: General Installation Instructions
General Installation Instructions GENERAL INSTALLATION INSTRUCTIONS This section contains general instructions for installing the ceiling mounted Capsule Pak ECO refrigeration system. Note: • Proper temporary support of the ceiling panel with the cut out must be added prior to the installation of the Capsule Pak ECO refrigeration system on the ceiling. -
Page 6: Set-Up And Installation
General Installation Instructions When moving the Capsule Pak ECO into position, use caution not to damage the gasket material underneath the evaporator section. It is recommended to slide the Capsule Pak ECO on a sheet of cardboard over the top of the walk-in until it is in the desired location. -
Page 7: Start Up And Operation
General Installation Instructions IMPORTANT • Confirm that the ambient temperatures are within the tolerances allowed. • Do not locate next to heat generating devices. • Confirm the unit is level. • Do not use an extension cord to connect the unit to power. Use of an extension cord will void all warranties. •... -
Page 8: Condensate Water
General Installation Instructions CONDENSATE WATER Condensate water is collected in the drain pan under the evaporator coil and directed into a condensate evaporator pan in the condensing unit area. The condensate is then evaporated by the warm air off the condenser fan. LOADING PRODUCT Once the walk-in has been operating at the desired temperature for a sufficient period of time, product can be loaded into the refrigerated space. -
Page 9: Maintenance
Maintenance MAINTENANCE WARNING: When servicing any Capsule Pak ECO™ Refrigeration System or performing any maintenance procedure, always disconnect the main power supply. All service should be performed by factory authorized personnel. All component parts must be replaced with like components to minimize the risk of possible ignition due to incorrect parts or improper service. The Condensing Unit is accessible by removing the Condensing Unit Cover (12 screws). -
Page 10: Preventative Maintenance
Preventative Maintenance RECOMMENDED PREVENTATIVE MAINTENANCE FOR WALK-INS & REFRIGERATION SYSTEMS This preventative maintenance is recommended to be executed on a quarterly schedule by a certified technician from an Authorized Service Provider. Walk-In Coolers & Freezers: • Check door alignment, door closer and hinges. •... -
Page 11: Maintenance Analysis
Maintenance Analysis MALFUNCTION POSSIBLE CAUSE SOLUTION Compressor will not start - 1. Unplugged or power off Plug in service cord or turn power on no hum 2. Fuse blown or removed Replace fuse 3. Overload tripped Determine reasons and correct 4. - Page 12 Thank you for purchasing Refrigerated Solutions Group equipment! Please visit the links below to complete your WARRANTY REGISTRATION. For Master-Bilt For Norlake Equipment Equipment master-bilt.com/register norlake.com/register Refrigerated Solutions Group 891 County Road U Hudson, WI 54016 800-955-5253 Norlake Foodservice Sales 800-477-5253 Norlake Scientific Sales 800-388-5253 Norlake Parts/Service 877-503-5253 Norlake Walk-In Installation...
