10/100Base-TX Industrial Ethernet Extender
Quick Start Guide
This quick start guide describes how to install and use the Ethernet
Extender. The Ethernet Extender introduced here provides one channel for
Ethernet over existing voice grade copper wire.

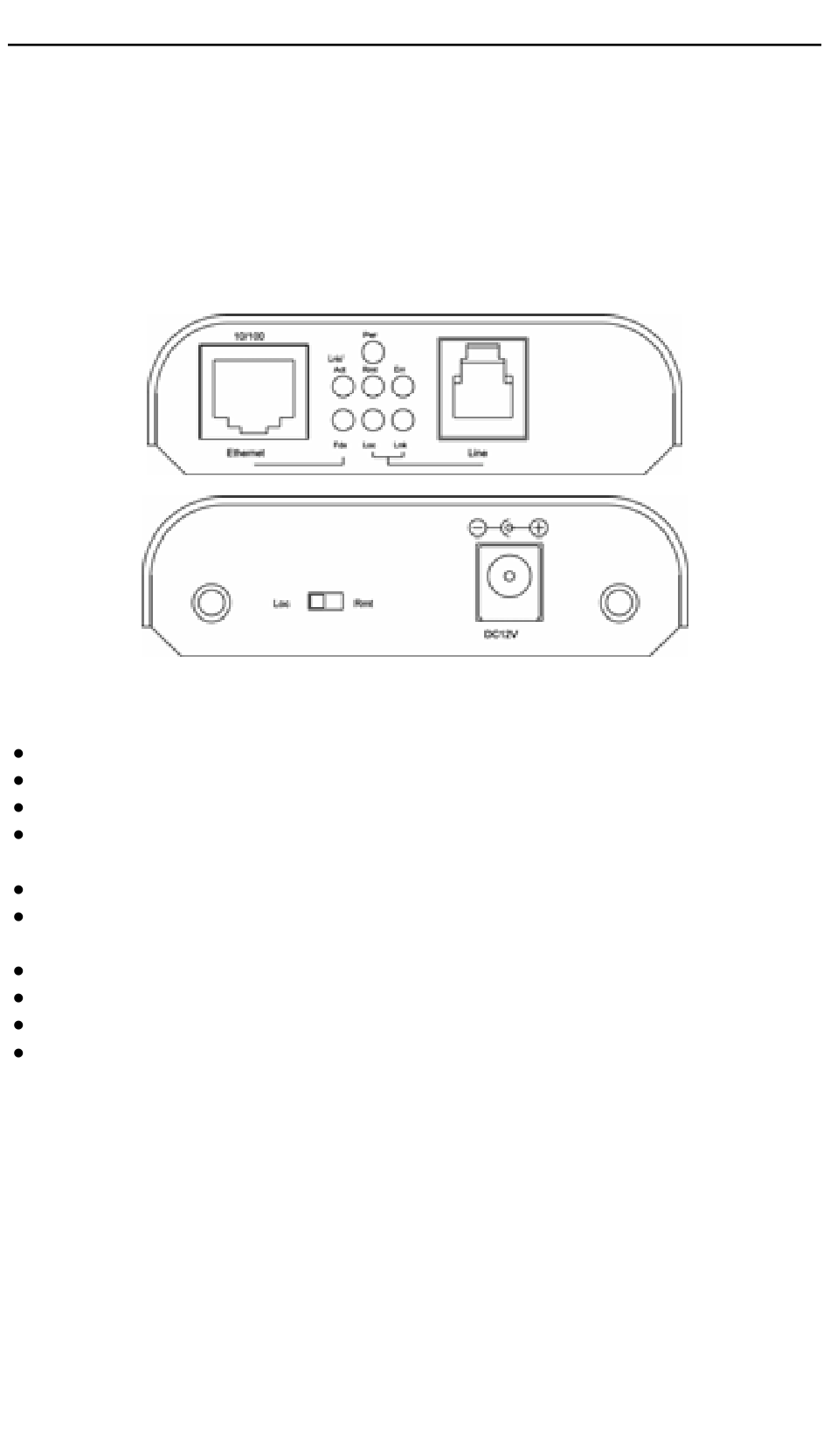

Product Overview
Product Features
One 10/100BaseTX (TX) Ethernet port with RJ-45 connector
Auto negotiation of speed and duplex mode on TX port
Auto MDIX on TX port
Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX
standards
One Ethernet Extender port with RJ-11 connector
Ethernet
1/3/5/10/15/20/25/30/40/50Mbps
One DIP switch for configuring Ethernet Extender local or remote mode
Status LEDs
External AC to DC power adapter
Used as a stand-alone device
Extender
port
auto
senses
1
the
speed
of
Advertisement
Table of Contents
Related Manuals for EtherWAN ED3101U
Summary of Contents for EtherWAN ED3101U
- Page 1 10/100Base-TX Industrial Ethernet Extender Quick Start Guide This quick start guide describes how to install and use the Ethernet Extender. The Ethernet Extender introduced here provides one channel for Ethernet over existing voice grade copper wire. Product Overview Product Features One 10/100BaseTX (TX) Ethernet port with RJ-45 connector Auto negotiation of speed and duplex mode on TX port Auto MDIX on TX port...
-
Page 2: Ethernet Extender Mode Settings
10/100Base-TX Industrial Ethernet Extender Ethernet Extender Mode Settings Ethernet Extender mode settings are made very simple by means of a switch at the rear panel of the Ethernet Extender. The switch has two positions for Ethernet Extender mode settings. Refer to the table below for more details. -
Page 3: Front Panel & Leds
10/100Base-TX Industrial Ethernet Extender Front Panel & LEDs The LED indicators give you instant feedback on status of the Ethernet Extender: LEDs State Indication Power on Steady Pwr stands for POWER Power off Ethernet A valid Ethernet connection established Steady Lnk stands for LINK Transmitting or receiving Ethernet data Lnk/Act... - Page 4 10/100Base-TX Industrial Ethernet Extender...
- Page 5 10/100Base-TX Industrial Ethernet Extender Preface This manual describes how to install and use the Ethernet Extender. The Ethernet Extender introduced here provides one channel for Ethernet over existing voice grade copper wire. The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards.
-
Page 6: Table Of Contents
10/100Base-TX Industrial Ethernet Extender Table of Contents Quick Start Guide..........................1 ........................1 RODUCT VERVIEW ........................1 RODUCT EATURES ..................2 THERNET XTENDER ETTINGS ....................... 2 ONNECTING TO OWER 10/100B ............ 2 THERNET XTENDER ONNECTORS & LED ......................... 3 RONT ANEL DIN-R ....................... -
Page 7: Product Overview
10/100Base-TX Industrial Ethernet Extender Introduction The Ethernet Extender provides one channel for Ethernet over existing voice grade copper wire. It can be used as a stand-alone device. Product Overview Product Features One 10/100BaseTX (TX) Ethernet port with RJ-45 connector Auto negotiation of speed and duplex mode on TX port Auto MDIX on TX port Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards... -
Page 8: One-Channel Ethernet Extender
10/100Base-TX Industrial Ethernet Extender One-Channel Ethernet Extender Ports The Ethernet Extender provides one TX port and one Ethernet Extender port. For the TX port, it uses RJ-45 connector and auto senses the speed of 10/100Mbps. For the Ethernet Extender port, it uses RJ-11 connector and auto senses the speed of 1/3/5/10/15/20/25/30/40/50Mbps. - Page 9 10/100Base-TX Industrial Ethernet Extender LEDs State Indication Power on Steady Pwr stands for POWER Power off Ethernet A valid Ethernet connection established Steady Lnk stands for LINK Transmitting or receiving Ethernet data Lnk/Act Flashing Act stands for ACTIVITY Neither valid Ethernet connection established nor transmitting/receiving Ethernet data Ethernet Connection in full duplex mode Steady...
-
Page 10: Connecting To Power
10/100Base-TX Industrial Ethernet Extender Installation This chapter gives step-by-step installation instructions for the Ethernet Extender. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 11: Use Din-Rail Mounting Kit
10/100Base-TX Industrial Ethernet Extender Use DIN-Rail Mounting Kit Fit the DIN-Rail mounting kit onto the bottom of the unit and fasten the screws. The Ethernet Extender can use DIN-Rail mounting kit to fix on the DIN-Rail. -
Page 12: Specifications
10/100Base-TX Industrial Ethernet Extender Specifications Applicable Standards IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX Ethernet over VDSL Fixed Ports 1 x 10/100Mbps Ethernet port with RJ-45 connector 1 x Ethernet Extender port with RJ-11 connector Speed 10BaseT 10/20Mbps for half/full-duplex 100BaseTX 100/200Mbps for half/full-duplex Ethernet Extender 1, 3, 5, 10, 15, 20, 25, 30, 40, 50Mbps...
