Q U IC K I NSTALL GU IDE

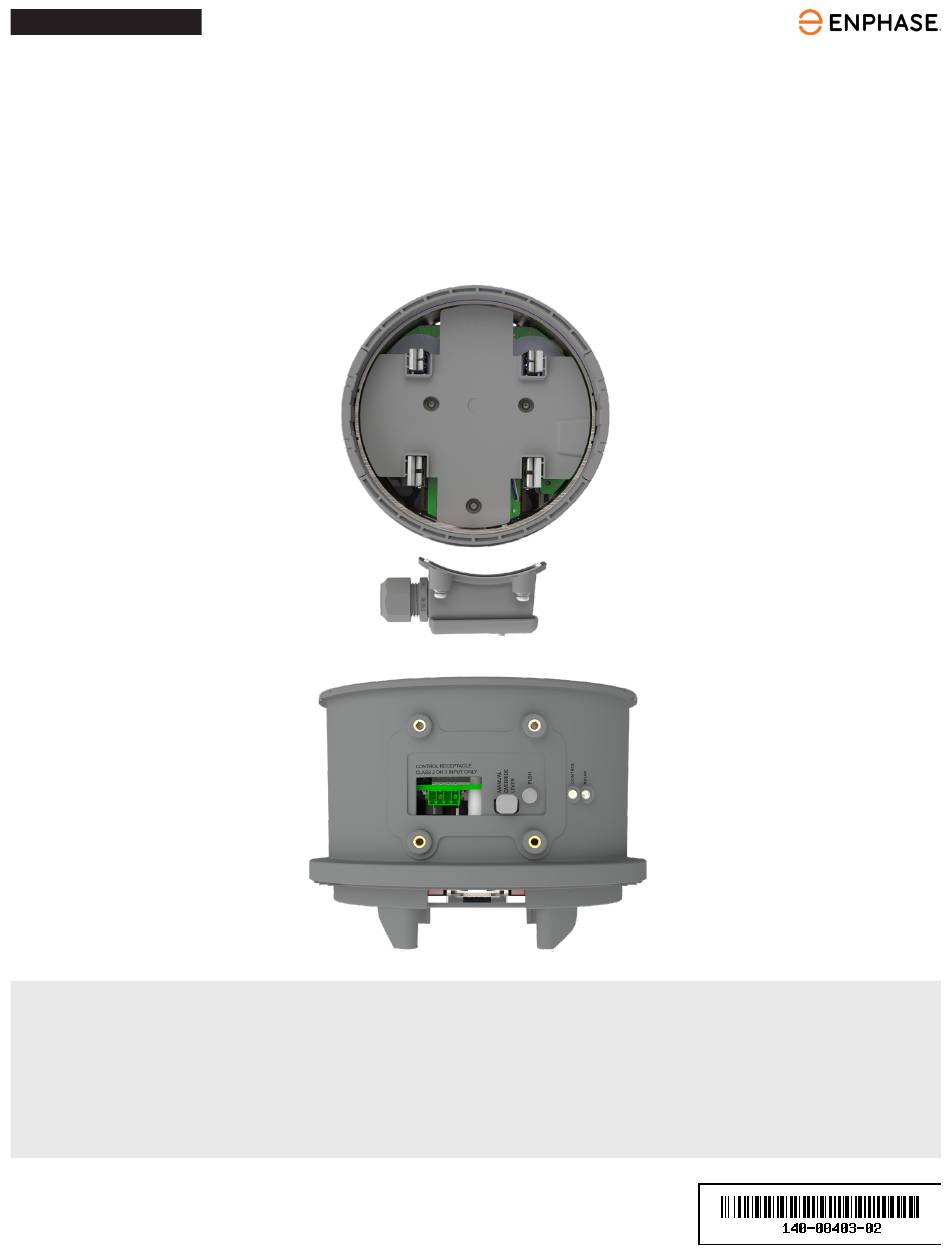

IQ Meter Collar quick install guide
The Enphase IQ Meter Collar is a meter socket adapter with integrated microgrid interconnection device (MID) and current sensors for energy consumption
metering. The IQ Meter Collar is rated at 200 A and can be installed on an ANSI C12 Form 2S meter socket rated up to 200 A continuous operation. It can be
installed either at the service entrance directly on the utility meter socket or on a load-side standalone meter socket.
The IQ Meter Collar is compatible with 3
compatible with 4
generation Enphase Energy Systems installed with the IQ Combiner 6C and IQ Battery 10C.
th
IQ Meter Collar can be used in Enphase grid-interactive (grid-tied) as well as multi-mode (grid-forming) installations. In grid-interactive installations, the
IQ Meter Collar serves as a consumption metering device, eliminating the need for additional CTs to be field wired. In grid-forming installations, the
IQ Meter Collar provides both consumption metering and grid isolation to enable microgrid formation.
✓
NOTES:
•
If installing on utility meter socket, ensure that the IQ Meter Collar is approved by the local utility.
•
The IQ Meter Collar is not compatible with all meter socket installations. Verify the meter socket installation complies with national and local
electrical codes.
•
Do not install the IQ Meter Collar with IQ System Controllers 2, 3, or 3G.
•
These installation instructions do not cover all aspects of a renewable energy system.
•
If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, refer to a qualified electrician or installer.
1
rd
generation Enphase Energy Systems, installed with IQ System Controller 3M and IQ Battery 5P. It is also
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for enphase IQ Meter Collar
- Page 1 The Enphase IQ Meter Collar is a meter socket adapter with integrated microgrid interconnection device (MID) and current sensors for energy consumption metering. The IQ Meter Collar is rated at 200 A and can be installed on an ANSI C12 Form 2S meter socket rated up to 200 A continuous operation. It can be installed either at the service entrance directly on the utility meter socket or on a load-side standalone meter socket.
-
Page 2: Specifications
Specifications E L E C T R I C A L S P E C I F I C AT I O N S Nominal grid supply 120/240 VAC/180°, split-phase Nominal frequency 60 Hz Overvoltage category Category IV (service entrance-rated) Integrated consumption meter ±0.5% accurate Maximum continuous current rating... - Page 3 Seal ring to prevent tampering or unauthorized removal of the utility watt-hour meter Plastic bag Plastic bag for installers to hang the IQ Meter Collar next to the utility watt-hour meter Quick install guide (QIG) IQ Meter Collar quick install guide (this document) One control connector;...
-
Page 4: Installation Scenarios
Junction box When the IQ Meter Collar is installed on a separate meter socket, a jumper cover is required to bypass the need for a watt-hour meter. In this configuration, the IQ Meter Collar measures energy consumed by loads connected to the backup panel. -
Page 5: Before Installation
If the IQ Meter Collar is not approved by the local utility, and the premise does not have a meter-main combo panel at the service entrance, then scenario 2A may be selected for whole home backup. - Page 6 Insert in plastic bag Insert the IQ Meter Collar assembly (with the junction box and control cable in case of ringed meter sockets) along with the seal ring in the plastic bag provided with the package. If the meter socket is ringless, only the IQ Meter Collar along with seal ring needs to be inserted in the plastic bag.
- Page 7 With the TOP marking on the IQ Meter Collar facing up, insert the rear side four blades of the IQ Meter Collar into the meter socket. CAUTION: Do not remove the blank protective cover in front of the IQ Meter Collar until it is inserted into the meter socket jaws. The blank cover helps prevent the live jaws on the front of the IQ Meter Collar from accidental contact while inserting it into a live meter socket.
- Page 8 ✓ NOTE: Do not remove the blank protective cover in front of the IQ Meter Collar until it is inserted into the meter socket jaws. The blank cover helps prevent the live jaws on the front of the IQ Meter Collar from accidental contact while inserting it into a live meter socket.
-
Page 9: User Interface
Manual override lever should not be used under normal operation. b) Contact Enphase Support before operating the manual override lever. c) All generation sources such as PV and battery which can back-feed power should be powered off before operating the manual override lever. - Page 10 • 120 ohms termination resistor is not required on the control connector used with the IQ Meter Collar. • The drain wire must not be connected to any terminal on the IQ Meter Collar. The drain wire must be connected to protective earth (PE) on the equipment at the far end of the control cable.
-
Page 11: Safety Instructions
NOTE: This indicates information particularly WARNING: Risk of electric shock. To maintain the war- important for optimal system operation. Follow in- ranty, do not modify the IQ Meter Collar and install it as structions carefully. per instructions provided in this installation guide. -
Page 12: Revision History
Updated “Scenario 2B”. 140-00403-01 November 2024 Initial release. © 2024 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at https:/ /enphase.com/trademark-usage-guidelines are trademarks of Enphase Energy, Inc. in Enphase Support: enphase.com/support/contact...
