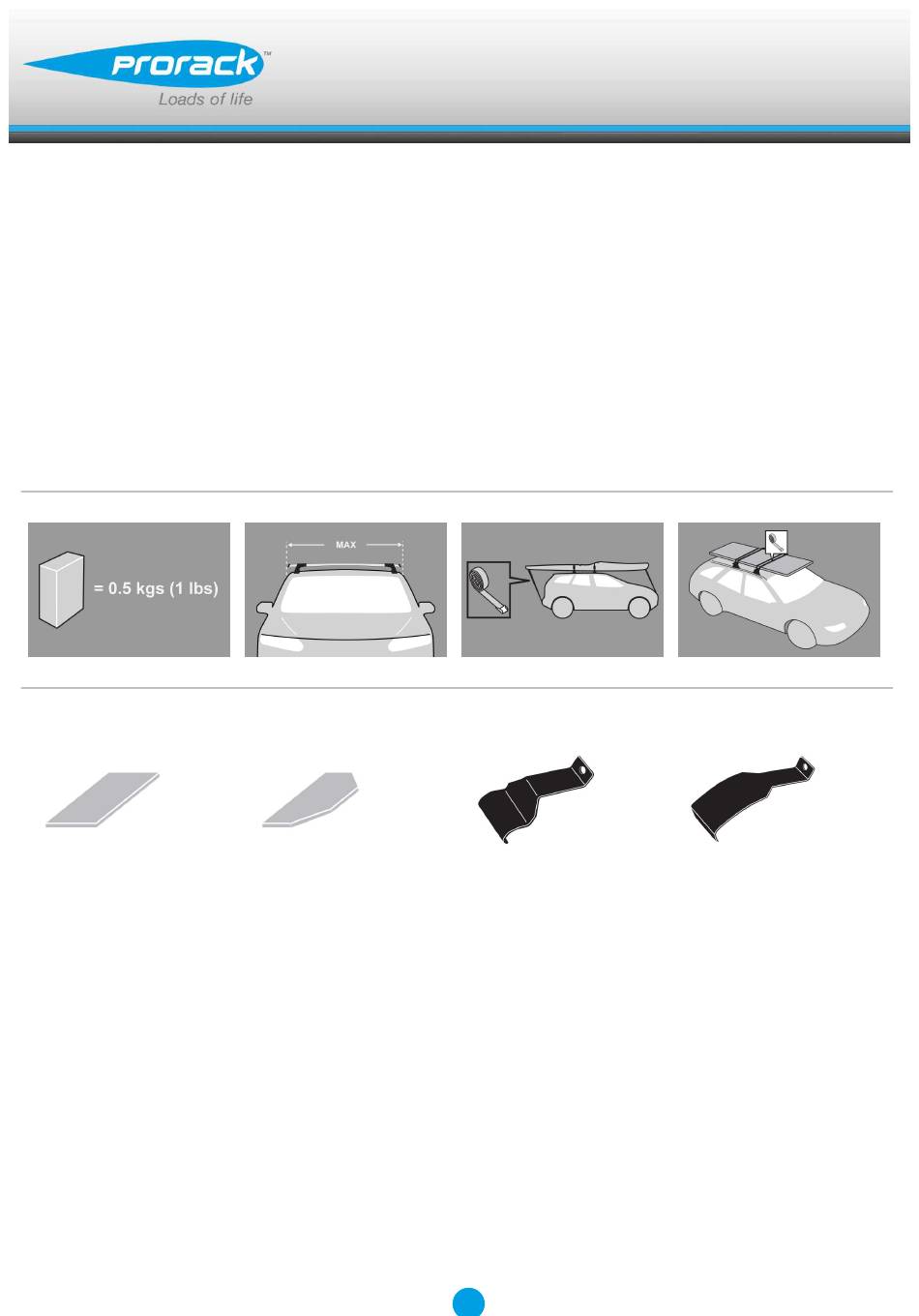

- Page 1 K096 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2C...
- Page 2 Fitting Kit K096 MAX kgs (lbs) Fiat Punto , 3dr Hatch 93-99 75 kgs (165 lbs) 75 kgs (165 lbs) Punto , 3dr Hatch Aug 93-99 75 kgs (165 lbs) 75 kgs (165 lbs)
-
Page 3: First Time Installation

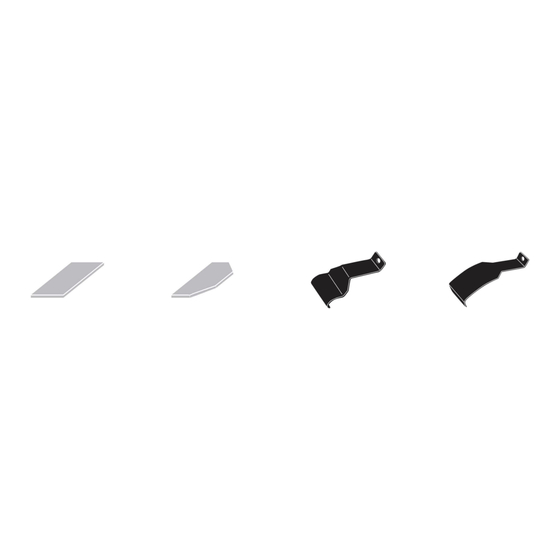

Fitting Kit K096 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K096 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K096 Remove locking screw. NOTE: FRONT CROSSBAR ONLY Apply protective strip as shown. Trim if required. Clamps over rubber door frame mouldings. NOTE: REAR CROSSBAR ONLY Apply protective strip as shown. Trim if required. Clamps directly to edge of roof above rear...
- Page 6 Fitting Kit K096 It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 262B B = 271B Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example;...
- Page 7 Fitting Kit K096 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 8 Fitting Kit K096 Press adjusting screw to adjust the leg positions on the crossbar. Tighten adjusting screw to 5 Nm (3.7 ft lb). Tighten locking screw on both legs evenly.
- Page 9 Fitting Kit K096 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K096 Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 11 Fitting Kit K096 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 12: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 13 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
