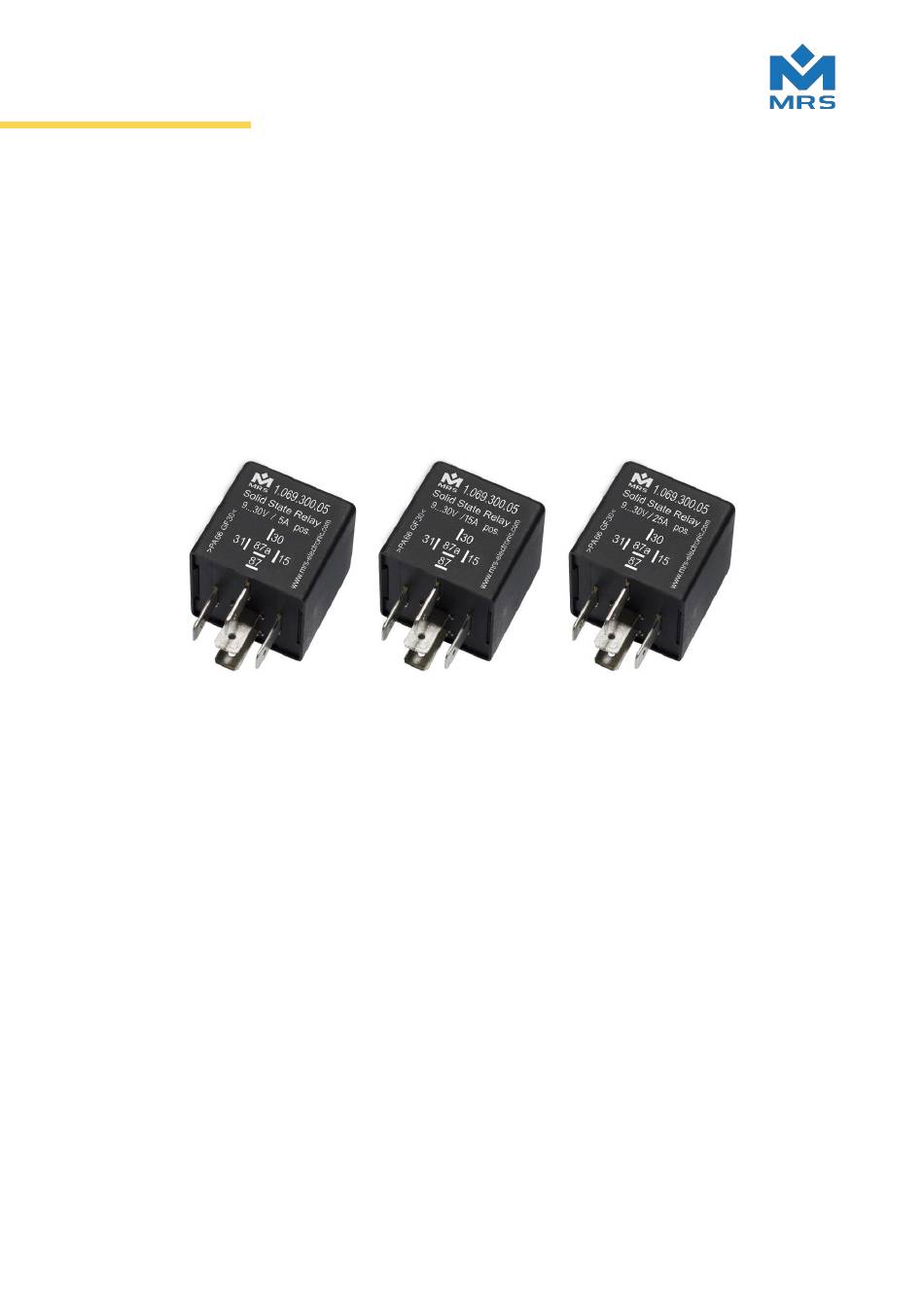

- Page 1 Solid State Relays Operating Instructions For the following types: 1.069.30x.05 Solid State Relay SSR 5 A 1.069.30x.15 Solid State Relay SSR 15 A 1.069.30x.25 Solid State Relay SSR 25 A...
- Page 2 The original operating instructions were composed in German. MRS Electronic GmbH & Co. KG compiled this document with the utmost diligence and based on the current state of technology. MRS Electronic GmbH & Co. KG will not assume any liability or responsibility for errors in content or form, missing updates as well as any possibly resulting damages or drawbacks.
-
Page 3: Table Of Contents
Index Index User Information ..................................4 1.1. About These Operating Instructions ........................4 1.2. Copyright ..................................6 1.3. Warranty Conditions ..............................6 Safety ......................................7 2.1. Hazards..................................... 7 2.2. Staff Qualifications ............................... 8 2.3. Obligations of the Manufacturer of Complete Systems ................9 Product Description ................................ -
Page 4: User Information
Validity of the operating instructions The validity of these instructions goes into effect with the transfer of the product from MRS to the operator. The version number and approval date of the instructions are included in the footer. - Page 5 User Information Warning information in the operating instructions The operating instructions contain warning information before a call to action which includes the risk of property damage or personal injury. The measures for averting risks described in the instructions must be implemented. Warning information is structured as follows: DANGER! SOURCE AND CONSEQUENCE Plus explanation, where needed.
-
Page 6: Copyright
1.3. Warranty Conditions See the General Terms and Conditions MRS Electronic GmbH & Co. KG at https://www.mrs- electronic.com/en/terms Solid_State_Relays_OI1_1.0 | Version 1.0 | 11/2024 Page 6 of 21... -
Page 7: Safety
Safety Safety This chapter includes all the information you should know in order to safely install and operate the product. 2.1. Hazards The solid state relay has been constructed with the newest technology and recognized safety- relevant regulations. Danger for persons and/or property may arise in case of improper use. Lack of compliance with the rules for work safety may result in damages. -
Page 8: Staff Qualifications
Safety Touching of contacts and pins WARNING! DANGER DUE TO MISSING PROTECTION OF TOUCHING! The protection of touching contacts and pins must be ensured. Use the watertight socket including supplied protection caps as per the accessories list in the data sheet to ensure contact protection for contacts and pins. Non-compliance with IP protection class WARNING! DANGER DUE TO NON-COMPLIANCE WITH THE IP PROTECTION CLASS! -
Page 9: Obligations Of The Manufacturer Of Complete Systems
◼ No changes and/or repairs may be performed on the solid state relay. ◼ If the solid state relay falls down, it may no longer be used and must be returned to MRS ◼ to be checked. The manufacturer of the complete system must inform the end customer about all potential ◼... - Page 10 Safety The risk of accidents is reduced if the manufacturer of the complete systems observes the following points: Adherence to the statutory regulations regarding accident prevention, occupational safety ◼ and environmental protection. Provision of all documents required for installation and maintenance. ◼...
-
Page 11: Product Description
Product Description Product Description The solid state relays by MRS Electronic are electronic circuits made of semiconductor components and other electronic components. Semiconductor relays have no moving parts and are therefore wear-free. They are the electronic alternative to classic mechanical relays. -
Page 12: Transport And Storage
The product must be packed in suitable transport packaging and secured against sliding around. During transport, the statutory provisions regarding securing loads must be observed. If the solid state relay falls down, it may no longer be used and must be returned to MRS to be checked. -
Page 13: Intended Use
Operation without the safety measures intended and provided by the manufacturer. ◼ MRS only guarantees/is liable for the solid state relay corresponding to the published specifications. If the product is used in a way not described in these operation instructions or in the data sheet of the solid state relay in question, the protection of the solid state relay will be impaired, and the warranty claim is void. -
Page 14: Assembly
Assembly work may only be performed by qualified staff (see Chapter 2.2 Staff Qualifications). The solid state relay may only be operated after having installed in a fixed location. INFORMATION If the solid state relay falls down, it may no longer be used and must be returned to MRS to be checked. 6.1. -
Page 15: Electric Installation And Wiring
Electric Installation and Wiring Electric Installation and Wiring 7.1. Electric Installation Electric installation work may only be performed by qualified staff (see Chapter 2.2 Staff Qualifications). The electric installation of the unit may only be performed in idle condition. The solid state relay may never be connected or disconnected on-load or when live. -
Page 16: Wiring
Electric Installation and Wiring 7.2. Wiring INFORMATION Always use an external fuse in the power supply line to protect the device against overvoltage. For further information about the correct fuse rating, please refer to the corresponding data sheet. The wiring must be connected with the utmost diligence. ◼... -
Page 17: Commissioning
Qualifications). The unit may only be commissioned if the condition of the complete system complies with the applicable guidelines and regulations. INFORMATION MRS recommends a functional test on site. WARNING! SUDDEN MOVEMENTS OF COMPLETE SYSTEM OR OF COMPONENTS Danger due to unprotected moving components. -
Page 18: Software
Software Software This section is not applicable here. Solid_State_Relays_OI1_1.0 | Version 1.0 | 11/2024 Page 18 of 21... -
Page 19: Fault Removal And Maintenance
Fault Removal and Maintenance Fault Removal and Maintenance INFORMATION The solid state relay is maintenance-free and may not be opened. If the solid state relay exhibits any damages on the casing, locking catch, seals or flat plugs, it must be shut down. Fault removal and cleaning work may only be performed by qualified staff (see Chapter 2.2 Staff Qualifications). -
Page 20: Cleaning
Fault Removal and Maintenance 10.1. Cleaning INFORMATION Damages due to improper cleaning agents! The solid state relay may be damaged when cleaning it with high-pressure cleaners, steam jets, aggressive solvents or scouring agents. Do not clean the solid state relay with high-pressure cleaners or steam jets. Do not use any aggressive solvents or scouring agents. -
Page 21: Disassembly And Disposal
Disassembly and Disposal Disassembly and Disposal 11.1. Disassembly Disassembly and disposal may only be performed by qualified staff (see Chapter 2.2 Staff Qualifications). Disassembly of the unit may only be performed in idle condition. WARNING! SUDDEN MOVEMENTS OF COMPLETE SYSTEM OR OF COMPONENTS Danger due to unprotected moving components.
