Summary of Contents for ABBI-AEROTECH Abbifan 140-XXP-2

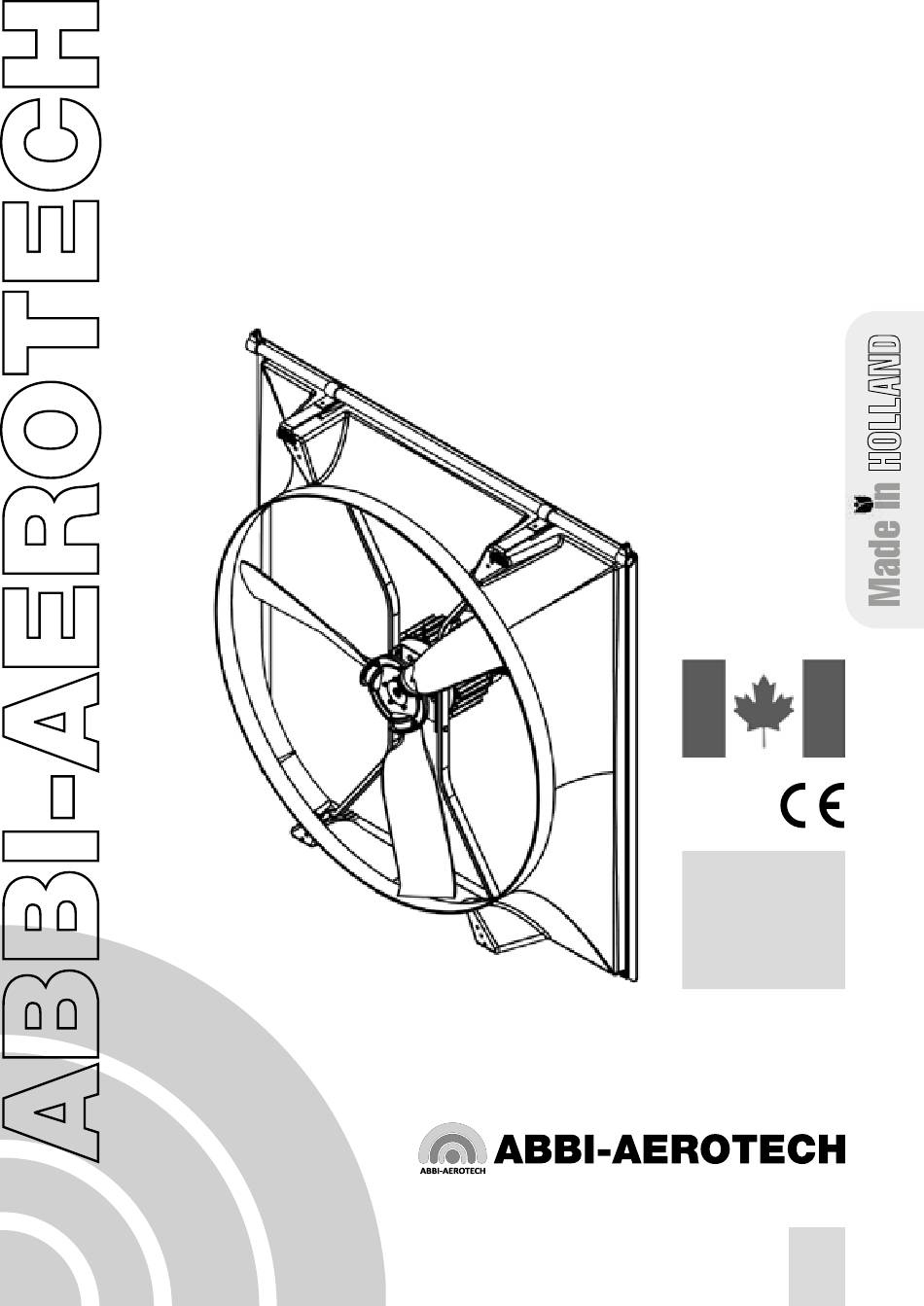

- Page 1 Abbifan 140-XXP-2 User manual dairy cattle fan 230V 230V single-phase single-phase The ventilation experts...
- Page 2 ©Abbi-Aerotech B.V. This brochure has been compiled with the utmost care. The contents of this brochure and any errors are subject to change. Text and illustrations: Abbi-Aerotech B.V.
-
Page 3: Canadian User Manual Abbifan 140-Xxp-2 Dairy Cattle Fan
Canadian user manual Abbifan 140-XXP-2 dairy cattle fan Geachte klant, Dear customer, Thank you for the purchase of the Abbifan 140-XXP-2 dairy (230V/1 phase) cattle fan. Bedankt voor de aanschaf van de Abbifan 140-XXP ventilator. n 140-XXP ve This operating manual is a translation and extension of the original user manual Abbifan 140-XXP, Deze handleiding bevat alle benodigde informatie om snel vertrouwd te raken met het product. -
Page 4: Table Of Contents
The ventilation experts Contents Canadian user manual Abbifan 140-XXP-2 dairy cattle fan Contents Precautionary measures and warnings General product information 2.1 Technical specifications 2.2 Key components 2.3 Rating plate 2.4 EC Declaration of Conformity Assembly, installation and commissioning 3.1 General 3.2 Logistics 3.3 Placement of the fans... -
Page 5: Precautionary Measures And Warnings
Clean with a cloth or brush. Do not use large quantities of water. • A motor protection switch is not necessary: the integrated voltage controller automatically switches off the motor in the event of excessive voltage. • The Abbifan 140-XXP-2 fan was developed for use in (dairy) barns and may not be used in other spaces. This because of safety regulations concerning fire and the danger of explosion in areas with chemical substances/gases. • A mains switch must be fitted to ensure that the entire system can be disabled (see section 3.7)! -
Page 6: General Product Information
2. Propeller ‘Wave’, synthetic 955083 3a. Protective grille back 95574 3b. Protective grille front 95516 B 4. Motor with integrated voltage controller 96019 5. Motor support 95573 A 6. Insert (1,2,3 en 4) 95596/97/98/99 User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 7: Rating Plate
Made in The Netherlands Absorbed power: 0.53kW / 2.55A Abbi-Aerotech B.V. Current to driver: 1-phase 230V 50/60Hz Smederij 23, 3371 MC Hardinxveld-Giessendam Input signal to motor driver: 0-10V E-mail: sales@abbi-aerotech.com www.abbi-aerotech.com EC Declaration of Conformity User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 8: Assembly, Installation And Commissioning
Storage: Store the product clean and dry. Packaging: The packaging must be disposed of in accordance with local regulations. Removal of waste: Waste components must be separated and disposed of in accordance with local regulations. Recycling: The orifice panel is manufactured from recycled synthetic and is in itself recyclable! User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 9: Placement Of The Fans
The air velocity and the throw length of the fan determine the distance between the fans. In actual practice this is between 14 up to 16 metres (46 - 52.5ft) for the Abbifan 140-XXP-2. (8.9ft) Longitudinal ventilation approx. -
Page 10: Assembly Instructions
A small piece of chain (5-10cm / 2-4”) is then needed to ensure that the fan remains moveable. 2b/c/d Standard suspension Abbifan 140-XXP-2 6a/b Length extension #Cross tubes (5) tubes (3) 3 metres (9.85ft) 1 piece 5 metres (16.4ft) 2 pieces 6 metres (19,7ft) 3 pieces User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 11: Protective Grilles
User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 12: Electrical Installation
3 cores (with a connector). The mains power supply cable must be suitable for the number of fans per phase. An outlet or an isolating switch can be used for this purpose, which offers the possibility of switching off the fan at that location (for example, in the event of failure or maintenance work). User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 13: Connecting Fan To Fan Controller
This drawing is the exclusive property of I.M.E. S.p.A. and cannot be reproduced or disclosed to any third party without the authorization of I.M.E. S.p.A. - Questo disegno è di esclusiva proprietà di I.M.E. S.p.A. e non può essere riprodotto o reso noto a terzi senza l’autorizzazione di I.M.E. S.p.A. QUOTE SENZA INDICE SCALA TRATT. TERM. DI TOLLERANZA: S.S. User manual Abbifan 140-XXP-2 dairy cattle fan TRATT. SUPERF. GRADO DI DISEGN. PRECISIONE. DUREZZA CONTROLL. -
Page 14: Positioning The Temperature Sensor (Automated Fan Control)
1 group. The T must be mounted at the correct location in the barn and connected sensor to the DCC-Touch using the supplied sensor cable. An additional Tsensor is required for controlling 2 groups. User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 15: Positioning The T
The directions below apply to both single and multiple fan rows in 1 group. Positioning the T (see figure 3.9.2.): sensor 1. At a set height: 260 cm (8.5ft) above the slatted/solid floor (= ground level). 2. Always in between the first two fans (as viewed in the direction the fans are blowing), approxi- mately in the centre of the beam above the cubicles. User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 16: Humidity Sensor
DCC-Touch with a separate sensor cable. This sensor cable may be positioned closer to the ground (away from cow traffic). Note: the sensor must never be allowed to become wet. This may cause severe damage! User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 17: First Use
3. Remove dust or dust build-up with a brush or cloth. 4. Check to ensure that the motor is firmly attached. Grilles 1. Clean grilles in good time. 2. Dirty grilles impede the airflow. Note: In a dusty environment fans must be cleaned regularly for optimal cooling and to prevent imbalance! User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 18: Inspections
Do this every year. Components that have become loose must be re-tightened. Control equipment Remove dust and dirt from controllers and sensors using a soft brush or cloth. Never use a high-pressure cleaner on electrical appliances! User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 19: Problems And Solutions
Fan stops after some time Motor parameter settings Measure/check motor and ad- deviate just parameter Disconnect the power supply for 5 minutes and then restart Replace electronic part In the event of a malfunction, contact your installer. User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 20: Questions/Complaints
Our products are manufactured in accordance with applicable international standards. If you have any questions about using our products or if you are considering special applications, please contact Abbi-Aerotech, your dealer or installer. User manual Abbifan 140-XXP-2 dairy cattle fan... -
Page 21: Warranty Abbifan 140-Xxp-2
Warranty Abbifan 140-XXP-2 The Abbifan 140-XXP-2 motor and the inverter have a separate pro rata declining warranty (based on straight line depreciation) against manufacturing defects. Each year of depreciation corresponds to a fixed percentage. We will be happy to provide you with the guarantee conditions applicable to your respective product on request. -
Page 22: Notes
........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................User manual Abbifan 140-XXP-2 dairy cattle fan... - Page 23 ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................User manual Abbifan 140-XXP-2 dairy cattle fan...
- Page 24 Abbi-Aerotech B.V. Hardinxveld-Giessendam The Netherlands Tel. +31 184 711 344 sales@abbi-aerotech.com www.abbi-aerotech.com...
