Summary of Contents for ProMeister PT5528

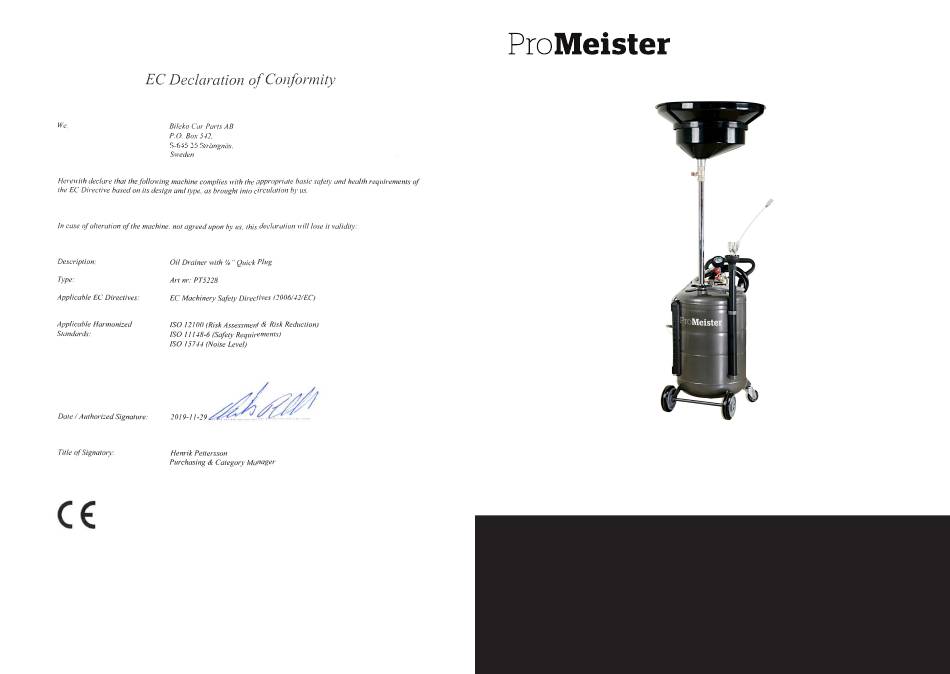

- Page 1 User Guide Oil Drainer with 1/4” Quick Plug Produced in China for Bileko Car Parts AB P.O. Box 542 S-645 25 Strängnäs, Sweden Art. Nr: PT5528 RVNR-03 Tel: +46 771 72 00 00 | www.promeister.com...
-
Page 2: Product Assembly
• Do not modify any component of the equipment • Only use original spare parts • Our technical office is at you full disposal for any information you may need Product Specifications Art. No: PT5528 Air Inlet: 1/4” Quick Plug Extension Funnel: Capacity: 100L/26.4Gal... -
Page 3: Product Operation
Product Assembly Product Operation Fig 1: Assemble the handle(B) and the air inlet Fig 2: Assemble the vacuum gauge(D) and turn 1. SUCKING fitting, turn off the ball valve(H). off the ball valve(J). Fig 5: Close all the valves Fig 6: Connect the air supply, Fig 7: Connect the probe (S), (K, P, J, H, I, L). -
Page 4: Troubleshooting
Product Operation Exploded & Part List 3. DRAINING Fig 10: Close all the valves (K, Fig 11: Close the handwheel(E) Fig 12: Connect the air supply, P, J, H, I, L). clockwise direction, put the and open the valve(H) for spout(M) into the waste oil tank, draining. - Page 5 Oil Collecting Bowl Assembly & Part List Reservoir & Part List Part No. Description Part No. Description Handle *6-11 Wheel U-type hook 6-12 Reservoir assembly Screw 6-13 Bolt Part No. Description Part No. Description *6-4 Butterfly valve 6-14 O-ring Check nut Supporting tube *6-5 Swivel fitting...
- Page 6 Vacuum Assembly & Part List Part No. Description Part No. Description *6-1 Quick plug *6-13 O-ring *6-2 Ball valve 6-14 Inlet tube Muzzle 6-15 Valve sleeve Vacuum Meter 6-16 O-ring Elbow 6-17 Ball Y-shape adapter 6-18 Screw *6-7 O-ring *6-19 O-ring Muffler shaft 6-20...
