METAL DETECTOR

USER MANUAL

Table of Contents

Need help?

Do you have a question about the VELES and is the answer not in the manual?

Questions and answers

Summary of Contents for Mars VELES

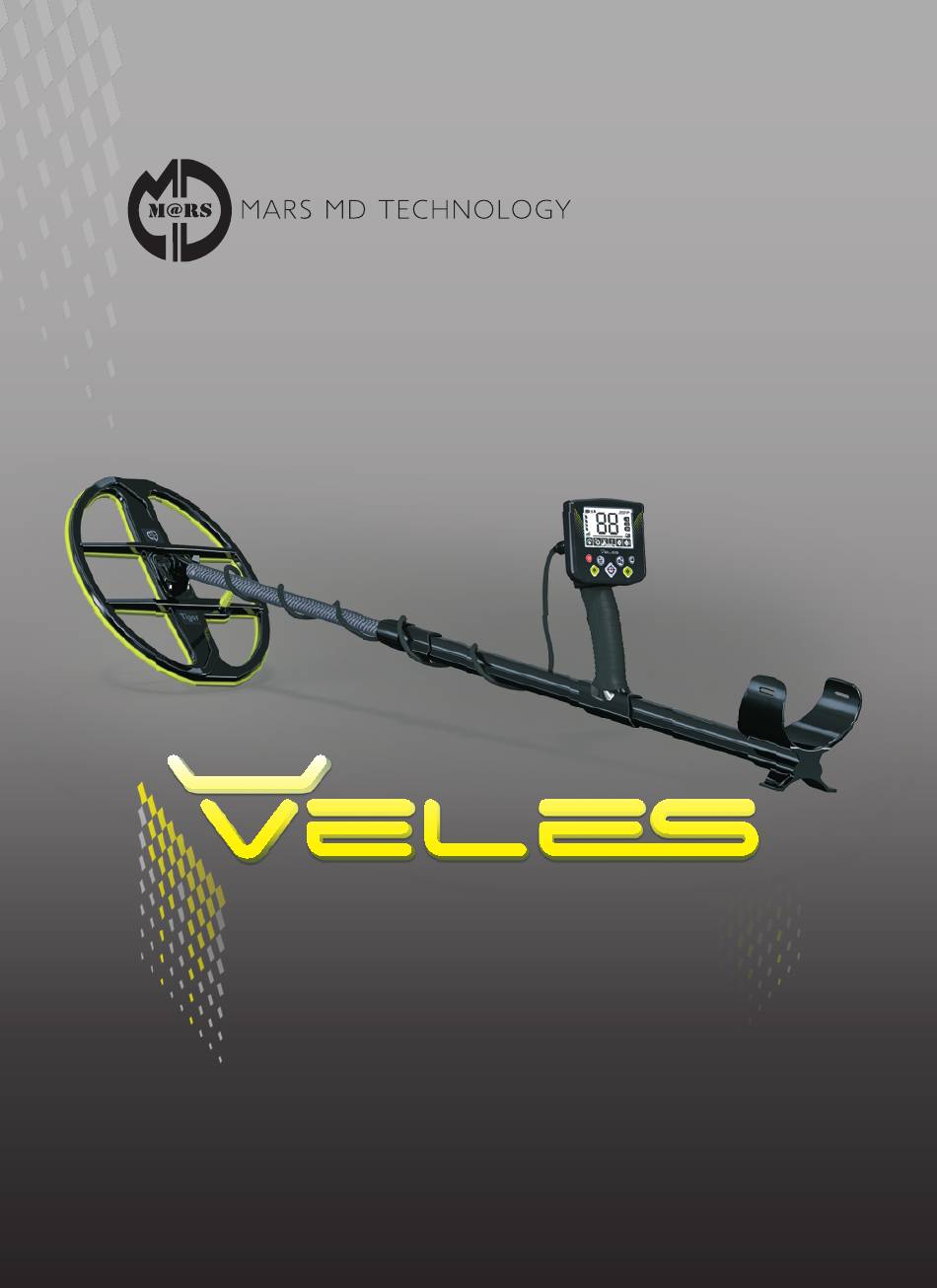

Page 1 METAL DETECTOR USER MANUAL...
Page 3: Table Of Contents
TABLE OF CONTENTS: 1. Package Contents 2. Assembly 3. Controls 4. Quick Start 5. Operating Principle 6. Detecting Tips 7. Settings Menu 8. Ground Balance 9. Ground Balance Autotrack 10. PINPOINT 11. Coil Current 12. Backlight 13. Depth Gauge 14. TARGET ID 15.
Page 4: Package Contents
PACKAGE CONTENTS ПРИНЦИП РАБОТЫ Before you get started with assembling your Veles metal detector, make sure the package includes: Tiger search coil Control box Coil cover Connector MDLink module protection cap Shaft AC adapter Set of rubber Warranty card with 2 USB ports...
Page 5: Assembly
ASSEMBLY Assembly of the Veles metal detector proceeds through the following simple steps: Attach the control box to the end of the shaft handle. Adjust the shaft length to ﬁt your height and tighten the twist lock to secure. Loosening direction...
Page 6: Controls
CONTROLS Highly Mineralized Wireless Connection Indicator Backlight Ground Indicator Appears when the built-in transmitter is activated. Indicator Starts blinking while detecting A digit nearby stands for the number conditions of highly mineralized ground. of the current radio channel. Appears when the LCD backlight is on.
Page 7: Quick Start
QUICK START The Veles is extremely easy to use, so even a novice user is able to quickly understand the settings. To get started, you just need to take the metal detector out of the box, assemble it and follow a few simple steps:...
Page 8: Operating Principle
The basic principle of the Veles’ operation is induction balance (IB), which is achieved by using two induction coils (the transmitter and the receiver ones) inside the detector search coil 1 . When a metal object appears in proximity to this coil 2 , the inductive balance is disrupted and this results in an unbalanced signal at the output of the receiver coil 3 .
Page 9: Detecting Tips
The Veles is a motion detector, it means you should constantly move the coil over the ground. If the coil is motionless, a target won’t be detected. Incorrect movement of the coil can cause you to potentially miss a target or can lead to false signals.
Page 10: Settings Menu
SETTINGS MENU BASIC SETTINGS of the Veles include 6 options. Press for the ﬁrst time and the current setting and its Target ID value will be shown on the display. If you want to return to the previous setting, press...
Page 11 S1 ‹S4 ‹S3 ‹S4. SEARCH MODE The Veles supports six operating modes, each of which is intended to be used in diﬀerent search conditions. Each mode is speciﬁcally optimized to provide maximum performance, in normal operating conditions, for speciﬁc detection area. Evaluate your detecting spot and choose the most suitable mode. The device will remember its last search mode used and will restore it when you restart.
Page 12 SETTINGS MENU › bH (BEACH) The mode › dP (DEPTH) The special operating mode that › CL (CLEAR ID) This mode has all the for detecting on the provides maximum detection depth and is advantages of Clear ID technology: a target beach, seashore and in capable to ﬁnd large sized targets.
Page 13 SETTINGS MENU TARGET TONE TONE PITCH & TONE TYPE (Advanced Setting) This setting determines the number of diﬀerent This advanced setting allows you to adjust the tone pitch for tones you will hear for diﬀerent types of the speciﬁc conditions you are detecting in and select the type of target tone. targets.
Page 14: Ground Balance
GROUND BALANCE Ground balancing is a mandatory procedure that helps to It’s very important to always set the ground reduce the detector’s reaction on mineralized ground. By using balance before starting the search. If the the ground balance function, the device adapts to the soil detector isn’t properly ground balanced, its searching abilities may be reduced that way causing unstable conditions you are on, in order to minimize false detection...
Page 15: Pinpoint
A target signal in this mode will be variable in both frequency and level of sound volume. The scale on the LCD additionally helps to visually identify the position of a detected target and estimate its burial depth. The Veles has two PINPOINT modes: Determining a target’s precise location and Determining a target’s size. Press and hold to choose one of these modes.
Page 16: Backlight
BACKLIGHT The Veles LCD is equipped with a built-in backlight for operation in nighttime or other insuﬃcient illumination conditions. It has 4 brightness levels. The last selected level will be saved in the detector’s memory after it’s turned oﬀ. When you turn on the device, the LCD backlight - even if it’s switched oﬀ...
Page 17: Battery Charging
BATTERY CHARGING The Veles is powered by a built-in lithium-ion battery. While in operation, the detector is capable of continuously monitoring the current battery charge level which will be shown on the LCD panel, as well as has a built-in automatic battery charge controller.
Page 18: Connecting Headphones
CONNECTING HEADPHONES HOW TO CONNECT YOUR HEADPHONES TO THE MDLINK MODULE: 6.35 mm (1/4’’) Plug your headphones into a headphone jack on the Headphone Socket MDLink module. Turn on the detector and the module (sequence doesn't Charging Socket matter). Quick press to step through the channel selection.
Page 19: Firmware Update
FIRMWARE UPDATE The Veles is a modern metal detector with a feature that enables Before starting the ﬁrmware update, ﬁrmware updates (OTA -DFU) via Bluetooth. This update procedure could check the battery charge level of the previously be complicated and tricky, but today your smartphone and Veles control box.
Page 20: Factory Settings
FACTORY SETTINGS All settings are saved in the Veles detector`s memory after it’s turned oﬀ and are automatically restored after it’s turned on. TO RETURN YOUR SETTINGS TO THEIR FACTORY PRESETS, PERFORM THE FOLLOWING STEPS: Turn oﬀ the detector. Press and hold...
Page 21: Maintenance & Safety
MAINTENANCE & SAFETY The Veles is a high-quality electronic device, therefore proper care and maintenance is essential to ensure its continuous reliable operation. VELES CARE: GENERAL CARE: • • Do not leave the detector in extreme cold or heat (e.g. in a hot car) as well as in damp Do not use solvents to clean locations.
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS VELES METAL DETECTOR Coin Ø25 mm ≈ 45-50 cm Aluminum can DETECTING RANGE* ≈ 80 cm Max range ≈ 120 cm Low frequency 5,7... 5,9 kHz Medium frequency OPERATING FREQUENCY 11,5...12,0 kHz High frequency 24,0...24,4 kHz Visual INDICATION...
