8800 Series Overfill and Ground Protection Monitor
IMPORTANT: This Quick Start Reference is intended to provide an overview of
features and functions of the 8800 Series Rack Monitors. Refer to the Installation
and Operations Manuals included with each unit for detailed information.

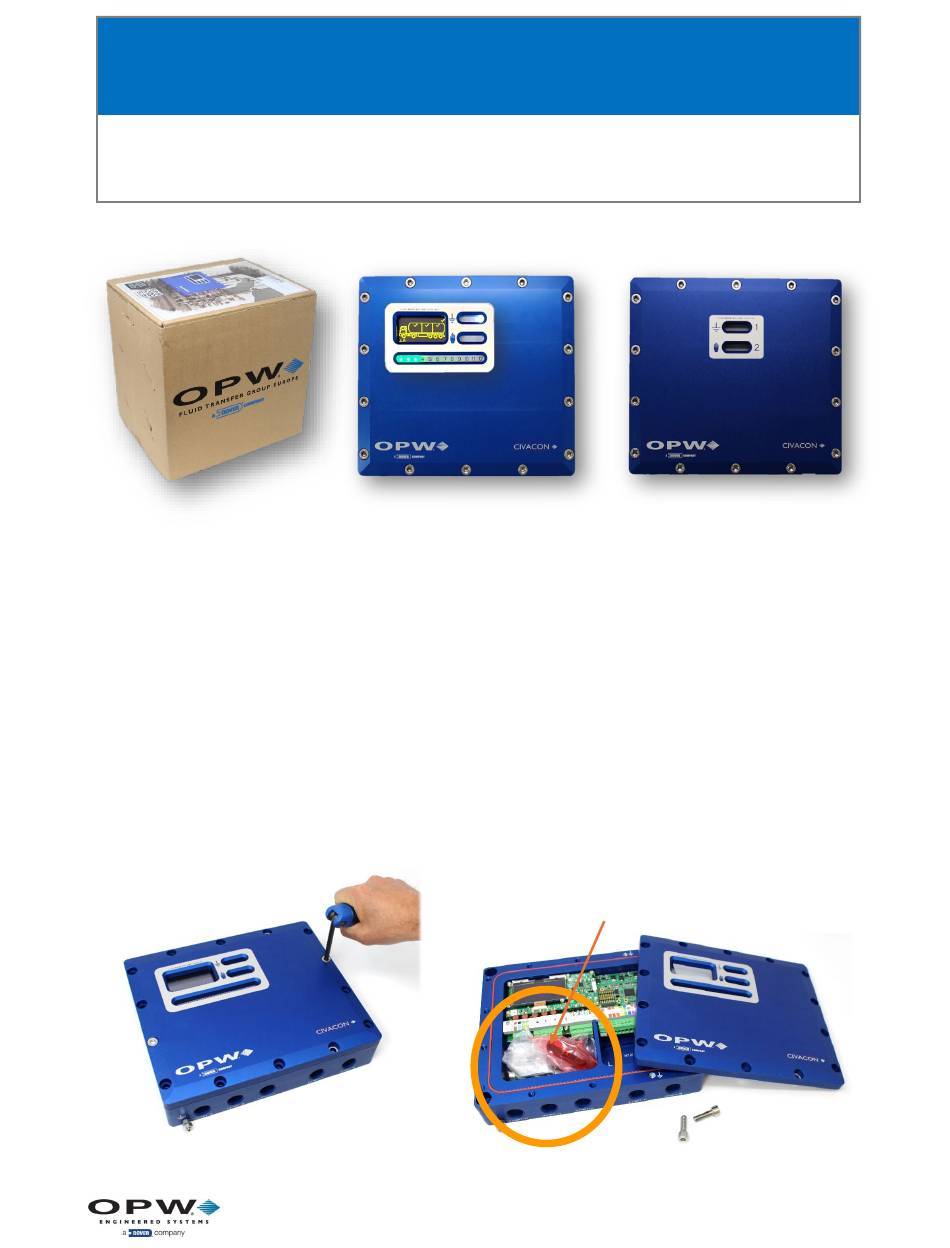

Unboxing Your Rack Monitor
Inside each carton you will find the following items:
Rack Monitor (The image on the carton may not represent the actual monitor inside)
Installation Manual
Operations Instructions
QR Code to access to current product information and support.
The rack monitor face is attached with 2 bolts. Additional hardware and the bypass key are
located inside the rack monitor body. With an Allen wrench, remove the bolts that secure the
front. Remove the cover to retrieve two bags with additional bolts and the bypass key. After
the rack monitor has been installed, power attached, and switches have been configured (see
the Installation Manual for information), reinstall the face plate ensuring that all 14 bolts have
been securly installed and tightened
Quick Start Reference
.
8800 Series Rack Monitor Quick Start Reference
Additional Hardware and
Bypass Key
Page: 1
Advertisement
Summary of Contents for OPW Civacon 8800 Series
- Page 1 Quick Start Reference 8800 Series Overfill and Ground Protection Monitor IMPORTANT: This Quick Start Reference is intended to provide an overview of features and functions of the 8800 Series Rack Monitors. Refer to the Installation and Operations Manuals included with each unit for detailed information. Unboxing Your Rack Monitor Inside each carton you will find the following items: ...
- Page 2 When the 8870 Rack Monitor is powered-up and ready to be connected to the truck, the following graphic and LED lights will be displayed: Flashing Blue OPW Plug Graphic Steady Red LED Lights Ready to Connect ...
- Page 3 The Rack Monitor then checks to make sure the truck is grounded and sensors are ready. If a truck is permissible to fill, the following will be displayed (see below for variances in graphics and LED lights based on the truck wiring configuration). Flashing Blue and Check Mark White LED Lights...
- Page 4 Depending on the truck wiring configuration, the OLED graphic will vary. Below is a summary of the graphics and LED lights that are displayed in a “Permissible” and “Non-Permissible” condition: Truck Wiring Permissible Non-Permissible Configuration OLED Display OLED Display 2 Wire Thermistor Green Plug Note: In Canada, the display may show 8...
- Page 5 Following is a summary the LED lights for the 8851N Rack Monitor status based current status: When the 8851N Rack Monitor is powered-up and ready to be connected to the truck, the Display 1 will flash blue and Display 2 will be a solid red Flashing Blue Ready to Connect Solid Red...
-
Page 6: Technical Support
Bypass Key Instructions Although it is NOT recommended, the 8800 Series Rack Monitors can be bypassed in a faulty or wet sensor condition. Following is a brief overview of how to bypass both the 8870 and 8851N. Please refer to the Operations Manual for full details. 8870 Rack Monitor 8851N Rack Monitor A Red Bypass Key is shipped with each rack monitor unit.
