Summary of Contents for METRISO B530

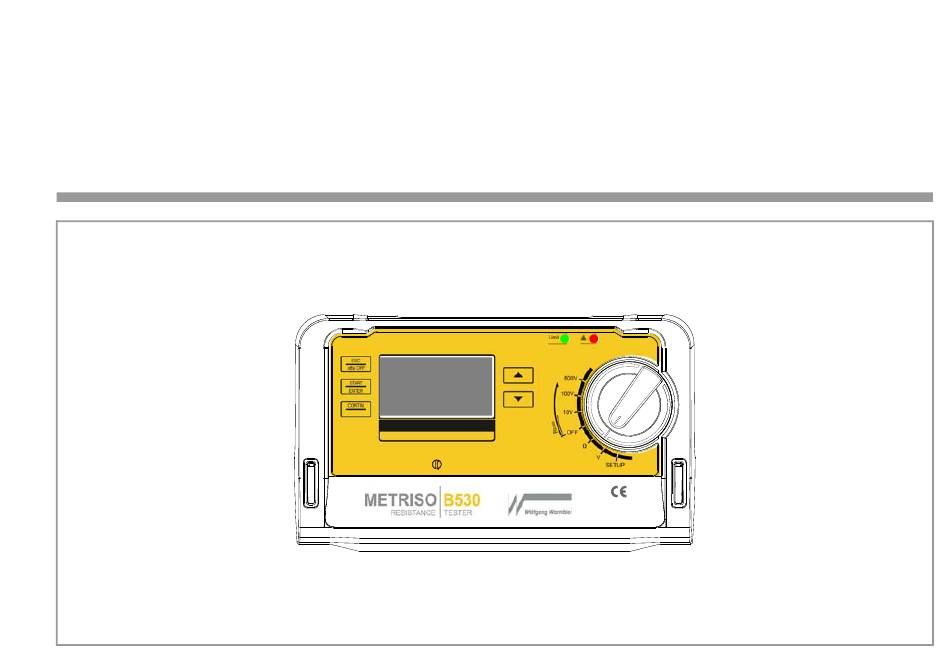

- Page 1 Operating Instructions METRISO B530 3-349-861-03 High Ohmic Resistance Tester for resistance to ground & surface resistance measurements 3/12.15 CAT II 600V...
- Page 2 Features Overview Scope of delivery 1 High ohmic resistance meter 1 Set batteries (8 ea. in battery holder) METRISO B530 1 Carrying strap Article number M550W 1 KS17-4 cable set Measurements 1 Alligator clip red (CAT III 1000 V) ✓...
- Page 3 Inserting the Battery Holder (side view) Connections (housing top) Battery Compartment Lid COM SHIELD Battery Holder Measuring Battery Holder Connections Shielded Contacts Cable G500/G1000) Connector with Battery Shielded Cable, Compartment Option KS-C (Z541F) Contact Spring User Interface...
- Page 4 User Interface (METRISO B530) Red LED: limit value exceeded / fallen below of Green LED: limit value within range Exit menu Scroll up: Activate instrument Red LED: – SETUP: parameter selection from standby LCD panel – Test/Measuring voltage with device switched on –...
- Page 5 Digital Display Symbols Battery level indicator 2 Digital display with decimal point and polarity display 3 Analog display pointer: bar graph or pointer, see A.diSP parameter on page 12 Triangle at display: indicates overranging 4 DC/AC: Selected current type 5 ISO xxxV: ESD measurement: selected test voltage 6 Ω...
-
Page 6: Table Of Contents
Contents Page Contents Page Applications ................7 Measuring Direct, Alternating and Pulsating Voltage – V Function ..........22 Safety Features and Precautions ..........8 Measuring Resistance – Ω Function ........23 Initial Start-Up ................9 3.1 Battery test ..................9 Characteristic Values .............. 24 3.2 Installing or Replacing Batteries .............9 List of Abbreviations and their Meanings ........ -
Page 7: Applications
Installation of selected protective measures • Periodic inspection of protective measures With the help of the METRISO B530, you can perform all relevant ESD measurements in accordance with IEC 61340-4-1, IEC 61340-2-3 and IEC 61340-4-5. The following measurements and tests can be performed with the METRISO B530: •... -
Page 8: Safety Features And Precautions
Safety Features and Precautions The electronic measuring and test instrument is manufactured Meaning of Symbols on the Instrument and tested in accordance with safety regulations IEC/EN 61010-1 Warning concerning a source of danger / VDE 0411-1. When used for its intended purpose, safety of the (attention: observe documentation!) operator, as well as that of the instrument, is assured. -
Page 9: Initial Start-Up
Initial Start-Up Attention! Battery test Make sure that all of the batteries are inserted with correct Four different battery symbols, ranging from fully depleted to fully polarity. If just one battery is inserted with reversed polar- charged, continuously indicate the momentary charge level in the ity, it will not be recognized by the instrument and may upper left-hand corner of the display result in leakage from the batteries. -
Page 10: Query And Set Device Parameters - Setup Function
Query and Set Device Parameters 3.3.1 Paths to the Various Parameters – SETUP Function 1nFo ← Main Menus → info START START ENTER stby OFF ENTER stby OFF SETUP Query Parameter ↓ Set Parameter ↓ Ð Turn the rotary switch to the SETUP position. bAtt: APoFF info appears at the display. -
Page 11: Querying Parameters - Info Menu (As Moving Letters)
List of all parameters (alphabetical order) 3.3.3 Entering Parameters – SEt Menu Parame- Page: Header APoFF – Specified Time for Automatic Shutdown and Continuous ON Shutdown time APoFF can be specified with this parameter. The d iSP 12: 0.diSP – Show/Hide Leading Zeros instrument is switched off automatically if the measured value d iSP 12: A.diSP –... - Page 12 A.diSP – Analog Display: Select Display Mode 0.diSP – Show/Hide Leading Zeros One of two different display modes can be selected for the analog This parameter determines whether or not leading zeros will display: appear in the measured value display. bArG: bar graph •...
-
Page 13: 3.3.4 Default Settings
3.3.4 Default Settings Previously entered changes can be undone, and default settings can be restored. This may be advisable under the following cir- cumstances: • After the occurrence of software or hardware errors • If you are under the impression that the instrument does not work correctly Ð... -
Page 14: General Operation
General Operation Optical Indicators Status Function – Cause The test leads are connected to Measuring range observed the “+” and “COM / SHIELD” – = 10 V, R < 1 MΩ Limit jacks. Measuring range observed – = 100 V, R >... -
Page 15: Measured Value Display
Measured Value Display The following appear at the LCD panel: • Measured value in digital format • Measured value in analog format as bar graph or pointer • Unit of measure Measured values for automatic measuring sequences are retained at the display as digital values until the next measure- ment sequence is started, or until automatic shut-off occurs. -
Page 16: Esd Measurements
ESD Measurements Connection START Note ENTER Checking the Measurement Cables Before performing resistance measurement, the test probes on the measurement cables should be short-cir- cuited in order to assure that the instrument displays a value very close to 0 Ω (see section 8). This serves to pre- vent faulty connections or to identify any interruptions in the measuring cables. -
Page 17: Ending The Measurement
at a voltage of 500 V. The resulting electrical shock is not life Special Case: Capacitive Devices Under Test endangering. However, the noticeable shock may lead to injury (e.g. resulting from a startled reaction etc.). Caution! Note If measurement is performed at a capacitive object such The instrument’s batteries are exposed to excessive as a long cable, it becomes charged with up to approx. - Page 18 Measuring Resistance to ground R or R according to IEC 61340-4-1 Ð Connect the red measurement cable from the “+ Pole” to the measuring electrode. g/gp Ð The black, shielded measurement cable with the double “COM / SHIELD” connectors is connected to protective earth when measuring R , or to a groundable point when measur- ing R...
-
Page 19: Measuring Resistance Through A Person To Ground Rg System Or
Measuring Resistance through a person to ground R or R g System gp System Ð Connect the red measurement cable from the “+ Pole” to the measuring electrode. g-sys Ð The black, shielded measurement cable with the double “COM / SHIELD” connectors is connected to protective earth when measuring R , or to a groundable point when g System... -
Page 20: Measuring Point-To-Point Resistance
Measuring Point-to-Point Resistance Ð Connect the red measurement cable from the “+ Pole” to one 5.6.1 Measuring Point-to-Point Resistance R with measuring electrode and the black, shielded measurement 2 Measuring Probes according to IEC 61340-2-3 cable with the double “COM / SHIELD” connectors to the other electrode. -
Page 21: Measurement Of Volume Resistance Rv According To Iec 61340-2-3
Measurement of Volume Resistance R according to IEC 61340-2-3 +Pol +Pol COM / SHIELD COM / SHIELD Counter-Electrode (e.g. for determining the volume resistance of a material) Ð Connect the red measurement cable from the “+ Pole” to the measuring electrode and the black, shielded measurement cable with the double “COM / SHIELD”... -
Page 22: Measuring Direct, Alternating And Pulsating Voltage - V Function
Measuring Direct, Alternating and Pulsating Voltage – V Function You can measure direct voltage, as well as sinusoidal alternating voltage with frequencies ranging from 45 to 65 Hz with this test Max. instrument. 600 V Ð Select the V measuring function with the rotary switch. COM SHIELD Ð... -
Page 23: Measuring Resistance - Ω Function
Measuring Resistance – Ω Function Ð Connect the device under test to the + and COM jacks. Resistance can only be measured at voltage-free objects. If mains voltage or external voltage is applied to the measurement inputs, measurement cannot be started. kΩ... -
Page 24: Characteristic Values
Characteristic Values Meas. Reso- Measuring Overload Range Measuring Range Intrinsic Uncertainty Qty. lution Uncertainty Capacity ±(5% rdg. + 10 d) ±(7% rdg. + 10 d) 10 kΩ 1,0 kΩ ... 9,99 kΩ 0,01 k ±(5% rdg. + 3 d) ±(7% rdg. + 3 d) 100 kΩ... - Page 25 Reference Conditions Power Supply Reference temperature+ 23 °C ±3 K Batteries 8 ea. 1.5 V mignon cells (8 ea. size AA) (alkaline manganese per IEC LR14) Relative humidity 40 ... 75% or 8 rechargeable NiMH batteries (must be Measured quantity recharged externally) frequency 45 Hz ...
- Page 26 Electromagnetic Compatibility (EMC) Displays Interference emission EN 61326-1:2013 class B Digital display With additional bar graph or pointer depending on selection with a.disp Interference immunity EN 61326-1:2013 parameter, backlit (transflective); leading zeros can be suppressed at the Ambient Conditions digital display depending on 0.disp Accuracy parameter;...
- Page 27 Display Values in Consideration of Measuring Uncertainty Voltage at Device Under Test During ESD Resistance Measurement Table for determining minimum display values for ESD resistance Measuring voltage U at the device under test depending upon its in consideration of the instrument’s measuring uncertainty. resistance R at nominal voltage U = 10, 100 and 500 V:...
-
Page 28: List Of Abbreviations And Their Meanings
List of Abbreviations and their Meanings If leakage has occurred, the electrolyte must be carefully and completely removed with a damp cloth before installing new bat- teries. Voltage Test voltage or nominal voltage Replacing the Batteries U AC/DC Measured voltage (sinusoidal alternating voltage) See section 3.2 and section 10.3. -
Page 29: 2Electronic Fuse
Checking the Fuse 10.2.2 Electronic Fuse If a resistance measuring range is selected with the rotary switch This fuse protects resistance measurements (switch position Ω) with a blown or defective fuse in the instrument, and if the instru- from overloading (electronic hardware circuit). ment is turned on with the switch in this position, fuse appears at „EL.Fu“... -
Page 30: Appendix
Appendix 11.2 Attaching the Test Probe Holder to the Carrying Strap Detach the strap from the instrument: 11.1 Attaching the strap to the test instrument Turn out the slotted screw (M3) at the bottom. Feed the strap through from the front of the test instrument and secure it with the slotted screw (M3). - Page 31 Feed the strap through from the front Slide the strap through the test probe of the test instrument and secure it holder. with the slotted screw (M3). Front View Side View Strap Clasp Front Back Clasp Eyelet for Attachment to Tester (METRISO ...)
-
Page 32: Technical Data For Measurement Cables (Scope Of Delivery: Ks17-4 Safety Cable Set)
11.3 Technical Data for Measurement Cables Using the KS17-4 (scope of delivery: KS17-4 safety cable set) Electrical Safety Attention! Maximum rated voltage 600 V 1000 V 1000 V Observe the instrument’s maximum values for electrical safety. Measuring category CAT IV CAT III CAT II Measurements per DIN EN 61010-031 may only be per-...
