Summary of Contents for Acekool HL578

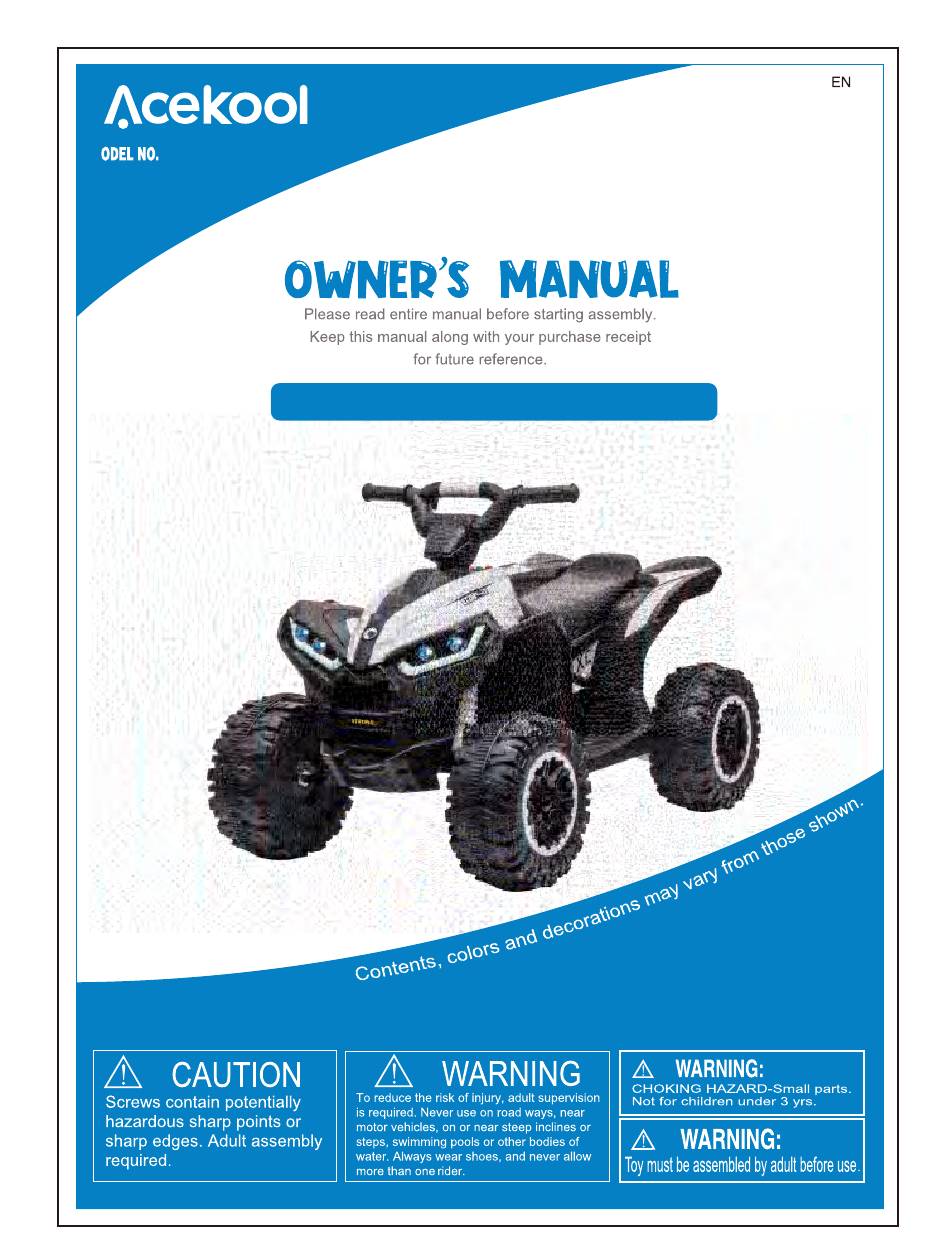

- Page 1 Dimension: 148 x 210 mm AGES 3+ HL578 Kids Ride-On Electric ATV...
- Page 2 DIRECTORY Important Information ......2 Warning ..........3 Battery Warning ........4 Battery Care and Disposal ....6 Parts List ..........7 Assembly ..........8 Operating your Vehicle .......10 Troubleshooting ........11 Parts Diagram ........14...
- Page 4 Protective equipment should be worn. Not to be used in traffic.. For the purposes of recharging the battery, only use the detachable supply unit provided with this toy.
- Page 5 6 or 12...
-
Page 6: Battery Replacement
Charge the battery : The first charge will take about 12 hours. 1. Charge the battery directly from the 2. Take out the battery. Charge the battery socket near the seat. independently. Plug the battery connector into the charger port. Plug the charger into a standard wall outlet. - Page 7 battery leak contact with skin or eyes, internally ingestes,...
- Page 8 Main body x 1 and bar x 1 Charger x 1 Seat x 1 Rear wheel Front wheel Axle cover Gear box Rear axle Adapter x 1 Washer Manual (12 x 1.5mm) Washer Screw spare part (8 x 1.3mm) (5 x 40mm) (M8) (M5) Socket tool...
- Page 9 Rear wheel Axle cover Washer (M8) (8 x 1.3mm) Rear wheels Asembly: Assemble all the Front Wheels Assembly: parts in sequence as picture and use the Insert the rear axle and gear box aspictu socket tool to fasten and “Snap” the axle re shown.
- Page 10 (M5) connectors Screw (5 x 40mm) Hand bar assembly: Plug connectors, place the hand bar into the turning shaft, insert a screw and nut to fix.
- Page 11 Mode Button Press the button to switch music mode/radio mode. Switch button ON and OFF. Toggle Button & Volume Button Lamp Switch music (radio), and adjust volume. Press the button to turn on the car's Lamp. Pause Button Pause the music or radio. Back Power Switch Low Speed &...
- Page 15 Front Aelx Assembly Rear Wheel Assembly J Hook Rear Support Bracket Steering Gear Box Main Body Battery Assembly Front Support Bracket Seat Front Wheel Assembly Axle Cover Hood Rear Axle Hand Bar Assembly Front Body Assembly Gear Box...
- Page 16 Model: HL578 Email: support@acekool.vip Website: https://www.acekool.vip Made in China...
