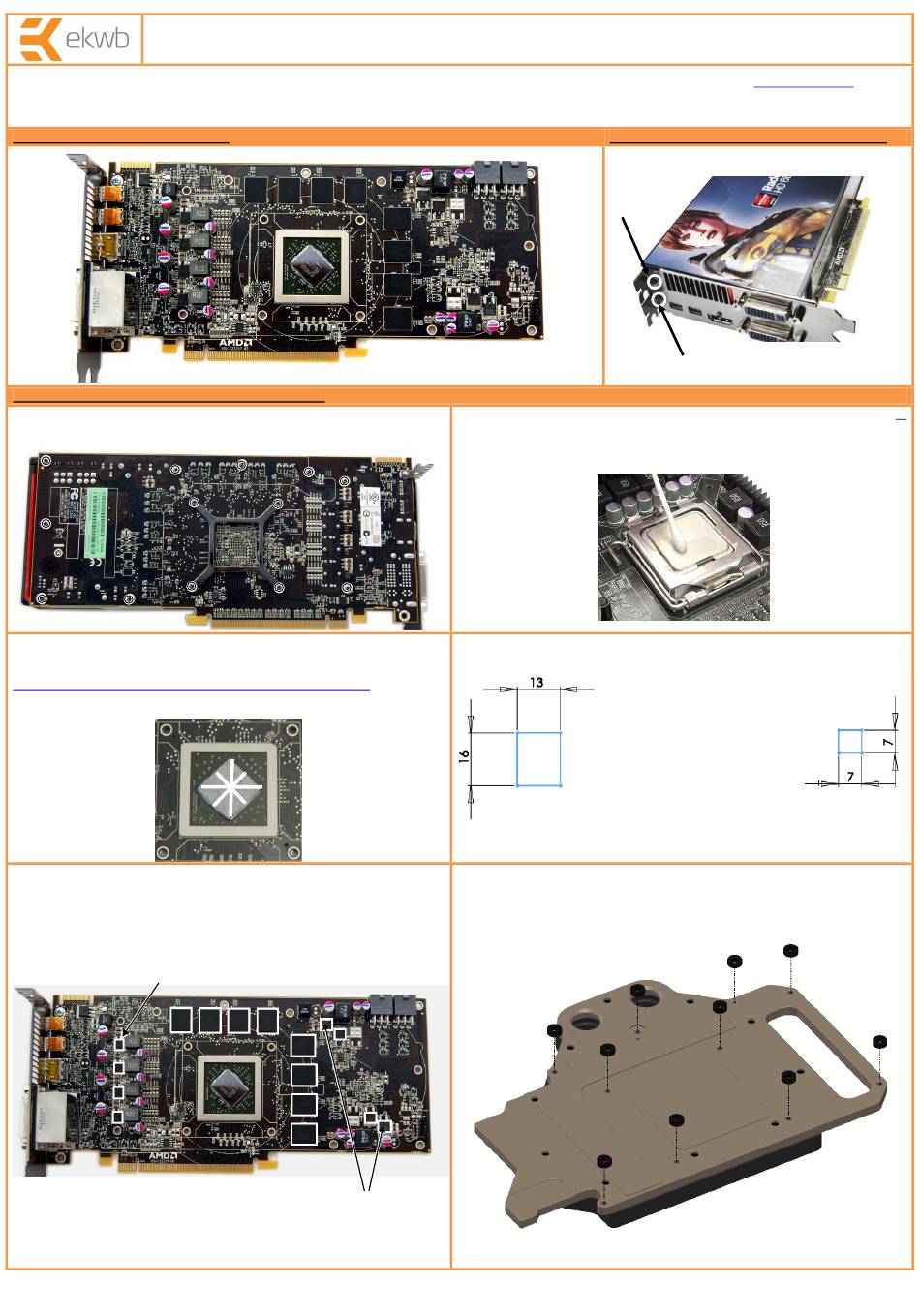

Installation and mounting manual for EK-FC6870 water block
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using o-rings.
STEP 1: GENERAL INFORMATION. Sample picture of RADEON HD 6870 graphic card.
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD.
1 cont.. REMOVING STOCK COOLER. Remove all encircled screws.
assembly screws and backplate should be removed. There are 15 screws on the back
of the graphic card.
3. APPLYING THERMAL COMPOUND
Apply thermal compound: lightly coat the GPU with for example Arctic Cooling MX2 ™
or MX3 ™ thermal compound. Follow this link:
http://www.arctic-cooling.com/catalog/images/install_mx2_retail.pdf
instructions. EKWB recommends to apply thermal grease in cross form for best
performance (see sample picture).
5. PLACING THERMAL PADS ON PCB. Place thermal pads on chips so that
numbers on chips match size of thermal pads. Thermal pads will have to be
cut by user to match RAM chips and all small mosfet chips (EKWB made sure
users have more than enough pads to cover all surfaces that need to be
covered to make block fully function). You can also use small drop of thermal
grease on chips to make thermal pads more adhesive.
2
1
All disclosures, notices and warranty conditions are being written on the back of the box.
for detailed
1
1 1
1
1
1
1
1
2
2. CLEANING THE PCB. Carefully detach the original heat sink after removing all
All heat sink
fasteners securing it to the board and bracket. Wipe off the remains (by using non–
abrasive cloth or Q-tip, as shown on sample photo) of the original thermal compound
until the components and circuit board are completely clean. EKWB does not recommend
using any liquids for removing paste.
4. CUTTING THERMAL PADS. Your block comes with thermal pads, which have to be
placed on chips (PLEASE REMOVE FOIL ON BOTH SIDES OF THERMAL PADS PRIOR TO
INSTALLATION. WARNING: DIMENSION BELLOW ARE SCALED.)
1
All pads are 1,0 mm thick!
6. PLACING STANDOFFS ON BLOCK. Standoffs are obligatory to make this block
fully functional. Please use small amount of thermal grease on standoffs and
glue them so they are concentric with mounting holes. Once they are stuck to
block be careful not to move them.
www.ekwaterblocks.com
STEP 2: PREPARING YOUR GRAPHIC CARD.
1. REMOVING STOCK COOLER: Remove encircled
screws:
2a
Released on 2
for updates.
2
nd
of October, 2009.
