  • Page 1 XH-M401 eBook for XH-M401 Step Down Converter with extended Potentiometer...
  • Page 2: Operating Conditions

    Areas of application The power supply is intended for use in electronic circuits, laboratories, educational institutions and development environ- ments. It is used to safely provide direct current for a variety of low-voltage applications. Required knowledge and skills Using the power supply requires basic knowledge of electrical engineering. Users should be able to safely assemble and ope- rate electrical circuits and take the necessary safety precautions.
  • Page 3 Make sure the power supply is adequately ventilated during operation and monitor the temperature regularly. Caution: High temperatures can significantly shorten the lifespan of the power supply and connected devices. Note: Only operate the power supply within the recommended ambient temperatures (0°C to 40°C). Caution: Overheated components can cause fires. Note: Avoid use in direct sunlight or near heat sources.
  • Page 4 XH-M401 Table of Contents Introduction Specification Application example...

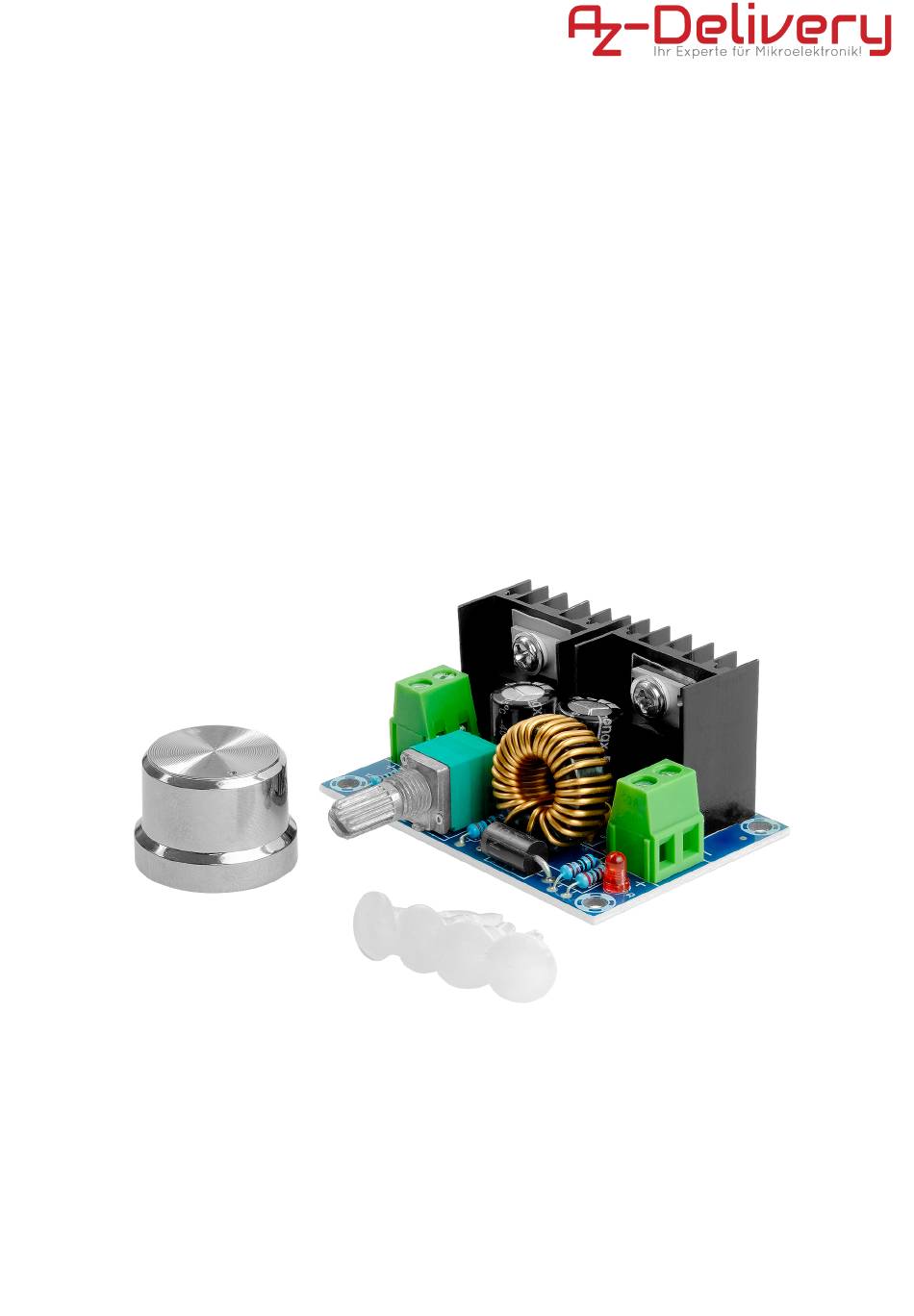

  • Page 5 XH-M401 Introduction The AZ-Delivery XH-M401 step-down module is a so-called buck converter or step-down converter. This DC-DC converter allows to regulate the input voltage comfortably down to a desired value by means of a potentiometer. The output voltage is always lower than the input voltage.
  • Page 6: Specification

    XH-M401 Specification Input Voltage 4 - 40V Output Voltage 1.25 - 36V Output Current max. 8A (enhance cooling at > 5V Switching frequency 180kHz Efficiency 94 % Power max. 200W Dimensions 61x41x27mm Weight The step-down module uses the XL4016E1 chip...
  • Page 7: Application Example

    XH-M401 Application example In this example we show you how to use a step-down converter, this is just one of the countless possibilities. Here we supply our nodeMCU Amika V3 with an old laptop power supply, which is not needed anymore. The voltage of the power supply is 19V, with the help of the step-down module we step down the voltage to 5V and apply it to the Vin pin of the Amika V3.
  • Page 8 XH-M401 After the desired voltage is set, we can now supply our WiFi board with it. For this we should first turn off the power (disconnect from the mains) and connect them as follows: Step-Down Modul Amika V3 Vout +...
  • Page 9 Internet. If you are looking for the high-quality products for Arduino and Raspberry Pi, AZ-Delivery Vertriebs GmbH is the right place for you. You will receive numerous application examples, complete installation instructions, eBooks, libraries and support from our technical experts.
