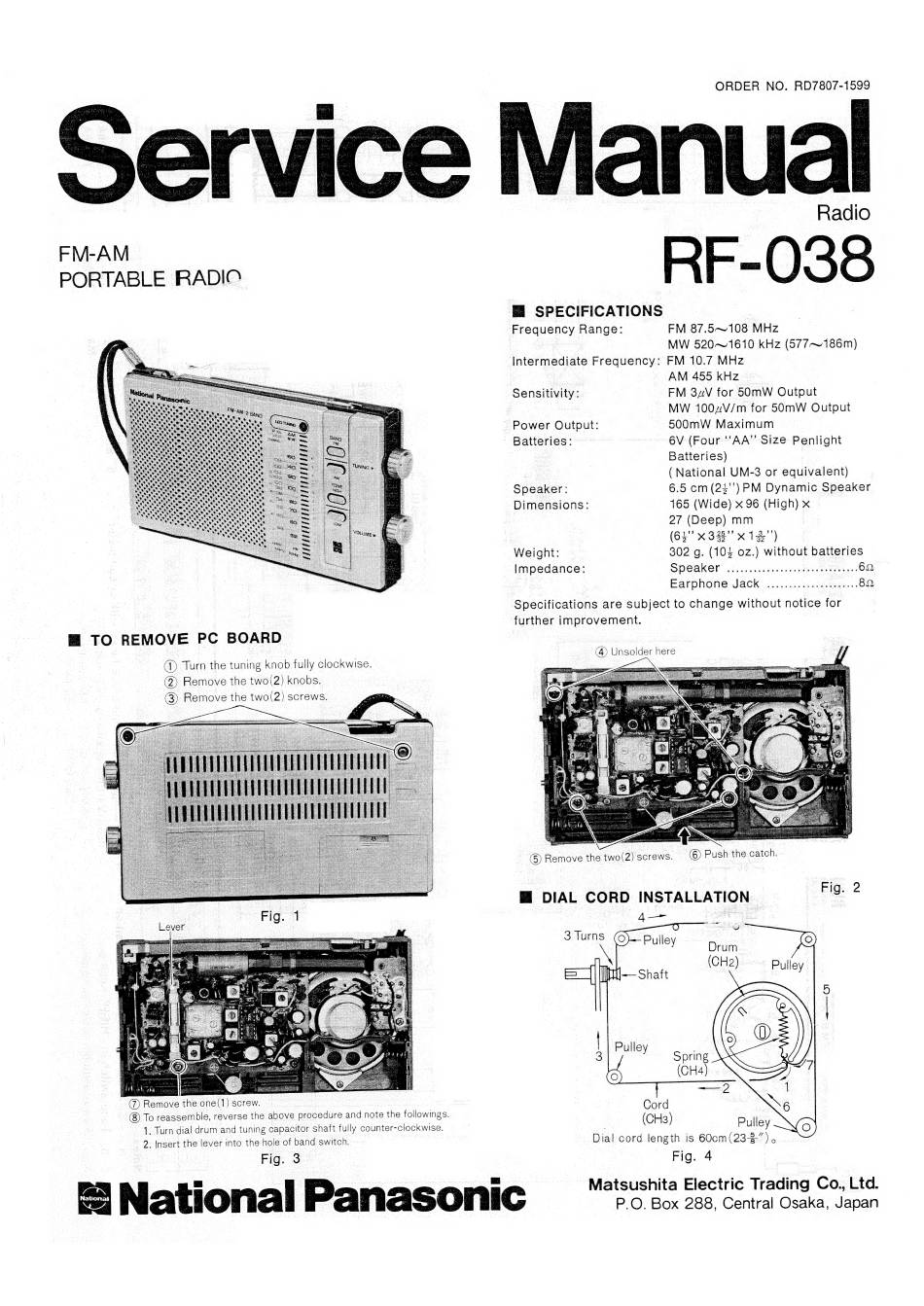

National Panasonic RF-038 Service Manual

ORDER NO. RD7807-1599
FM-AM
PORTABLE RADIO
Fa SPECIFICATIONS
Frequency Range: FM 87.5~108 MHz
MW 520~1610 kHz (577~~186m)
Intermediate Frequency: FM 10.7 MHz
~ AM 455 kHz
Sensitivity: FM 3xV for 50mW Output
MW 100V/m for 50mW Output
Power Output: 500mW Maximum
Batteries: ~ 6V (Four '"'AA"' Size Penlight
Batteries) |
: (National UM-3 or equivalent)
Speaker: 6.5 cm (24') PM Dynamic Speaker
Dimensions: 165 (Wide) x 96 (High) x
27 (Deep) mm
(64 X x 348" x 14 3. 5")
Weight: 302 g. (104 0z.) without batteries
Impedance: SpGAKEr sho iserueie ee Oe
Earphone Jack sci canstt ane agi OO
Specifications are subject to change without notice tr
further improvement.
(@) Turn the tuning knob fully clockwise.
(2) Remove the two(2) knobs.
(3) Remove the two(2) screws.
(4) Unsolder here
"O Reniove the one(1) screw.
(8) To reassemble, reverse the above procedure and note the followings.
1. Turn dial drum and tuning capacitor shaft fully counter- -clockwise.
_ 2. Insert the lever into the hole of band switch.
~
Dial cord length is 60cm (23-3 5%)
°
National
