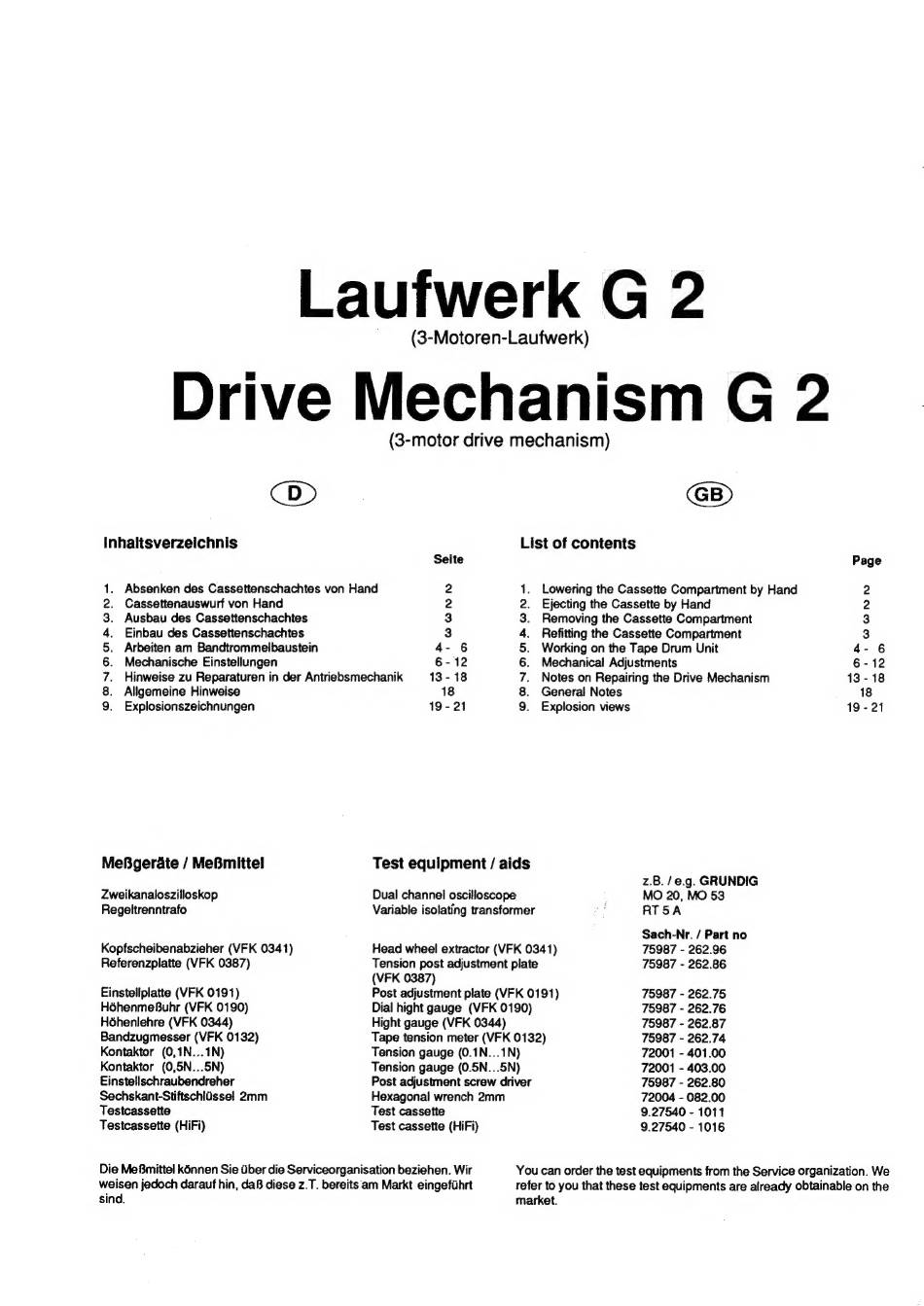

Laufwerk G 2
(3-Motoren-Laufwerk)
Drive Mechanism G 2
(3-motor drive mechanism)
DM
Inhaitsverzeichnis
List of contents
Seite
Page
2
1. Lowering the Cassette Compartment by Hand
2
2
2.
Ejecting the Cassette by Hand
2
3
3.
Removing the Cassette Compartment
3
4.
3
4.
Refitting the Cassette Compartment
3
5. Arbeiten am Bandtrommelbaustein
4-
6
5.
Working on the Tape Drum Unit
4-
6
6.
6-12
6.
6-12
7. Hinweise zu Reparaturen in der Antriebsmechanik
13 - 18
13-18
8. Allgemeine Hinweise
18
18
9. Explosionszeichnungen
19-21
9. Explosion views
19-21
MeBgerate / MeBmittel
Test equipment / aids
Zweikanaloszilloskop
Regeltrenntrafo
Kopfscheibenabzieher (VFK 0341)
Referenzplatte (VFK 0387)
Einstellplatte (VFK 0191)
HéhenmeBuhr (VFK 0190)
Héhenlehre (VFK 0344)
Bandzugmesser (VFK 0132)
Kontaktor (0,1N...1N)
Kontaktor (0,5N...5N)
Einstellschraubendreher
Sechskant-Stiftschlissel 2mm
Testcassette
Testcassette (HiFi)
Dual channel oscilloscope
Variable isolating transformer
Head wheel extractor (VFK 0341)
Tension post adjustment plate
(VFK 0387)
Post adjustment plate (VFK 0191)
Dial hight gauge (VFK 0190)
Hight gauge (VFK 0344)
Tape tension meter (VFK 0132)
Tension gauge (0.1N...1N)
Tension gauge (0.5N...5N)
Post adjustment screw driver
Hexagonal wrench 2mm
Test cassette
Test cassette (HiFi)
z.B. / e.g. GRUNDIG
MO 20, MO 53
RTSA
Sach-Nr. / Part no
75987 - 262.96
75987 - 262.86
75987 - 262.75
75987 - 262.76
75987 - 262.87
75987 - 262.74
72001 - 401.00
72001 - 403.00
75987 - 262.80
72004 - 082.00
9.27540 - 1011
9.27540 - 1016
Die MeBmittel k6nnen Sie Uber die Serviceorganisation beziehen. Wir
You can order the test equipments from the Service organization. We
weisen jedoch darauf hin, daB diese z.T. bereits am Markt eingefihrt
refer to you that these test equipments are already obtainable on the
sind.
market.
