M3 Mobile UL10 Maintenance Book

1d scanner
Hide thumbs Also See for UL10:

Advertisement

Quick Links

Download this manual

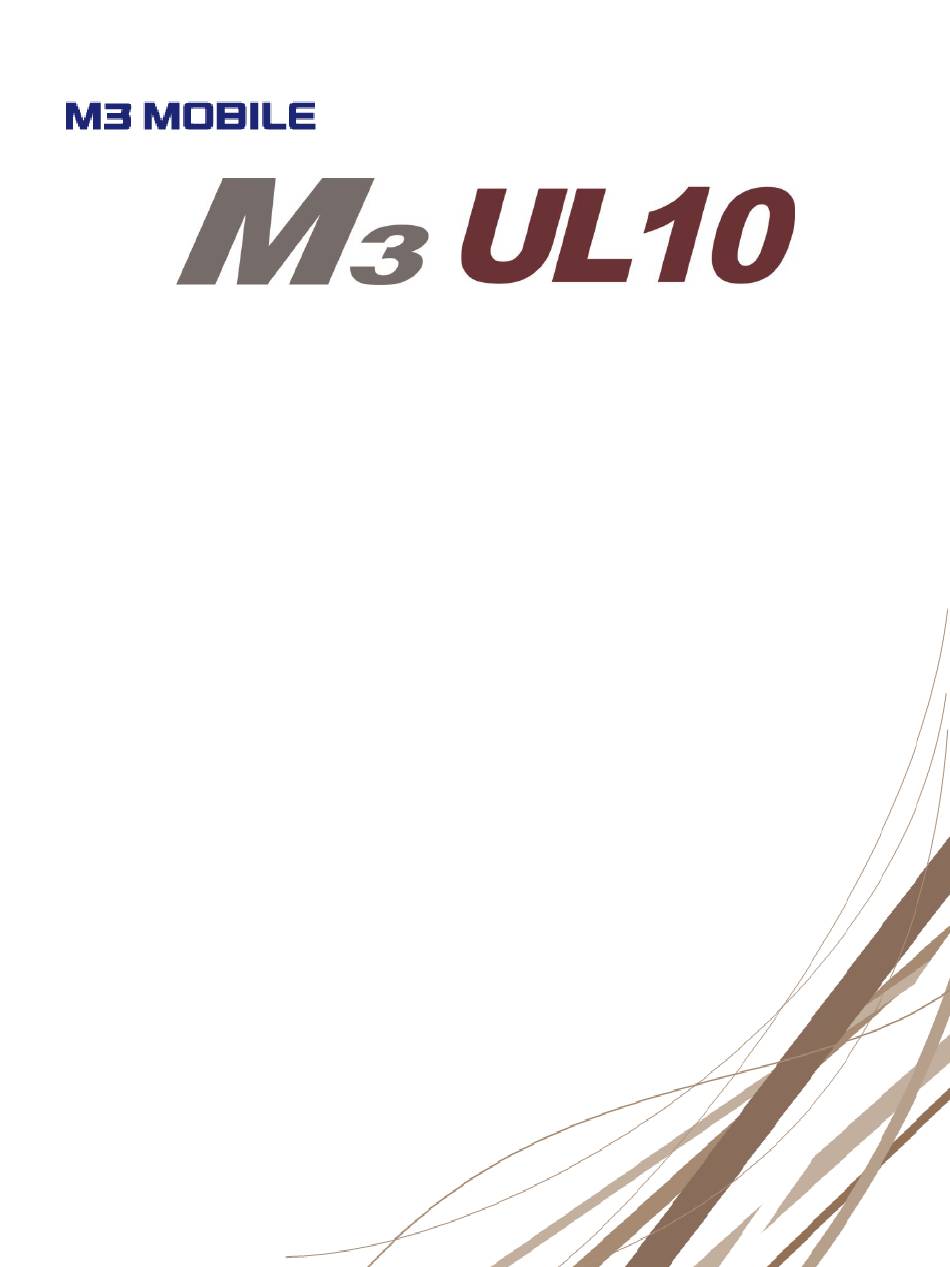

(1D Scanner)
Maintenance Book
Version 1.0 © 2014
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UL10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for M3 Mobile UL10

Summary of Contents for M3 Mobile UL10

  • Page 1 (1D Scanner) Maintenance Book Version 1.0 © 2014...
  • Page 2 In the future, the MC series and its manual may be changed without prior notice. Therefore, M3 MOBILE is not held responsible for damage or removal caused by direct or indirect errors or the mismatch of contents with the manual.

  • Page 4: Exploded View

    CHAPTER 1. EXPLODED VIEW...

  • Page 6: Parts List

    CHAPTER 2. PARTS LIST...
  • Page 7 < UL10 Parts List > V1.0 * The numbers in the ALL LIST correspond to the same numbers in exploded view. * Q'ty : Quantity used per unit / MOQ : Minimun Order Quantity * G-GSM , H-HSDPA , W-WLAN , S-SCANNER , C-CAMERA , B-BLUETOOTH , P-GPS , R-RFID * If you need an order, please let us know the MODEL, the PARTS NUMBER, the PARTS NAME and Quantity on your PO.
  • Page 8 PARTS NAME DESCRIPTION Q'TY (EXP) 219020900000 MODULE LCD ORTUS(3.5")_UL10 VGA_51PIN_COM35H3M65ULC 219020900001 MODULE LCD ORTUS(3.5")_UL10 QVGA_51PIN_COM35H3M17XLC POM (BLACK) 100400110700 BRACKET SPEAKER UL10 180000611200 SPEAKER PAD MM3 HM+SK800, Ø 16.1, 0.8T 213010200005 SPEAKER(SHT2808B-58W)_UL10 SPEAKER_8ohm_1.0W 224020312000 BATTERY BACKUP 200mA/h(AEC422030)_ALL LI-POLYMER 217040030003 MODULE HSPA+(PH8-P)
  • Page 9 SDC-MSD30AG 217100210033 MODULE SCANNER(SE-4500SR)_SYMBOL 2D SCANNER / BLACK 217100230002 MODULE SCANNER(EX-25C, LONG)_INTERMEC 2D SCANNER(LONG RANGE) 221110201002 CABLE FPCB_21PIN_50mm_0.3PITCH MIRROR M3 UL10 2D SCAN 216050512002 ANTENNA WLAN DUAL(MAIN)_M3 UL10 ANTENNA_MAIN(HWI-ABG-UL10) 216050512003 ANTENNA WLAN DUAL(Diversity)_M3 UL10 ANTENNA_MAIN(HWI-ABG-UL10) ACTIVE ANTENNA_1500M Hz(M AGB1503CCGB_OLD) 216070213001...
  • Page 10 (EXP) PC(BLACK),OPTICON/SY MBOL/INTERMEC SCANNER 100400110800 BRACKET SCANNER UL10 100400110900 COVER SCANNER UL10 PC(BLACK,BLAST),OPTICON/SY MBOL/INTERMEC/HHP SCANNER 100400410300 RUBBER SCANNER COVER UL10 SILICON (H 70°) 100400111100 BRACKET SCANNER UL10 PC(BLACK),HHP, 4500 180000111900 SCANNER BRACKET MM3 PC, BLACK, INTERMEC LONG RANGE SCANNER 180000111800...
  • Page 11 PHOTO PARTS NO. PARTS NAME DESCRIPTION Q'TY (EXP) 180001710100 SCANNER WINDOW A MM3 ACRYL, 1.0T, A/R 180001710700 SCANNER WINDOW A MM3 ACRYL, 1.0T, A/R , INTERMEC LONG RANGE 180001710300 CAMERA WINDOW A MM3 ACRYL, Ø 7.3, 1.0T, A/R Black 180001710400 CAMERA WINDOW B MM3 180001710500 FLASH WINDOW A MM3...
  • Page 12 MM3 EX-25C(INTERMEC LONG RANGE)_60mm PUBLIC 1 180000612100 FLASH PAD MM3 LM+SK800, 10.2X6.6, 2.5T 221040801000 CABLE HARNESS_2PIN_20mm(1WAY) RED/GREEN/SKY /ORANGE/MM3/POS CAM FLASH_RED/BLACK 100400110200 COVER REAR UL10 PC(BLACK)+INSERT+BLAST 180000611300 BATTERY PAD MM3 SILICON PAD+SK800, 41.6X64.6, 1.2T 180000611400 SCANNER PAD MM3 SILICON PAD+SK800, 44.4X40.4, 1.0T NBC 발수망사300도+ACRYL TAPE, Ø...
  • Page 13 SILICON (H 60°), BLACK 223030000000 MOTOR CYLINDER(Z6SH3B0060711)_M3 T/MM3 MOTOR 220394010000 PCB SUB PISTOL, V1.0 MM3_PISTOL SUB 100400410200 RUBBER COVER REAR UL10 SILICON (H 75°) 180000111400 HAND STRAP TOP BRACKET MM3 PC, BLACK 318000201110 HAND STRAP ASSY MM3 HAND STRAP Polyester film...
  • Page 14 PHOTO PARTS NO. PARTS NAME DESCRIPTION Q'TY (EXP) 161001810100 DUMMY SIM CARD pvc 0.8t 100400110300 COVER FRONT 55KEY UL10 PC(BLACK)+BLAST 100400110400 COVER REAR 55KEY UL10 PC(BLACK)+BLAST 100400110500 COVER FRONT 37KEY UL10 PC(BLACK)+BLAST 100400110600 COVER REAR 37KEY UL10 PC(BLACK)+BLAST 100400610200 37KEYPAD ASSY...
  • Page 15 PHOTO PARTS NO. PARTS NAME DESCRIPTION Q'TY (EXP) 953117053501 SCREW SH, NYLOK, M 1.7 X 5.0, Ø 3.5, BLACK, STAR T6x40 SH, NYLOK, M 1.7 X 6.0, Ø3.5, BLACK, STAR T6x40 953117063501 SCREW 913117033502 SCREW BH, NYLOK, M 1.7 X 3.0, Ø 3.5, WHITE 911117053501 SCREW BH M 1.7 X 5.0, Ø...
  • Page 16 BH M 1.7 X 4.0, Ø 3.5, BLACK 951116043001 SCREW SH M 1.6 X 4.0, Ø 3.0, BLACK, STAR T6x40 323401010000 M3 UL10 MAIN PCB ASSY, V1.0 PCB SMD, W/ S/ C/ B 3234N1000000 M3 UL10 IO PCB ASSY, V1.0 PCB SMD 3234R1000000 M3 UL10 37KEY PCB ASSY, V1.0...
  • Page 17 CHAPTER 3. DISASSEMBLY ※ Preconditions for Disassembly 1. Please back up the important list or data. (Note: Data backup in the RAM sector is required because the hardware is reset when the power is off.) 2. Please check whether the adaptor is separated. 3.

  • Page 18: Disassembly Of Rear Cover

    1. DISASSEMBLY OF COVER 1-1 DISASSEMBLY OF REAR COVER - Remove 10 Screws of the Rear Case as show in the picutre - Lift up the rear cover - ① Be careful of scanner cable and IO connector when open - Disassemble rear cover.
  • Page 19 1. DISASSEMBLY OF COVER 1-2 DISASSBLEY OF SCANNER ASS’Y - Scanner Ass’y. - Remove 4 Screws - Remove the scanner cover...
  • Page 20 1. DISASSEMBLY OF COVER - Remove the scanner cable - Remove 6 screws - Remove Scanner Cover...
  • Page 21 1. DISASSEMBLY OF COVER - Remove 2 screws - Remove camera connector - Disassembly Scanner Ass’y.
  • Page 22 1. DISASSEMBLY OF COVER 1-3 DISASSEMBLY KEY PCB - Remove 6 Screws - Detach the KEY PCB ASS’Y from the front cover - Remove 8 screws...
  • Page 23 1. DISASSEMBLY OF COVER - Disassembly of KEY PCB ASS’Y 2. DISASSEMBLY OF MAIN PCB ASS’Y 2-1 DISASSEMBLY OF PHONE MODULE AND ANTENNA - ① Remove 4 screws of phone module - ② Remove 2 screws of antenna on front and rear side -Remove phone module -Remove backup battery...
  • Page 24 2. DISASSEMBLY OF MAIN PCB ASS’Y 2-2 DISASSEMBLY OF WLAN - Front side of the Main PCB - Remove the WLAN module - WLAN Module and its antenna...
  • Page 25 3. DISASSEMBLY OF FRONT COVER 3-1 DISASSEMBLY OF LCD, RECEIVER, GPS ANTENNA - Remove 8 screws - Remove LCD module - Remove Receiver and antenna...
  • Page 26 3. DISASSEMBLY OF FRONT COVER 3-2 DISASSEMBLY OF TOUCH PANEL - Remove LCD pad. - Remove PANNEL LCD...
  • Page 27 3. DISASSEMBLY OF FRONT COVER 3-3 FULLY DISASSEMBLED UL-10...
  • Page 28 CHAPTER 4. ASSEMBLY...
  • Page 29 1. ASSEMBLY OF ASS’Y 1-1 ASSEMBLY OF ASS’Y...
  • Page 30 1. ASSEMBLY OF ASS’Y 1-2 ASSEMBLY OF KEY PCB ASS’Y - Assemble from 1 to 4 in order - Attach KEY PCB ASS’Y to front cover. - Fasten 6 screws...
  • Page 31 2. ASSEMBLY OF FRONT ASS’Y 2-1 ASSEMBLY OF LCD, RECEIVER AND GPS ANTENNA - Attach the LCD Pad to the Rear Cover - Attach PANNEL LCD - Assemble LCD, Receiver, GPS Antenna...
  • Page 32 2. ASSEMBLY OF FRONT ASS’Y - Fasten 8 screws 3. ASSEMBLY OF MAIN PCB ASS’Y 3-1 Assemble WLAN, Phone module, Antenna - Assemble WLAN module - Assemble Phone module - Assemble backup battery - Assemble Antenna...
  • Page 33 3. ASSEMBLY OF MAIN PCB ASS’Y - Fasten 3 screws -Assemble ①Scanner and ② IO connector cable 4. ASSEMBLY OF REAR COVER 4-1 FASTENING SCREWS OF REAR COVER - Fasten 8 screws...
  • Page 34 4. ASSEMBLY OF REAR COVER 4-2 ASSEMBLY OF SCANNER, CAMERA, FLASH PCB - Scanner Ass’y - Assemble Camera Connector - Fasten 2 screws.
  • Page 35 4. ASSEMBLY OF REAR COVER - Assemble SCANNER COVER - Fasten 6 screws - Assemble SCANNER cable...
  • Page 36 4. ASSEMBLY OF REAR COVER - Fasten 4 screws - Assemble Rear Cover...
