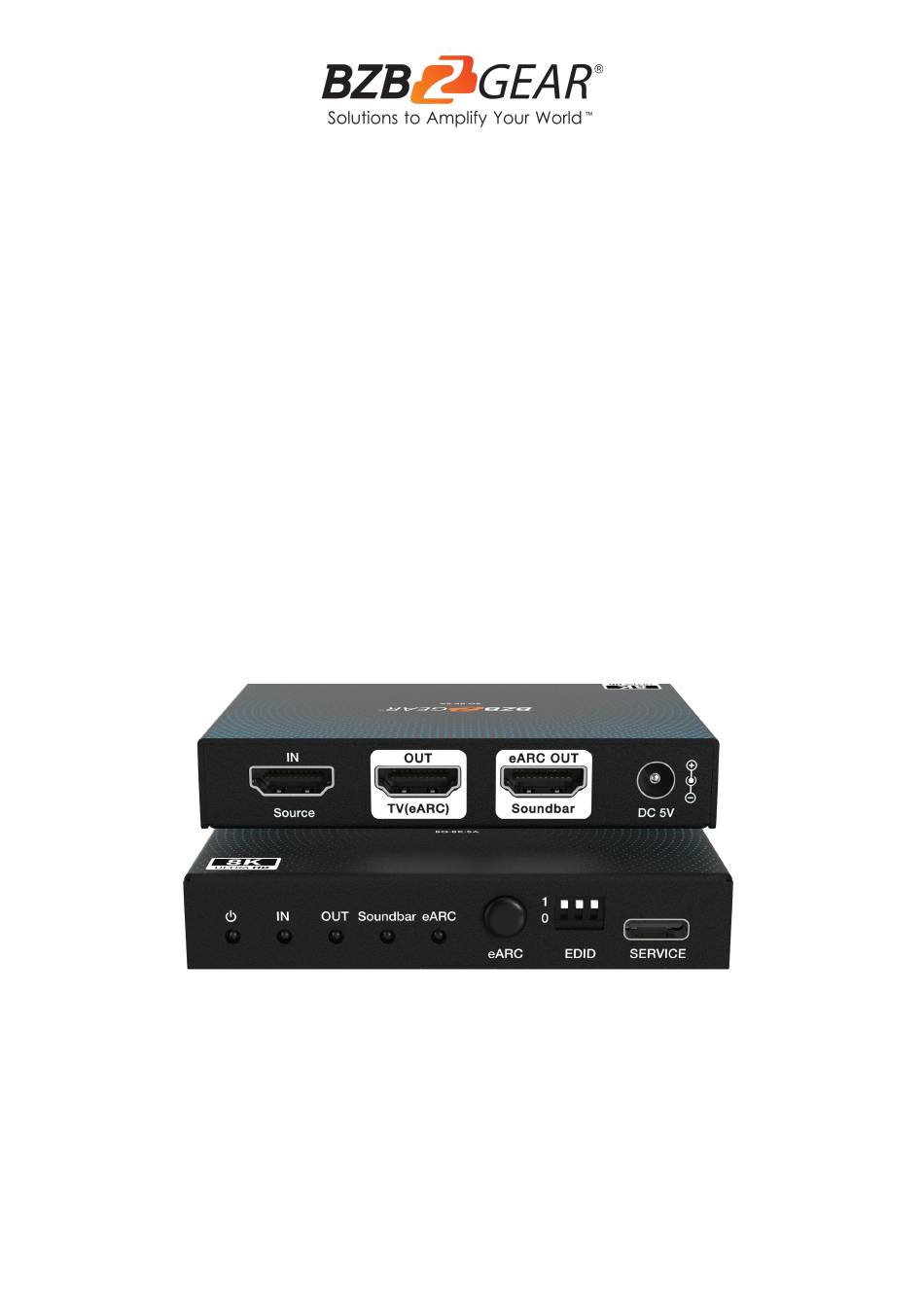

- Page 1 BG-8K-SA 48Gbps HDMI eARC Audio to Soundbar Adapter User Manual...
- Page 2 BZBGEAR BG-8K-SA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-8K-SA PRODUCT MANUAL Table of Contents Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Operation Controls and Functions Connection Diagram Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-8K-SA PRODUCT MANUAL Introduction This HDMI eARC Audio to Soundbar Adapter is designed to extract audio signals from an HDMI source or TV with ARC/eARC and output them to a soundbar. It supports data rates up to 48Gbps, complying with HDMI 2.1 and HDCP 2.3 standards. The adapter is compatible with UHDTV 8K@60Hz. -
Page 6: Specifications
BZBGEAR BG-8K-SA PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Audio Latency No Latency Video Latency No Latency Color Depth... -
Page 7: Operation Controls And Functions
BZBGEAR BG-8K-SA PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description Power LED When the device is powered on, the red LED will be on. IN LED When the input signal is detected, the green LED will be on. -
Page 8: Rear Panel
BZBGEAR BG-8K-SA PRODUCT MANUAL Rear Panel Name Function Description Source IN port HDMI signal input port, connected to HDMI source device such as DVD, PS5 or 8K computer host with an HDMI cable. HDMI signal output port, connected to TV (ARC/eARC) with an HDMI cable. -
Page 9: Connection Diagram
BZBGEAR BG-8K-SA PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Troubleshooting
BZBGEAR BG-8K-SA PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 11: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
