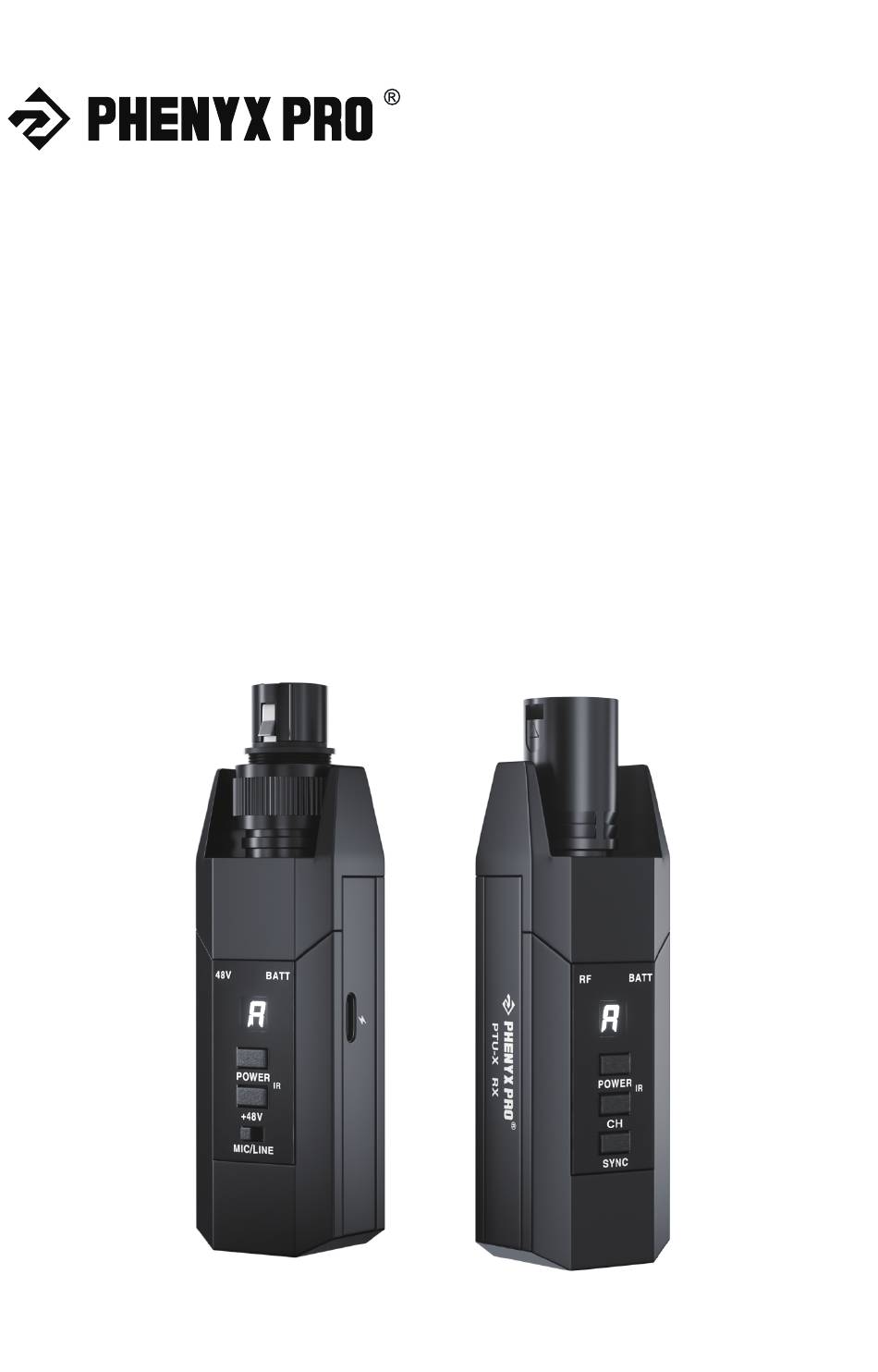

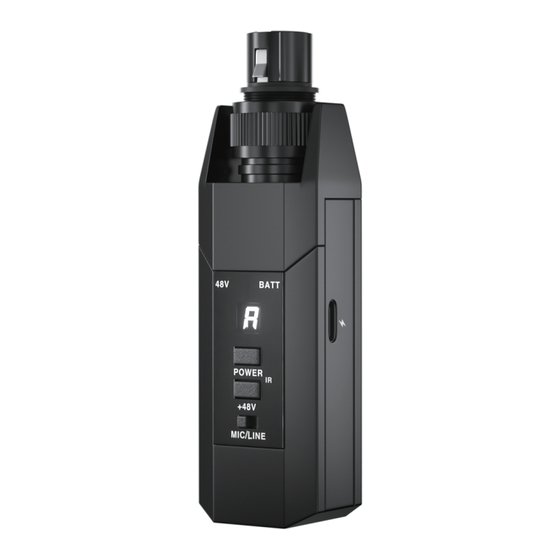

- Page 1 PTU-X Plug-On UHF Wireless Transmitter Receiver System USER MANUAL Benutzerhandbuch Manuel de l'Utilisateur Manuale d'uso Manual del usuario Manual do usuário...
-
Page 2: Important Safety Instructions
Licensing of PHENYX PRO wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. PHENYX PRO strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and... -
Page 3: Fcc Information
FCC Information IC Statement This device contains license-exempt transmitter(s)/ This device complies with part 15 of the FCC rules. Operation is subject to the following two receiver(s) that comply with Innovation, Science and conditions: Economic Development Canada's licence-exempt (1) This device may not cause harmful RSS(s). - Page 4 Thank you for purchasing the Phenyx Pro PTU-X. For the best results and utmost satisfaction with your new unit, please read this manual carefully to ensure proper operation, and keep it for future reference. For more information, please visit our store: www.phenyxpro.com System Description..........................5...
-
Page 5: System Description
System Description System overview Introducing the Phenyx Pro Plug-on Wireless Transmitter Receiver System: Seamless Wired to Wireless Conversion. Operate flawlessly on a stable UHF 500MHz frequency with dynamic 16-channel flexibility, ensuring minimal interference and optimal device coordination. It features +48V phantom power for diverse microphone compatibility and MIC/LINE conversion for easy integration. -
Page 6: Operation Guidance
Operation Guidance Set up Step 1: Ensure sufficient battery charge for both the transmitter and receiver. Step 2: Press and hold the POWER button on both the receiver and transmitter to power them on. By default, the transmitter and receiver will automatically pair up within seconds. Step 3: Connect the receiver and transmitter to the next-level devices. - Page 7 ⑥ Avoid sudden volume changes when switching modes to prevent damage to audio equipment. ⑦ Hold the wired microphone correctly and securely when connecting it to the PTU-X. ⑧ Turn off the power switch while charging, and avoid using the transmitter while charging to maintain battery life.
-
Page 8: Functions Of Parts
Wireless tips If you encounter wireless interference or dropouts, try the following suggestions: ① Choose a different frequency channel. Avoid approaching the receiver and transmitters with metal or other dense materials. ② Remove any devices causing possible signal interference, such as cellphones, computers, media players, two-way radios, and digital signal processors. - Page 9 Transmitter ⑩ ① ② ③ ④ ⑨ ⑤ ⑥ ⑦ ⑧ ① Adjustable locking knob: Rotates to tightly lock the wired mic rophone to the TX. ② +48V indicator light: Turns red when the +48V phantom power is turned on. ③...
-
Page 10: Troubleshooting Tips
Troubleshooting Tips Issue Solution • Ensure the transmitter and receiver are powered on. Check if the battery is sufficient; otherwise, charge it to ensure its red power indicator lights off while you are using it. • Check that the microphone is turned on and receiving signal from the transmitter. -
Page 11: Specifications
Specifications Overall System Wireless Circuitry Analog Operating Frequency Band UHF 550-570 MHz Number of Frequency Points Total 16, from 0-F Input Mode MIC/LINE Frequency Response 50 HZ-15 KHz±3 dB Dynamic Range > 100 dB SNR (Signal-to-Noise Ratio) > 98 dB RF Sensitivity -100 dBm RF Power... -
Page 12: Technical Support & Warranty Information
If you are receiving a system that is defective or you have any questions regarding operation or warranty cover, please contact us at support@phenyxpro.com with any questions or concerns and a Phenyx Pro representative will contact you to provide assistance. You can also reach out to us through Facebook page:... - Page 13 Made in China Manufacturer: Guangzhou VILAN Technology CO., LTD. Address: No.101 Wanggangdexing Road, Baiyun District, Guangzhou, China www.phenyxpro.com After-sales Service E-mail: support@phenyxpro.com ; info@phenyxpro.com...
