Summary of Contents for Ronix RH-4941

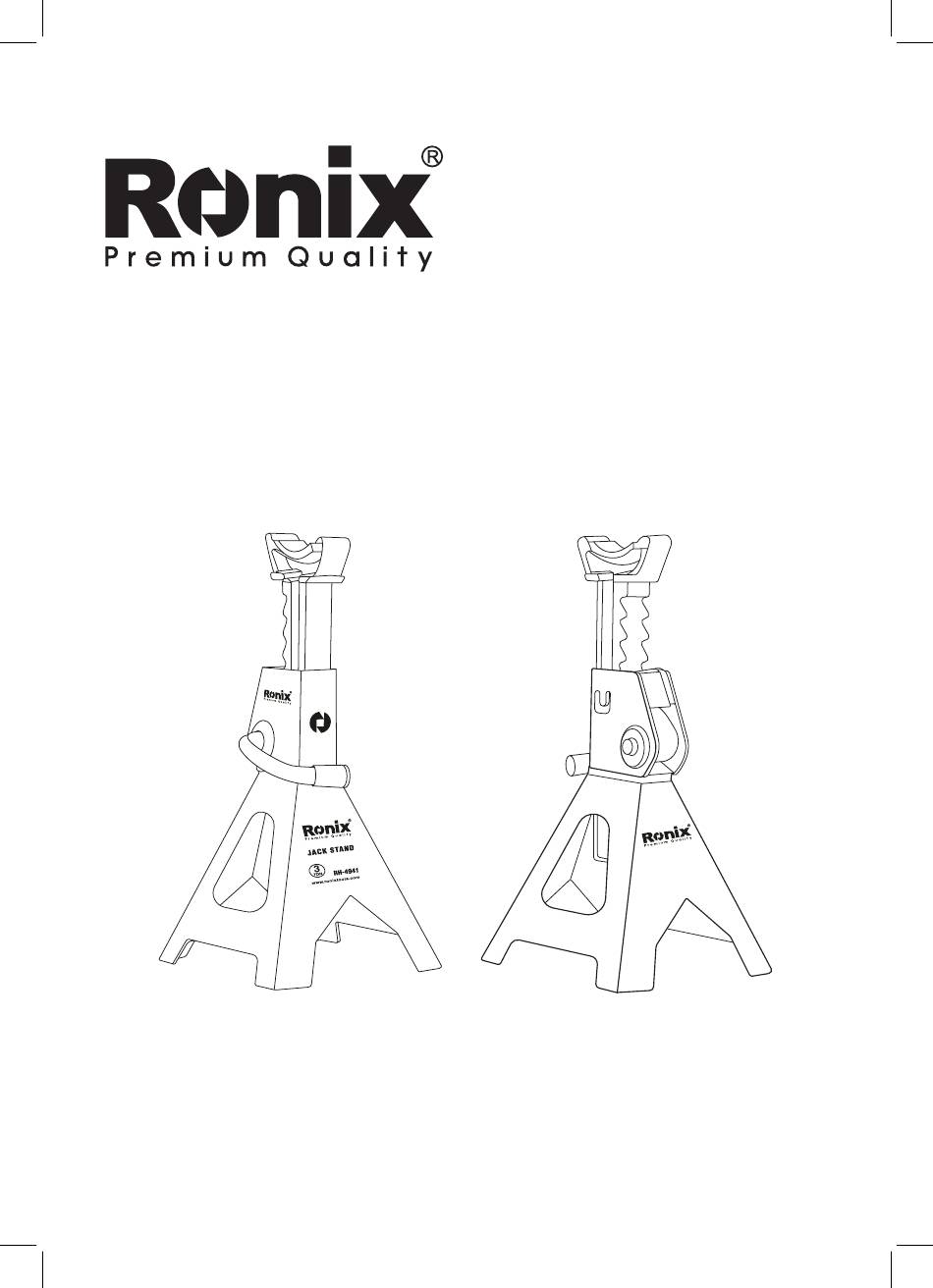

- Page 1 DIE 3 - TONNEN - ACHSSTÄNDER RH - 4941 www.ronixtools.com...
-
Page 3: Technische Daten
TECHNISCHE DATEN RH-4941 Modell Tragkapazität 3TON Material Kombination von Gusseisen und Stahl Verriegelungstyp Ratschenmechanismus Min Höhe 285mm Max Höhe 425mm Standards ASME Gewicht 6.3Kg GERÄTEKOMPONENTEN Ratschenstange Verriegelung Sperrklinke Griffhülse Verriegelungsgriff Grundrahmen Bedienungsanleitung... - Page 4 SICHERHEITSANWEISUNGEN 1- Lesen, verstehen und befolgen Sie alle Anweisungen, bevor Sie dieses Gerät verwenden. 2- Überschreiten Sie nicht die bewertete Kapazität. 3- Verwenden Sie den Wagenheber nur auf harten, ebenen Oberflächen mit weniger als 3 Grad Neigung. 4- Zentrieren Sie die Last auf dem Sattel. 5- Verwenden Sie nur ein passendes Paar.
- Page 5 3TON JACK STAND RH-4941...
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS RH-4941 Model Capacity 3TON Material Cast iron/steel Lock Type Locking Pawl Min. Height 285mm Max. Height 425mm Standards ASME Weight 6.3Kg PART LIST Ratchet Bar Locking Pawl Handle Sleeve Locking Handle Base Frame 3ton Jack Stand... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS 1- Study, understand, and follow all instructions before operating this device. 2- Do not exceed rated capacity. 3- Use only on hard, level surfaces, with less than 3 degrees of slope. 4- Center load on saddle. 5- Use as a matched pair only. 6- Stands are not to be used to simultaneously support both ends of a vehicle. - Page 8 2- Place load on the center of saddle for safety it is strongly recommended that lifting means not be removed while jack stands are supporting the vehicle. 3- Secure ratchet by turning stopper to hold load. Make sure stopper has been securely inserted. Release stopper and let ratchet glide down to the lowest position when storing the jack stand.
- Page 9 Visual inspection shall be performed before each use of the stand by checking abnormal condition, such as cracked welds, leaks and damaged, loose, or, missing parts if srand is believed to have been subjected to abnormal load or shock inspection shall be made by authorized repair facility.
- Page 12 www.ronixtools.com...
