Summary of Contents for Senior Bad D26

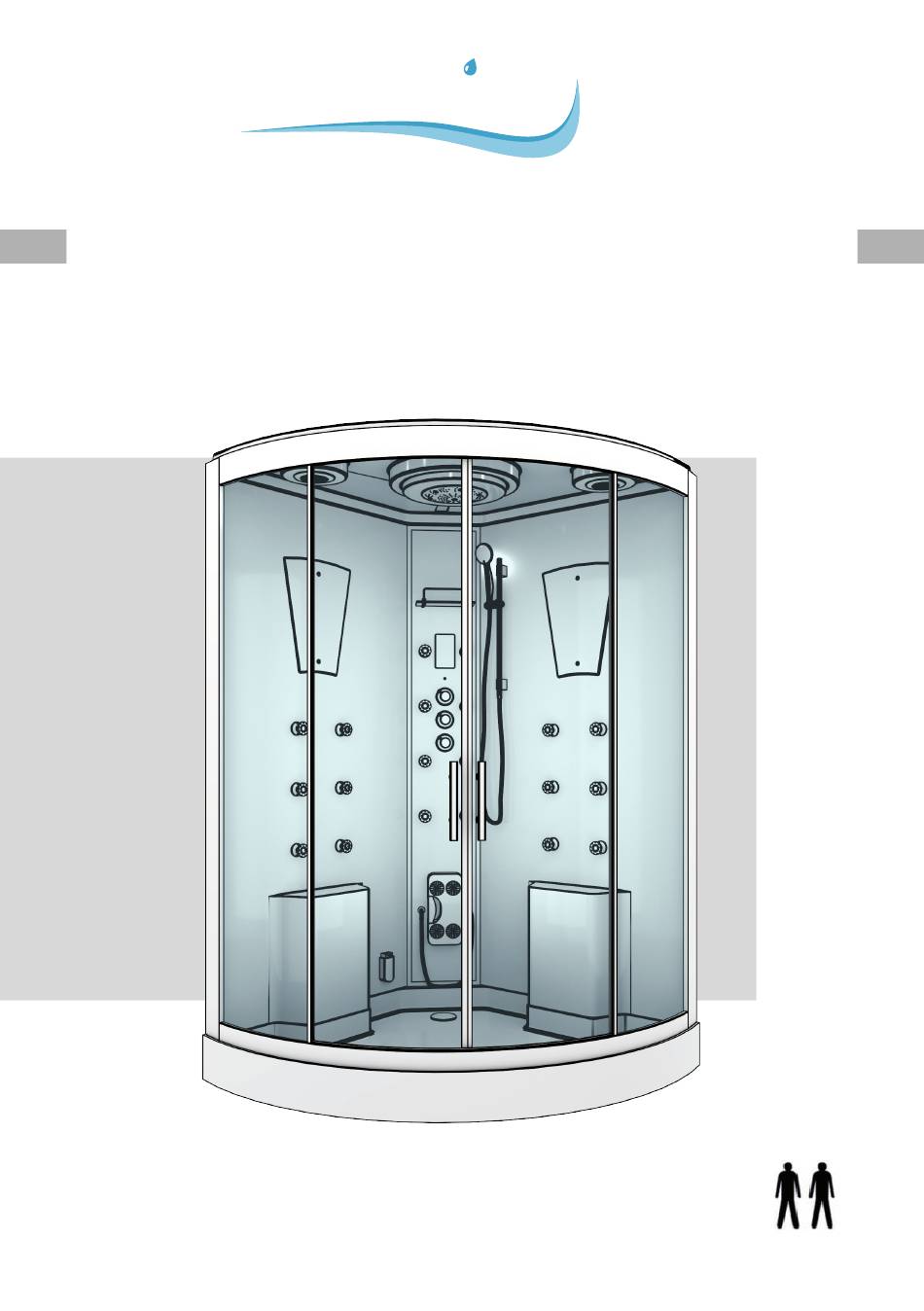

- Page 1 Senior GmbH Assembly instructions for shower temple (10v24eng) Attention: This shower should be installed by two people!
- Page 2 Foreword Thank you for choosing our shower temple. Before unpacking the shower cubicle, check the packaging for any damage! Subsequent complaints will not be accepted. Before assem- bly, all parts must also be checked for damage and to ensure they are complete. If you have any problems, contact the seller or us as soon as possible! Please read these instructions carefully before starting the assembly.
- Page 3 Elektrische Parameter Rated voltage Frequency Total consumption Lighting 230V 50/60Hz 3031W Radio Frequency range radio Steam 88-108MHz 3000W Tips for the electrical connection The electrical work in the bathroom must be carried out by a qualified electrician! They must also ensure that there is adequate earthing to prevent accidents and malfunctions. •...
-
Page 4: Technical Data
Tips for connecting the water • The water pressure should be 0.2-0.4MPa (2-4 bar); if the pressure is higher, a pres- sure-reducing valve should be installed. • The water temperature must not exceed 65 degrees Celsius. • The water supply for the shower should be separate, e.g. with ball valves that can be turned off. - Page 5 Product items Lid: with integrated fan, ozone generator, loudspeaker, rain shower and LED top lighting Left side wall: with mirror, back massage and aromatherapy fragrance dispenser Shower panel: equipped with back massage, tap, control display and foot mas- sage. The shower panel is only pre-assembled at the factory to make it easier for you to set it up.
- Page 6 4 kurze Flachdichtungen - für die vorderen Glas- scheiben im Bogenprofil - von innen anzubringen 2 schmale Flachdichtung je 2m Bottom alumini- Top aluminium Straight alu- um profile profile minium profiles - von aussen anzubringen 2 dicke Flachdichtung je 2m - von aussen anzubringen 4x16mm 4x10mm...
- Page 7 Connections for water, waste water, electricity, telephone 12 cm 180 cm 9,8 cm 9,8 cm Cold water 1/2 inch ATTENTION: leave an area of 15 cm diameter free in the connection area Hot water 1/2 inch of the white siphon (dark grey area) on Connections can also be located the underside of the shower base on the opposite side...
- Page 8 Setting up and aligning the shower tray Place the shower tray where you want it to stand later. Align the shower tray using a spirit level. You can adjust the height of the individual feet. It is very important that the shower tray is level, does not tilt and that all feet are on the floor.
-
Page 9: Fitting The Front Panel
Fitting the front panel 4x16mm Bottom aluminium Top aluminium U-seal straight alumi- Self-tapping profile profile nium profiles screws In this step, attach the side aluminium profiles E3 to the top and bottom aluminium profiles E1 and E2 using the Top aluminium profile self-tapping screws G1. - Page 10 4x10mm Fixierung U-Dichtung Selbst schnei- dende Blech- Frontscheiben treibschraube Then attach the re- maining two U-seals G2 to the open inner sides of the fixed front screens. To position these firmly in the frame, screw the fixing G4 into the upper and lower aluminium profile us- ing the self-tapping screws G3 as shown...
- Page 11 - von aussen anzubringen T-Dichtungen - Starre Fitting doors - von innen anzubringen - ins Mittelprofil reinschieben F-Dichtungen 4x10mm - Dichtlippen für die Tür Self-tapping Door handles Magnetic Door stopper Door rollers F-seal screw strips Fugendichtband - selbstklebend - zwischen die Profile an der Rückwand kleben Now insert the door rollers H1 into the upper and lower aluminium profile and...
- Page 12 Connecting side walls and panel 4x16mm Self-tapping screw Drill 5 holes evenly spaced along the rear edge of the side panels B and D using a 3 mm drill bit. Then connect the side panels to panel C using the self-tapping screws J1 as shown in the illustration above.
- Page 13 Installing the foot massage, glass shelf and hand shower Foot massage Glass shelf Water hose Hand shower Hand shower Long water short holder hose Fit all attachments (foot massage, glass shelf, hand shower holder, etc.) to the rear walls BEFORE you place and screw the side walls and panel onto the shower tray. This saves a lot of time during the final assembly of the cabin.
- Page 14 Connecting the front and side panels 4x16mm Self-tapping screw Similar to mounting the side panels to the panel, now connect them to the already mounted front panel. To do this, again drill 5 holes evenly spaced in the front edges of the side panels B and D.
- Page 15 Connecting the shower enclosure and shower tray M6x30mm Threaded bolt with nut and washers Align the structure exactly on the shower base. At the bottom edge of the back of the side panels, drill 3 holes at equal intervals through the edge of the side panels and at the same time through the shower base F.
- Page 16 Put on the lid M6x30mm Threaded bolt Rain shower with nut and washers Before putting on the cover A, screw the rain shower head K3 into it. Then feed the inlet hose through the opening in the cover and screw it to the rain shower head from above. Now drill the 3 holes through the cover and the upper edge of the side walls in the same way as for the shower tray.
- Page 17 Connecting cable connections Wiring the shower is quite simple. All the connections that are linked together are marked with small stickers. For example, “Speaker” is connected to “Speaker”. Please note that a Y-cable for connecting the white lighting is included in the scope of deliv- ery.
- Page 18 Hose connections The sketch shows an overview of the water connections, which are located behind the shower panel. View of the connections from behind Now connect the hoses for the individual functions to the five-way distributor at the top of the fitting.
- Page 19 Installing drain pipes The drain is located in the floor, but the waste pipe can also be attached to a drain in the wall, but not higher than 6 cm so that the drain is still guaranteed. The HT 40 flexible pipe used for this is included in the scope of delivery.
- Page 20 a screw connection is not properly sealed, check whether the seal in the screw connection is correctly seated and whether it is screwed tight enough. After the leak test, the electrical functions can now be checked. If the plug is plugged in, you can test the light, radio, steam function, etc.
- Page 21 Aromatherapy Aromatherapy is only available for showers with a steam generator. Take a small, heat-re- sistant cloth (e.g. made of linen or cotton) measuring approx. 5 x 5 cm and drip 2-4 drops of our highly concentrated aroma oil onto it. Now push the steam head upwards and insert the cloth (the steam head is the small white box at the bottom of the aluminium panel, approx.
-
Page 22: Using The Control Panel
Using the control panel ON/OFF (press for 3 seconds) Display Temperature Display Time preset Ozone cleaning °C Display of the active audio functions 96.5 Fan display, Steam Steam on/off Interior lighting Radio ON/OFF Telephone Ozone cleaning Channel search Volume, Temperature,Time, Volume, Transmission Temperature, Time,... - Page 23 Display key lock Please note that when switching on, the button must be pressed until the signal tone sounds. Only then can you operate the other buttons. After a relatively short time, if you do not operate the display, the key lock is automatically activated.
- Page 24 Small scratches can be polished out with toothpaste and a soft cloth, for example. Make sure that the drains, which are located in the middle of the shower tray under- neath the rear walls, are always open. If these become blocked, the water will no longer run back into the inside of the tray.
-
Page 25: Warranty And Service
Spare parts can be ordered from our customer service department. Please describe the spare part in detail - it is best to add the abbreviation used in this booklet (letter/number) and the exact type of cabin (e.g. D26). We are always open to your comments and sugges- tions. - Page 28 Senior GmbH...
