Summary of Contents for Bison BS6250iE

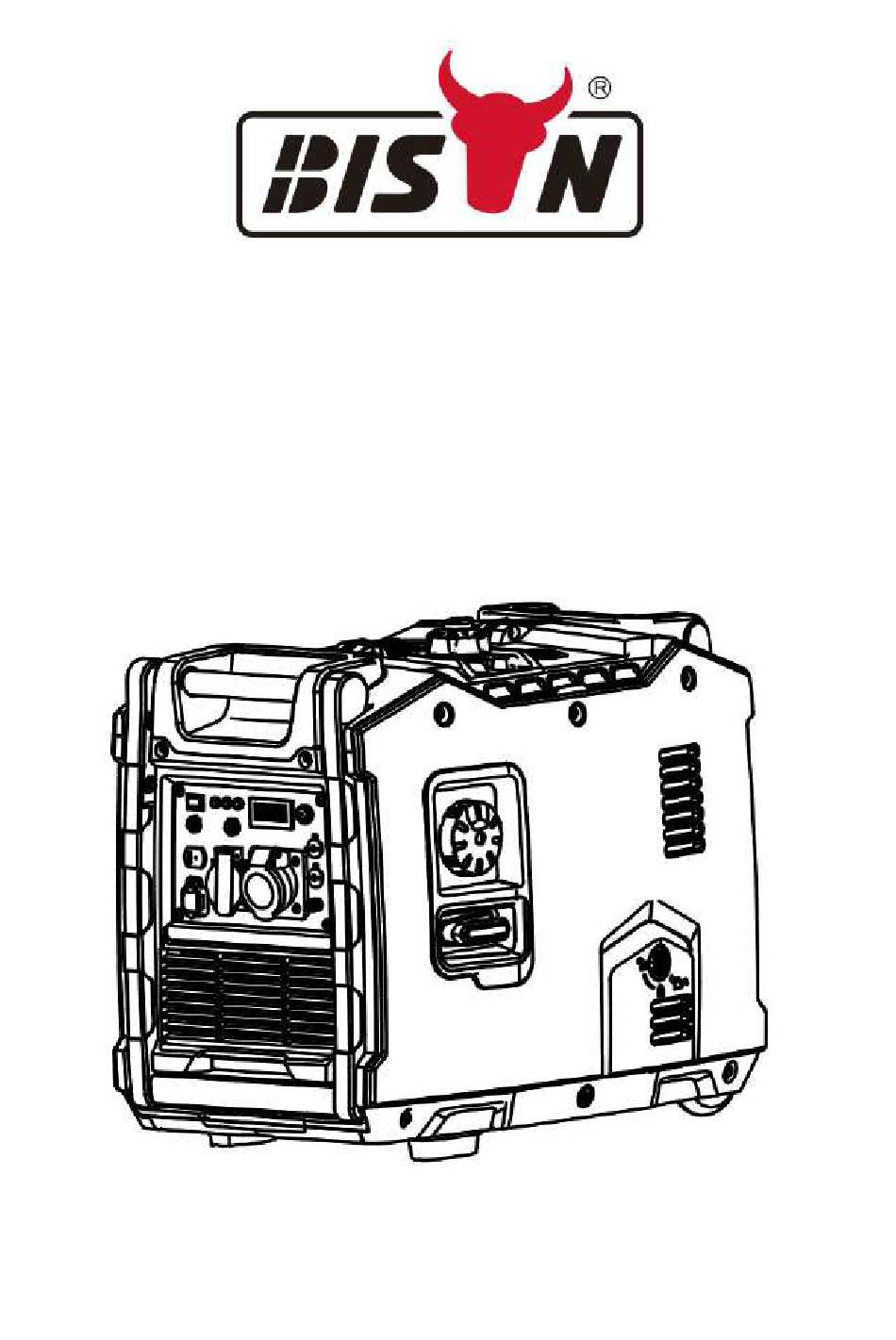

- Page 1 INVERTER GENERATOR Owner’s Manual...
- Page 2 Thank you for buying our inverter generator. ●The copyright of this specification belongs to our company. ●Any contents of the manual shall not be copied without the written permission of the company. ●The company reserves the right of modification of product and revision of the manual without any notice.
-
Page 3: Safety Warning
SAFETY WARNING You and other people's personal and property safety is very importan t. please read carefully about the safety warning witch are in the manual or on the stickers. Safety warning can mention you the dangers that may hurt you or others. safety warnings including:... -
Page 4: Table Of Contents
CONTENT SAFETY WARNING CONTENT 1. SAFETY INFORMATION................6 (1). safety specifications................6 (2). Special Requirements.................7 2.Security warning stickers...............8 3.COMPONENTS IDENTIFICATION.............9 (1). Components Feature................9 (2). control panel ...................10 (3). model and serial number..............11 4. control system..................12 (1). One-Button start................12 (2). Oil alarm system (yellow)..............12 (3). - Page 5 (5). AC Circuit Breaker Protection............19 (6). Earthing Terminal................20 6. Generator Usage.................21 (1). Connect to Household Power Supply..........21 (2). Generator Ground................22 (3). Alternating Current................22 (4). Used at high altitudes..............23 7. Starting the generator..............24 (1). Recoil start..................24 (2). Electric start...................25 (3). Remote start..................26 (4).
-
Page 6: Safety Information
1. SAFETY INFORMATION (1). Safety specification Please read and understand this manual well before operating. Familiarize with the safe operating procedures of generators can help you avoid accidents. Do not use indoor Do not use it in damp environment. Do not connect to other power sources. Do not smoke while fueling... -
Page 7: Special Requirements
Do not spill fuel while filling. Do not re-fuel while generator is running. Move all combustible materials away from generator at least 6.5ft. while in use. Special Requirements (2). · Electrical equipment including wires and plugs should be no nudity ·... -
Page 8: Security Warning Stickers
2. Security warning stickers Pay attention to the security warning stickers before you use. -
Page 9: Components Identification
3. COMPONENTS IDENTIFICATION (1). Components Feature handle Start switch Control Recoil Starter panel Right cover Maintenance cover switch handle Oil maintenance cover Maintenance cover switch Fuel Tank Cap handle Fuel Gauge Spark plug maintenance handle cover Left cover Muffler cover Shock absorber Muffler... -
Page 10: Control Panel
(2). Control panel (Depending on the configuration, the factory will make the appropriate adjustments, those changes are without separate notice.) 1. ECO switch 8. Ground terminal 2. Low Oil Indicator 9. AC socket 3. Overload Indicator 10.AC socket 4. Running Indicator 11. -
Page 11: Model And Serial Number
(3). model and serial number model final number Serial number... -
Page 12: Control System
control system (1). One-Button start Turn the fuel switch to “RUN” position. Then press the One-Button start button for approximately 1 second. The generator will be started immediately and the button will show green light. When generator running, press this button for approximately 1 second, the generator will be stopped. -
Page 13: The Ac Indicator Light (Green)
Off, and the overload indicator light (red) will turn on, but the engine won’t shut down. While the overload light is on, and the generator has no output, please take following measures: 1. Remove the connected equipment and stop the engine. 2. -
Page 14: Co Failure Indicator Light (Yellow)
(6). CO Failure indicator light (yellow) When the CO sensor of the generator set malfunctions and cannot determine the concentration of CO in the environment normally, the indicator light will light up, causing the generator set to shut down and prevent the generator set from starting normally. -
Page 15: Earthing Terminal
supply requirements. When city power comes, the generator will stop output and automatically switch to city power supply. (9). Earthing Terminal The earthing terminal is connected to the ground wire to prevent electric shock.When electrical equipment is grounded, the generator must be grounded. ground terminal 5. -
Page 16: Engine Oil
the "ON" position so that the tank and the atmosphere are communicated. On transportation of the generator, the tank cap ventilation switch should be rotated to the "OFF" position to avoid fuel leakage. Ventilation OFF Position ON Position Switch swisSwiswit chSSwiSswitc After refueling, wipe the residual gasoline with a clean, soft cloth to avoid ... -
Page 17: Hand-Drawn Starting Handle
Open the oil cap ③. ③ ② 4. Inject the specified amount of recommended oil and tighten the oil cap. Restore the oil maintenance door and turn the knob to the OFF position. Recommended oil: SAE SJ 10W-40 Recommended oil grade: API standard SE type or higher Oil capacity: 0.7L (3). -
Page 18: Three-In-One Switch(Fuel Switch/E-Start Switch/Choke Switch)
Manual Starting Lever Do not let the starting handle snap back after starting, but gently put the handle back. Electric start button CHOKE Starting Switch (4). Three-in-one Switch Fuel switch/Electric start switch/Choke （ ） The fuel switch is the device that controls the flow of fuel from the tank to the carburetor.After shutdown, ensure that the start button on the start switch is in the "OFF"... -
Page 19: Ac Circuit Breaker Protection
points to the run and choke state. The electric starting button is a control device which drives the starting battery built in the unit to drive the engine to start.When the rotary starting switch makes the electric starting switch point to the run or start position and you press the electric starting switch button, the starting electric motor drives the engine to start. -
Page 20: Earthing Terminal
(6). Earthing Terminal Earthing terminal is a special terminal used to ground the whole generator well. Earthing Terminal... -
Page 21: Generator Usage
6. Generator Usage · Applicable temperature: -5℃ ~ 40℃. · Applicable humidity: below 95%. Applicable altitude: the area below 1000 meters (Drop the power or contact · the dealer to adjust the carburetor for use in the area above 1000 meters). (1) . -
Page 22: Generator Ground
(2). Generator Ground It is recommended to ground the generator with a good lead with in insulated leather in order to prevent the generator from being damaged by electric shock or the wrong use of electricity Earthing Terminal (3). A lternating Current Make sure before starting the generator The total power of the load apparatus (the sum of resistive, capacitive and... -
Page 23: Used At High Altitudes
In general, capacitive and inductive load, especially motor drive device, produce a large starting current when starting up.The following table is for your reference when you connect these electrical appliances to the generator set. Type Wattage Typical example Equipment Start Rated Device Star... -
Page 24: Starting The Generator
carburetor, this decline would be even greater. If a carburetor suitable for high altitude use is fitted to a gasoline engine for low altitude use, too thin mixture will reduce the power output of the gasoline engine, cause overheat or even serious damage. Start the Generator Before starting the generator, please prepare the unit before operation. -
Page 25: Electric Start
again. Gently pull the starting handle up until resistance is felt and pull it out 4） quickly. When the generator is started, rotate the start switch to place the start 5） button in the "run" position. Put the AC circuit breaker protector in the "ON" position before the 6）... -
Page 26: Remote Start
When start a hot engine and fail to start normally according to the above method, then rotate the switch to "RUN" position and start it again. Press the start button. 4） When the generator is started, rotate the start switch to place the start 5）... -
Page 27: One-Button Start
2) Rotate the start switch to place the start button in the "run" position a, Fuel System on b, Ignition system on c, Remote control controller on 3) Press the "START" button of the remote control key, the generator will start automatically (in order to avoid mis-operation, there is an operation delay function, please press the remote control button for about 1-2 seconds when operating the remote control) 4）When the generator is started, put the AC circuit breaker in... - Page 28 2) Rotate the start switch to place the start button in the "run" position a, Fuel System on b, Ignition system on c, If the generator both have One-Button start and remote start, make the remote controller power on. If the generator only has One-Button start, please ignore this step 3) press the One-Button start button for approximately 1 second.
- Page 29 The daily use of the starting battery of the generator set should pay attention to the following matters to protect the starting battery and prolong the battery life: 1. Theoretically, the battery power should be kept above 60%, which is more helpful to prolong the service life of the battery. 2.
- Page 30 a. Connect an external DC12V power supply from the DC12V output socket of the control panel As shown in the figure below, connect the external DC12V power supply to the DC12V output socket or terminal of the control panel of the generator set through the wire plug.
- Page 31 DC12V power supply, because the current that the low-power DC12V power supply can provide is not enough to start the generator. Connect a DC 12V battery or Power Bank Supply in paralle to the battery output 2.Remove the choke and then manually pull to start the generator set Disassemble the left cover, turn the CHOKE to OFF position, when the engine is hot and can not be started normally,...
-
Page 32: Stop The Generator
8. Stop The Generator Disconnect all electrical equipment. 1） Turn the ECO switch to "OFF"; 2） the AC circuit breaker protector; 3）Turn off Turn the start switch and place the start button in the "OFF" position. 4） Turn the tank cap ventilation switch in the "OFF" position. 5）... -
Page 33: Maintenance
Maintenance Period Every First Every Every time time in three Year months or Use month Item or 20 every hours after hours after that Engine Oil Check-Add √ Replace √ √ Reducer Gear Check Oil Level √ Oil (if any) Replace √... - Page 34 Fuel tank and Clean √ fuel filter ** Fuel Pipe Check Every two years (Replace if necessary) Cylinder head, Eliminate Displacement <225cc, every 125 piston carbon deposition hours; Displacement ≧225cc, every 250 hours. *These items should be replaced if necessary. **These items shall be maintained by the authorized dealer of our company unless the User has the appropriate tools and maintenance capabilities.
-
Page 35: Change The Engine Oil
Please stop the machine before carrying out any maintenance. The engine should be placed in a horizontal position. To prevent the engine from starting, separate the spark plug cap from the spark plug. Do not use it indoors or in poorly ventilated places such as tunnels and caves, and make sure that the working area is well ventilated. -
Page 36: Maintain The Air Filter
Long-term and frequent skin contact with engine oil may lead to skin cancer. Although this is not inevitable, it is recommended to wash the skin exposed to engine oil immediately and thoroughly with soap and water. From the perspective of environmental protection, please properly dispose of the used engine oil after use. -
Page 37: Spark Plug
Locking clamp Filter element Air filter cover Locking clamp (3). Spark plug Please replace the spark plug in accordance with the original specification： F7TC 1） Detach the cover of spark plug. 2） Remove the spark plug with the socket wrench. 3）... -
Page 38: Storage
10. Storage In order to avoid burning or fire caused by contact with high-temperature parts of the generator, the generator must be cooled before being packaged and stored. Please ensure the storage area is clean and dry if long-term storage is needed. -
Page 39: Trouble Shooting
11. Trouble Shooting... -
Page 43: Parameter
13. Parameter items BS6250iE Single cylinder, four-stroke, air-cooled, Engine model cylinder center inclined 55° displacement(cc) Gasoline Ignition system Integrated digital ignition engine Starting mode Recoil Start/E-start Remote start Tan capacity (L) Oil capacity(L) frequency (Hz) phase Single phase voltage (V)
