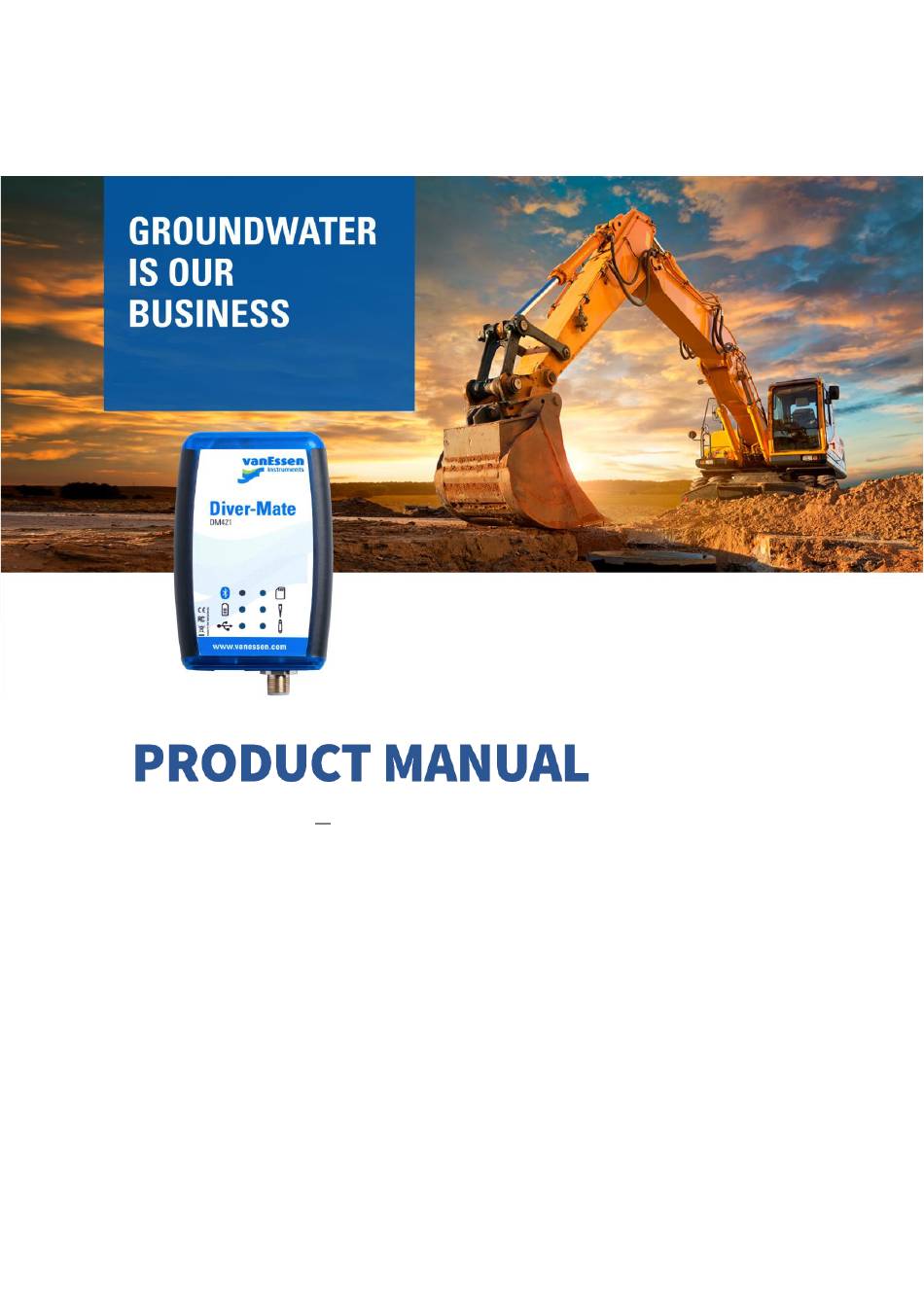

- Page 1 Diver-Mate DM421...
- Page 2 Van Essen Instruments B.V. makes no warranty of any kind with regard to this material, including, but not limited to, its fitness for a particular application. Van Essen Instruments B.V. will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced specifications. The items comply with all applicable Essential Requirements of the Directives. © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com...
-
Page 4: Table Of Contents
Software ............................. 3 Battery ............................3 Bluetooth Low Energy ........................ 3 Checking the Diver-Mate ......................4 Connecting the Diver-Mate to a Diver ..................4 Reading Atmospheric Pressure ....................4 Data Storage and Managing Data ....................5 Firmware Update ........................6 Appendix A Specifications ........................ -
Page 5: Introduction
The Diver-Mate increases download efficiency while reducing data transfer errors. The Diver-Mate stores the data on its internal memory, and it can store data from thousands of Divers. A full battery supports up to 5 days of operational use and a LED indicator shows the battery capacity. -
Page 6: System Overview
Diver shows if a Diver is connected. Flashes when data is being transferred. System Overview The Diver-Mate can be used as a stand-alone device or with the Diver-App for Android software to collect Diver data in the field as depicted in the figure below. The Diver is connected to through a DXT Cable to the Diver-Mate. -
Page 7: Specifications
See appendix B for more details on these products. 2 Features and Operation Software The Diver-Mate can be used with the Diver-App for Android (available in the Google Play Store) and the Diver-Office software. In addition, the Diver- Explorer. Battery The Diver-Mate contains a rechargeable polymer lithium battery. -
Page 8: Checking The Diver-Mate
Continuous red Memory error. Connecting the Diver-Mate to a Diver When a Diver is connected through a DXT Cable to the Diver-Mate the data from the Diver will be automatically be downloaded to the Diver- The meaning of the DXT Cable... -
Page 9: Data Storage And Managing Data
2.7.1 File and Folder Structure You may use (Windows) File Explorer to view the Diver data on the Diver-Mate. After the Diver-Mate is connected through the USB port, the Diver-Mate appears as a drive named DIVER-MATE. The drive contains the following files and folders: •... -
Page 10: Firmware Update
2.7.2 Diver-Office Diver-Office allows you to import the data that is stored on the Diver-Mate. To import data in Diver- Office from the Diver-Mate, follow the steps below: From the menu bar in Diver-Office go to Import > Diver-Mate/Diver- Ensure the Diver-Mate is connected to your computer through the USB port. -
Page 11: Appendix A Specifications
-20 to 60 °C Storage Temperature 0 to 30 °C 3.1.5 Barometric Pressure Sensor Range 400 to 1100 cmH Accuracy ±2.0 cmH Resolution 0.06 cmH maximum over temperature range -20 to 60 °C © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com... -
Page 12: Appendix B Diver Accessories
Diver-Mate. Send the downloaded data to Diver-HUB. Diver-App is easy-to-use and has an intuitive user interface. • Units: Metric and U.S. • 2 languages: Dutch and English © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com... -
Page 13: Diver-Hub Software
The TD-Diver is available in the following pressure ranges: 10 m, 20 m, 50 m and 100 m. Part no: DI8xx © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com... -
Page 14: Baro-Diver
The Cera-Diver is available in the following Part no: DI7xx pressure ranges: 10 m, 20 m, 50 m and 100 m. © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com... -
Page 15: Micro-Diver
Part no: DI28x The CTD-Diver is available in the following pressure ranges: 10 m, 50 m, 100 m and 200 m. © April 2023 Van Essen Instruments. All rights reserved. www.vanessen.com... -
Page 16: Ddc-Dxt Adapter
DDC-DXT Adapter The DDC-DXT Adaptor is the connection between the Diver-Mate or Smart Interface Cable and a DDC cable. The Smart Interface Cable screws onto the DDC-DXT Adaptor. Once connected, the Diver deployed on the cable can be read by clicking the DDC -Adaptor onto the top connector of the DDC Cable.
