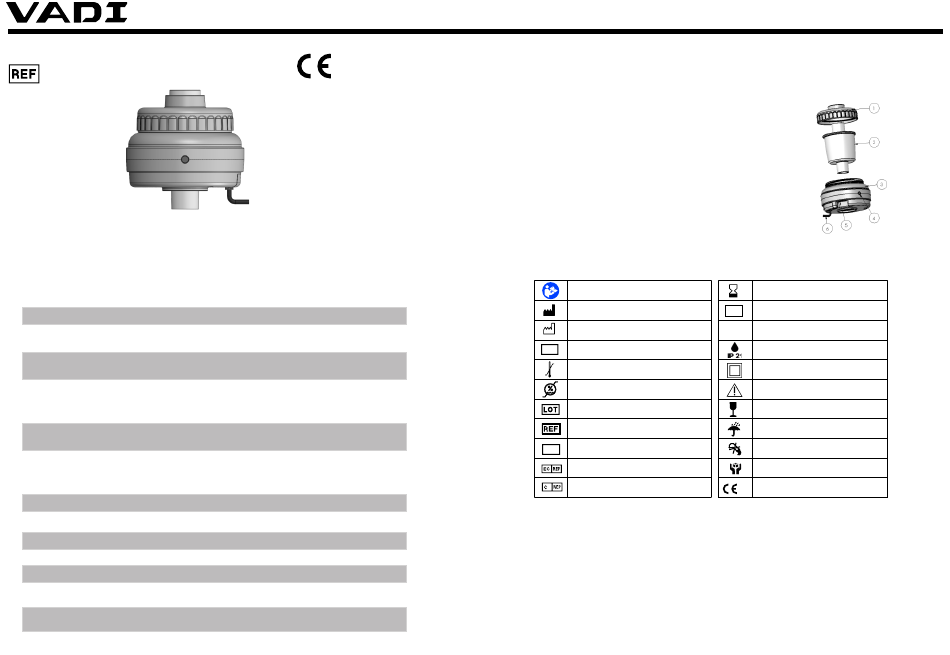

VADI VH-130 Manual

Bacteria Filter Heater
VH-130
Manual
Read instruction carefully before use
2021.12.23
1. Specification
Dimensions
Weight
Material
Operation Environment Temperature
and Pressure
Humidity RH
Storage Temperature and
Humidity RH
Transport Temperature and
Humidity RH and
Pressure
I/P
Power Cord Length
IP classification
Heater Temperature
Tidal volume
LED light
Indication
This device life cycle is 3 years.
2460
Made In Taiwan
VA-1-VH-130-EN.MDR_01
Height = 8cm, diameter = 9.6cm
Heater:115g, Filter:62 g,
Power Cord:230g
- Thermoplastic housing (Polycarbonate)
- Aluminum :sleeve for filter
18 to 26 ºC
700 to 1060 hPa
Humidity RH:15%~95%
Storage Temperature: 25~40℃,
Humidity RH:15%~95%
Transport Temperature: -10~60℃,
Humidity RH:15%~95%
595 to 1013 hPa
100-240Vac, 47-63Hz, 0.8-0.4A
1.8M
IP21
70 ºC±3 ºC ( cutout : 85±7 ºC )
30ml~250ml
G r e e n l i g h t : N o r m a l
Yellow light : Out of order
The patient who needs respiratory therapy
with ventilator.
2. Intended use
The heater is intended to use for heating the expiratory filter to prevent the
condensation accumulated in the filter when exhalation gas passes the filter.
3. General information
3.1 Bacteria Filter Heater include:
(1) Lid
(2) Filter 800-52600
(3) Heater body
(4) LED
(5) Switch
(6) Power cord
3.2 The LED shows 2 different colors:
Green light - Normal., Yellow light - Out of order.
3.3 Symbol Glossary:
Symbol Title and Meaning
Consult instructions for use
Manufacturer
Date of manufacture
MD Medical device
Temperature limit
Storage Humidity limitation
Batch code
Catalogue number
Unique device identifier
UDI
EU Authorized Representative
Switzerland Authorized
H
Representative
4. Principle
The heater takes advantage of heating to prevent water condensation in filter and decreased gas
flow resistance. When the filter is kept warm and dry, it will continue to work efficiently according to
specification. A water trap can be used below the device to collect water condensation.
The filter system is generally used to prevent the spread of infectious disease and protect sensitive flow
monitoring equipment as used in mechanical ventilators.
Use-by date
SN
Serial number
●
ON
Drip-proof
Class II
Caution
Fragile, handle with care
Keep dry
Use no hooks
Handle with care
CE Mark
2460
