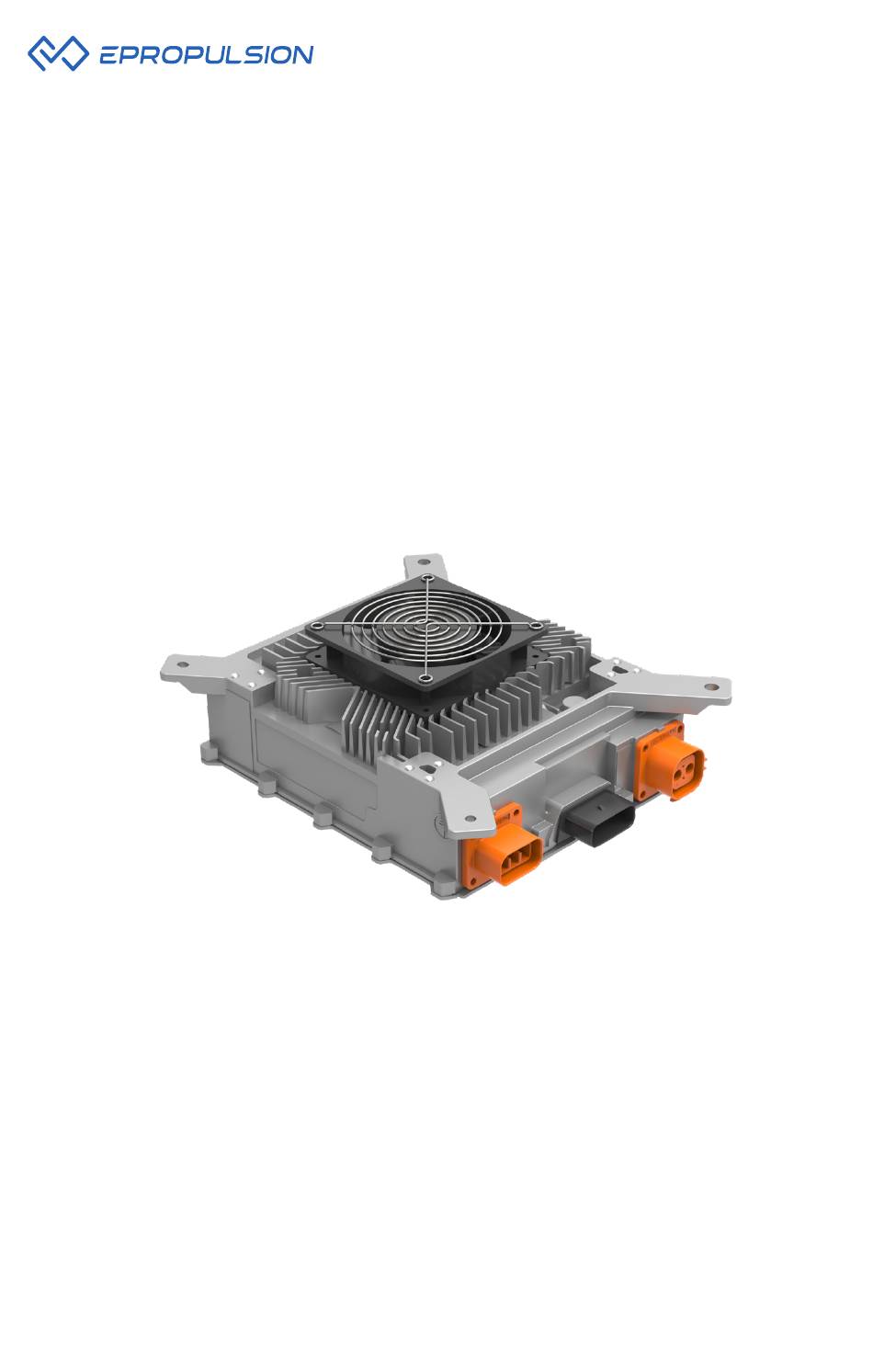

- Page 1 G Battery Charger 32A User Manual Model: HK-LF-115-58 2024.12 Version 1.2 Copyright © 2023 ePropulsion. All Rights Reserved...
-
Page 3: Using This Manual
Before use of the product, please read this user manual thoroughly to understand the correct and safe operations. By using this product, you hereby agree that you have fully read and un- derstood all contents of this manual. ePropulsion accepts no liability for any damage or injury caused by operations that contradict this manual. - Page 4 You need to be alert, perform relevant operations reasonably, and pay atten- tion to safety. when installing, operating, maintaining or serving ePropulsion products, there are many safety risks in the process. You need to be alert, perform relevant operations reasonably, and pay attention to safety.
-
Page 5: Product Identification
Product Identification 312 3 268.4 3 Below picture indicates the serial numbers of the HK-LF-115-58 charger. Please note the posi- tion of the serial numbers and record them for access to warranty service and other after-sale Default unit : mm services. -
Page 6: Table Of Contents
Table of Contents Acknowledgement ....................1 Instructions for use ....................1 Safety warning instructions ..................1 Product Identification ..................... 3 1 Introduction ......................5 1.1 In the package ......................5 1.2 Main features ......................6 1.3 Specifications ......................6 2 Interface description ................... 7 2.1 Dimensions ......................7 3 Mechanical installation .................. -
Page 7: Introduction
1 Introduction Thank you for purchasing ePropulsion G Battery Charger 32A. The G Battery Charger 32A is a product designed for the G-Series Battery. 1.1 In the Package When you receive the Charger, unpack its package and check if all the items below are included in the package. -
Page 8: Main Features
Built-in temperature sensor to turn off output under overheating operating conditions (internal 90°C). Ingress Protection class IP67. 1.3 Specifications Product Name 6.6KW On-board Charger Model HK-LF-115-58 Product Description G Battery Charger 32A Environmental Operation temperature -40°C to 55°C Storage temperature -40°C to 105°C... -
Page 9: Interface Description
2 Interface description Output Communication Input Output Communication Input Cooling fan Cooling fan 2.1 Dimensions 232 0.8 7-0.5 232 0.8 7-0.5 312 3 268.4 3 Default unit : mm 312 3 268.4 3 Default unit : mm... -
Page 10: Mechanical Installation
2. Do not place objects within 2 cm around the charger to block it. 3.1 Operations Please follow the wiring diagram below to perform wiring operations without AC power on. If there are more complex parallel operating conditions, please contact ePropulsion Technology's authorized dealers. 标记... -
Page 11: Precautions For Charging
3.2 Precautions for charging 1. This charger is specially designed to charge the G series batteries of ePropulsion Company, please do not use it for other purposes. 2. When charging the battery, connect the positive electrode of the charger power cord and the... -
Page 12: Warranty Terms
(the “ePropulsion Service Partners”) with minimum maintenance charge per occurrence. In all warranty cases, ePropulsion will only bear the repair cost and other costs (such as those related to product installation, disassemble, transportation, financing, rental, etc.) as a direct result of issues covered by the Limited Warranty only. -
Page 13: Out Of Warranty
4.2 Limited Warranty Claim Procedures The Customer shall follow the warranty claim process to make a Limited Warranty claim: 1. Contact your nearest ePropulsion Service Partners and they will provide further instruction to you if such defects are covered by the Limited Warranty or theirs. - Page 14 6. In case your warranty claim be rejected, a repair/replace cost and fee with round trip delivery cost will be estimated and sent to you for confirmation. ePropulsion Service Partners will only begin the work after your written confirmation.
- Page 17 (*In order to validate warranty, please fill in this form first and read the Warranty Policies.) OWNER INFO. Owner Name Address Phone Email DEALER INFO. Store Name Address Phone Email PRODUCT INFO. Date of Purchase (mm/dd/yyyy) Serial No.
- Page 20 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. Guangdong ePropulsion Technology Limited Webseite: www.epropulsion.com E-Mail: service@epropulsion.com...
