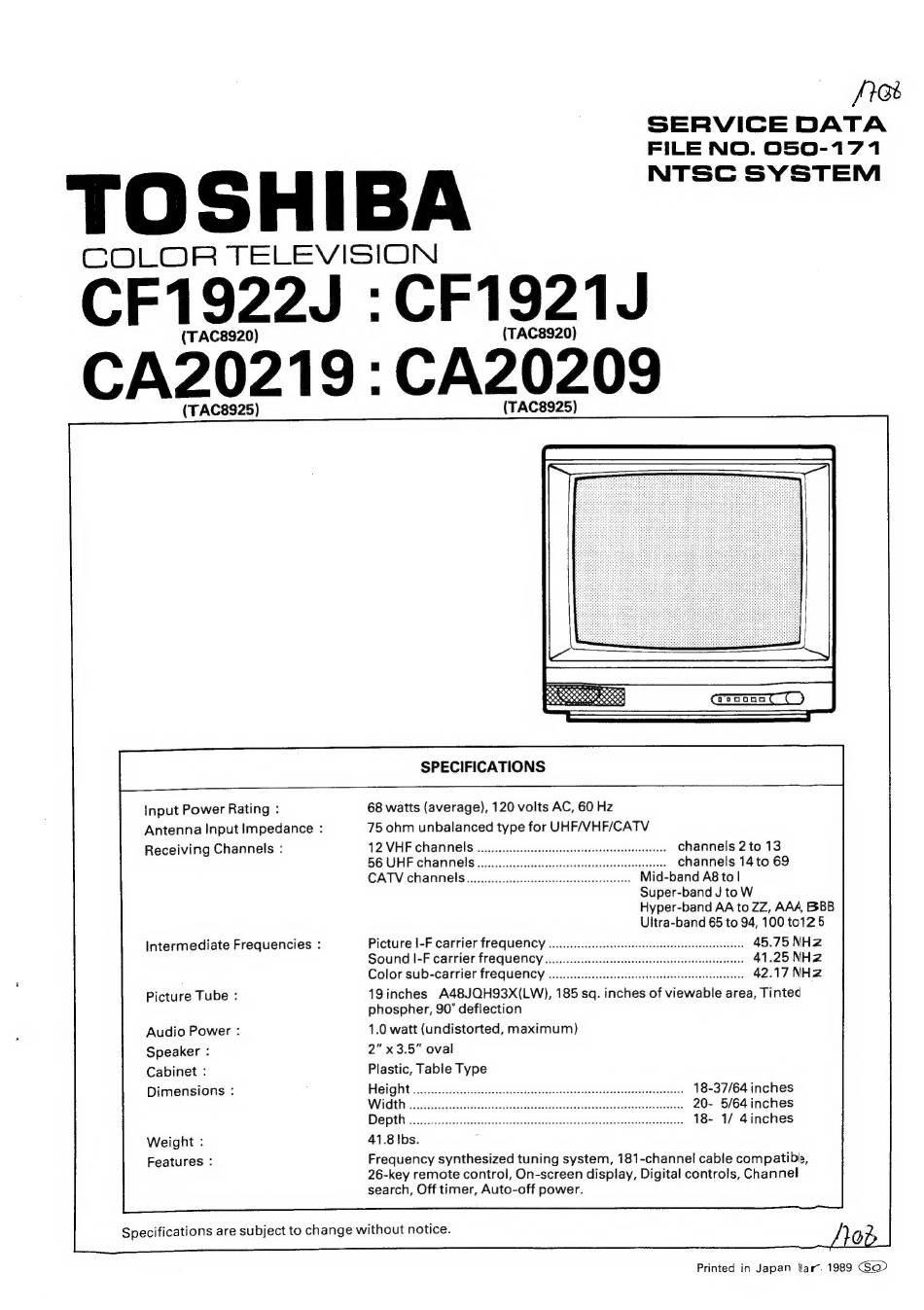

Toshiba CF1922J Manual

/2G8
SERVICE DATA
FILE NO. 050-171
NTSC SYSTEM
(TAC8920)
(TAC8920)
(TAC8925)
(TAC8925)
SPECIFICATIONS
Input Power Rating :
Antenna Input Impedance :
Receiving Channels :
Intermediate Frequencies :
Picture Tube :
Audio Power :
Speaker :
Cabinet :
Dimensions :
Weight :
Features :
68 watts (average), 120 volts AC, 60 Hz
75 ohm unbalanced type for UHF/VHF/CATV
12 VHF channels
56 UHF channels
CATV channels
channels 2 to 13
channels 14 to 69
Mid-band A8 to |
Super-band J to W
Hyper-band AA to ZZ, AAA, BBB
Ultra-band 65 to 94, 100 to12. 5
Picture I-F carrier frequency 45.75 NHz
Sound |-F carrier frequency 41.25 NHz
Color sub-carrier frequency 42.17 NHz
19inches A48JQH93X(LW), 185 sq. inches of viewable area, Tinted
phospher, 90° deflection
1.0 watt (undistorted, maximum)
2" x 3.5" oval
Plastic, Table Type
swsua a Ghtt wth vealith easel dceale vedi ceavacadtbeeteatueregicniaed 18-37/64 inches
silt, sbetoashs tue saeseAt aide date, MacNee eats areas 20- 5/64 inches
tale raha hevelasesnee folate eontevcon acl dad atiad aetove bite 18- 1/ 4inches
41.8 Ibs.
Frequency synthesized tuning system, 181-channel cable compatibk,
26-key remote control, On-screen display, Digital controls, Channel
search, Off timer, Auto-off power.
Printed in Japan lar. 1989
