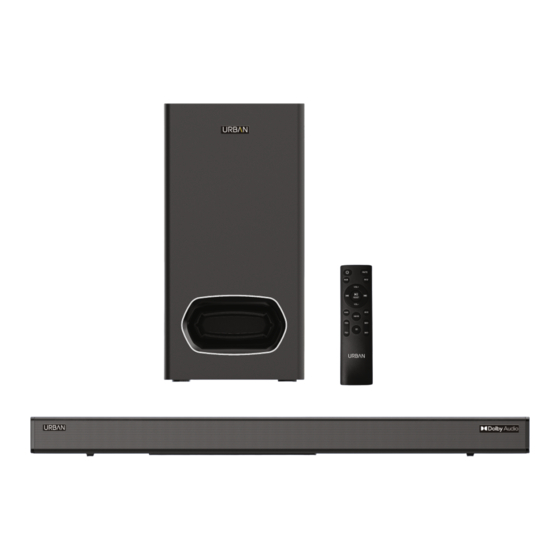

- Page 1 2.1 Channel Home Theatre HARMONIC Soundbar 2280 User Manual...
-
Page 2: Specifications
Specifications UBS010 Model Number: URBAN Harmonic Product Name: Soundbar 2280 Type: 2.1 Channel 300Watt RMS Total Output: Speaker: 80Watts X 2 Driver Diameter: 55mm Subwoofer: 120Watts X 1 Subwoofer Diameter: 132mm Bluetooth Version: Bluethoth Range: 10 Meter Connectivity: Aux, BT, Optical, HDMI Arc, USB... -
Page 3: Preparation For Use
Preparation for Use Unpacking and Set Up • Remove the soundbar from the carton and remove all packing material from the Soundbar. Save the packing material, if possible, in case the soundbar ever needs to be serviced or transported. • Remove any descriptive labels or stickers on the front or top of the devices' exterior casing. •... -
Page 4: Product Diagram
Product Diagram 8888 LED DISPLAY OPTICAL HDMI(ARC) AC IN lnput/Standby VOL+ VOL- 1. LED indicator: It indicates pairing between nnPAIR the Soundbar and the subwoofer. 2. PAIR Button: It automatically pairs the soundbar with subwoofer. 3. USB Port (CAN'T PLAY MP3 MUSIC, For Software Upgrade only) 4. -
Page 5: Pair Up With The Subwoofer
Pair up with the subwoofer Plug the soundbar and the subwoofer into the mains sockets at the same time 1. Press "STANDBY" to turn the soundbar on after it has been connected the the AC. Then press "INPUT" to select Bluetooth (BT) as the input mode. This will cause the soundbar to enter into pairing mode with the wireless subwoofer. -
Page 6: Remote Control
Remote control : Standby mode for power on/off. 2. PAIR: Connect or disconnect to the pairing device. (Press the button more than 2 seconds). 3. Volume+: Master volume up : Pre button: Previous program (Only work under USB & BT mode of smartphone). -
Page 7: Mounting On The Wall
Mounting on the wall Warning: • If you don’t feel confident to correctly and securely wall-mount the soundbar, Seek the assistance of an experienced person or professional. • Install the speaker on a vertical, fast, reinforced area of wall. For plaster walls, it is recommended to screw into wall studs for greater security. -
Page 8: Auto Standby
Operating Instructions Setting the Soundbar 1.Plug the power cord into the mains, the display should light up. 2. Switch the soundbar on by pressing the power button on the soundbar or the STANDBY button on the remote. The default input mode will appear on the display after being switched on. 3. - Page 9 " will be displayed on the LED display and the blue LED 2. Turn the Bluetooth of your device on, search for " URBAN Harmonics 2280 " on your Bluetooth list, and then select Bluetooth connection. 3. When Successfully paired, you will hear a tone and the " ”on the screen stops flickering.
- Page 10 Playing Audio via USB Port • The soundbar automatically switches to USB input mode with the LED display “ ” when a USB flash drive is inserted. • When a USB flash drive is inserted and soundbar is powered on, press the INPUT key on remote controller or STANDBY button on soundbar to switch to USB input mode (in case it doesn’t change automatically) with LED display lighting up “...
-
Page 11: Optical Mode
Optical Mode • Remove the cap of optical cable (keep the cap for the future use); check the direction of the plug. Connect the soundbar and TV with the optical cable. • Use this mode to play music from a TV with optical digital output on the sound bar. In TV sound settings, select the soundbar optical connection (output for audio). - Page 12 HDMI(ARC) Mode 1. The soundbar supports HDMI (ARC) with audio return channel (ARC). You can hear the TV audio through your soundbar by using a single HDMI (ARC) cable. But on condition that your TV is ARC compliant. 2. Using a high speed HDMI (ARC) cable, connect the HDMI (ARC) connector on the soundbar to the HDMI (ARC) connector on the TV.
-
Page 13: Troubleshooting
Trouble Shooting PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Another input source is selected. Select an appropriate input source. Cancel the mute function. The mute function is activated. The volume of sound bar or TV/other device Increase the volume level on sound bar or is adjusted too low. - Page 14 Trouble Shooting PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION play from a connected Move the device closer to the sound bar, Bluetooth device is or remove any obstacle between the device and The Bluetooth reception is poor. poor and connection the sound bar. is not stable.
-
Page 15: Important Safety Instruction
Important Safety Instruction Thank you for purchasing the home theater URBAN Harmonic Soundbar 2280. Please read this user manual carefully and keep for future reference. Warning: Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. -
Page 16: Important Safety Instructions
6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7. - Page 17 Scan to Know more about the product Gourban.in / Harmonic 2280...
