Blomberg S Series Technical Information

A Bloomberg Professional Services offering

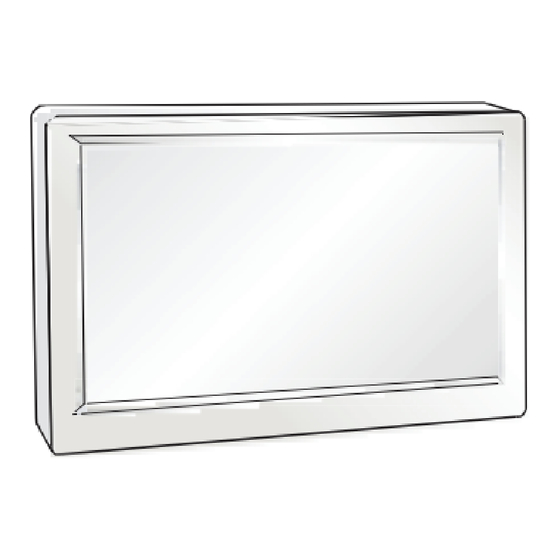

27" Flat Panel
S-Series
Technical information
BFP200-27
27'' Flat Panel S-Series
Important precautions
• Spray water onto a soft cloth two to four times, and use it
to clean the front frame; wipe in one direction only.
• Too much moisture may cause staining.
Assembling & preparing
Included accessories
DisplayPort cable Power cord AC/DC adapter
Component & button description
Power on
Press the joystick
button once with
your finger to turn
on the monitor.
1
1. Power button
2. Input connectors (Power,
2
DC-IN
DisplayPort, DVI-D, USB-C)
27'' Flat Panel S-Series
Moving & lifting the monitor
When holding the monitor, the screen
should face away from you to prevent it
being scratched.
Adjusting the stand height
1. Place the monitor mounted on the
stand base in an upright position.
2. Pull out the locking pin at the bottom
rear of the stand body. The screen
may spring upwards when the pin
is removed.
3. The height can be adjusted up to
130.0mm (5.2 in).
Caution: Once the pin is removed, it is not
necessary to re-insert it to adjust the height.
Warning: Do not put your fingers or hand
between the screen and the base (chassis)
when adjusting the screen's height.
Adjusting the angle
1. Place the monitor in an upright
position, mounted on the stand base.
2. Adjust the angle of the screen. The
angle of the screen can be adjusted
forwards or backwards from -5° to 20°
Power off
for a comfortable viewing experience.
Press and hold the
joystick button once
with your finger to turn
off the monitor when
the MENU OSD is off.
Warning: To avoid injury to your
fingers when adjusting the screen,
do not hold the lower part of the
monitor's frame as illustrated below.
