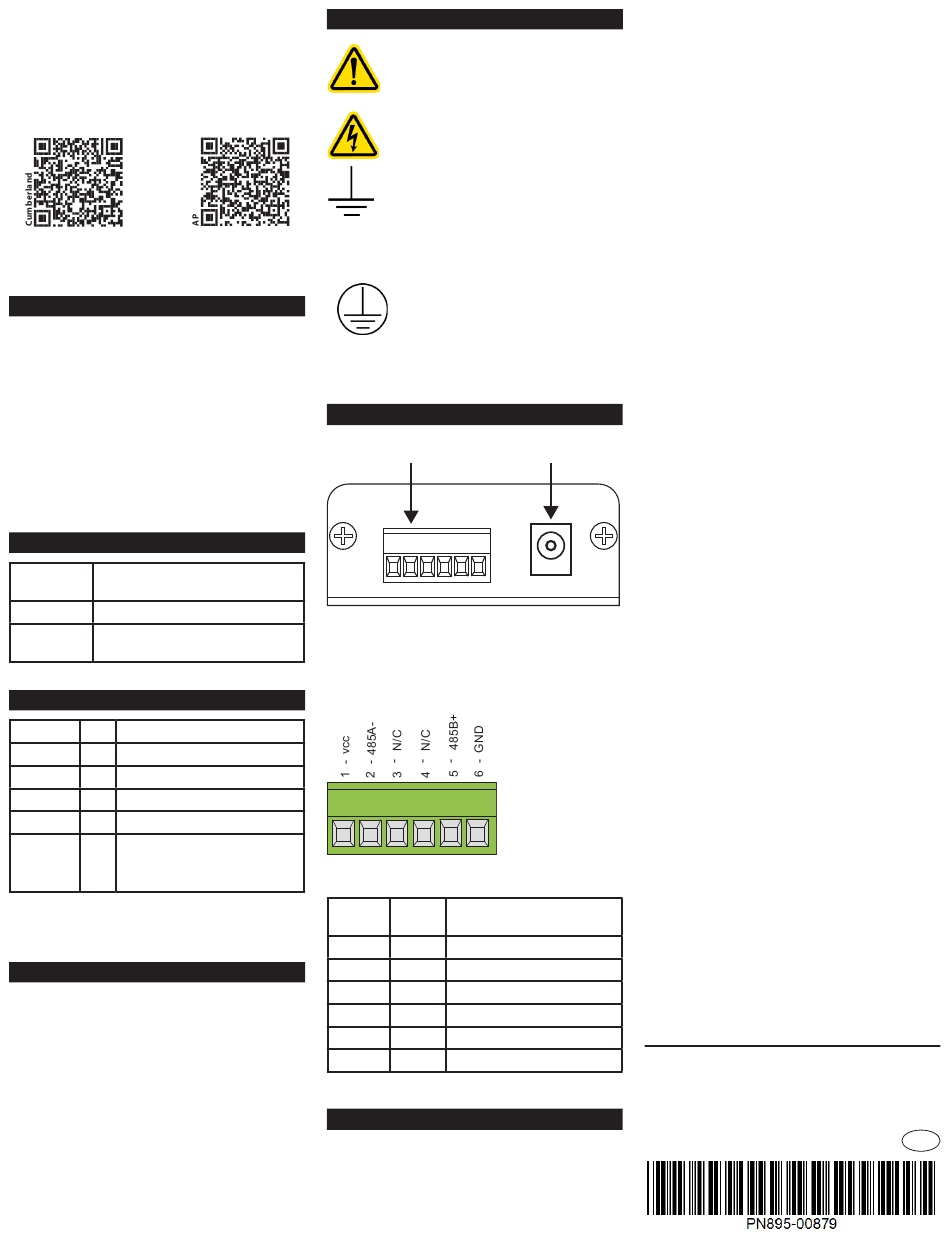

AA128 Wireless Kit OTS
Quick Start Guide
NOTE: Please scan the QR Code to access the electronic
version of Installation Guide or visit the website:
Cumberland: http://www.cumberlandpoultry.com
AP: http://www.automatedproduction.com
NOTE: Search for 892-00104 to have electronic
version of this document in the manuals search
engine.
1 - INTRODUCTION
This quick guide shows how to connect the AA128
Wireless Module Kit (OTS) "Laird CL4790" on the AA128
Touch and the AA128 Auxiliary Modules network. Each
AA128 Wireless Module arrives pre-paired from the
factory with a group of two wireless modules. They are
identified by the same serial number. If the wireless
modules do not use the same serial number, the
wireless network will not work because they are not
paired. A pair of AA128 Wireless Modules replaces one
specific physical cabled link.
The radio module distance is 2Km (1 mile).
2 - ORDERING INFORMATION
GSIE Part
Description
Number
075-10999
AA128 Wireless Module Kit (OTS)
AA128 Wireless Module Kit OTS
075-11000
Plastic Box
3 - KIT CONTENTS
Item
Qty
Description
511-00603
2
RF Coaxial Cable, 5 m
833-00036
2
5dBi Antenna
895-00879
1
AA128 Wireless Document
2
Radio Modules
RF Coaxial Cable, 6.1 m
511-00653
2
NOTE: Only on 075-11000
NOTE: A radio module cannot be purchased
separately.
4 - NOTICES
• Only properly trained service personnel may
perform installation and service procedures.
(In other words: electricians, service personnel
employed by or active in an organization, business,
or service).
• All power sources must be disconnected prior to
wiring and installing.
• Electrostatic discharge (ESD) can damage
equipment and impair electrical circuitry. ESD
damage occurs when electronic components are
improperly handled and can result in complete or
intermittent failures.
• Warranty is void if the AA128 is used in a manner not
specified by the manufacturer.
5 - SYMBOLS
WARNING: Read the following text
carefully; it contains important information
which, if ignored, may cause the controller
to operate improperly.
High Voltage. Hazard of electrical shock.
Functional Ground Terminal. Primarily
used for functional earth terminals which
are generally associated with test and
measurement circuits. These terminals
are not for safety earthing purposes but
provide an earth reference point.
Protective Earth Ground Terminal.
Primarily used for protective earth
terminals. These terminals connect to
conductive parts of a device for the
purpose of safety and is intended to
be connected to an external system for
protective grounding.
6 - CL4790 INTERFACES
Terminal Block
Power Connector
1
2 3 4 5 6
Figure 1 - CL4790 connection interface
NOTE 1: Use the power connector only with the model
075-10999. Use the teminal block to supply when
having the model 075-11000.
Figure 2 - Pin out of CL4790 terminal block
Pin
Signal
Description
Number
Name
1
VCC
6-18V (1.3A required)
2
485-
485A-
3
N/C
No Connect
4
N/C
No Connect
5
485+
485B+
6
GND
Ground
Table 1 - Pin out of CL4790 terminal block
7 - HARDWARE INSTALLATION
Things to know before starting the installation
Operating Environment
• Install inside building except for antennas
according to the needs.
• Avoid exposing the system to harmful gases or
excessive humidity, install the system modules
in a corridor or a room dedicated to electronic
controllers.
• The ideal ambient temperature is between 20 °C
and 25 °C (68 °F - 77 °F). The temperature should
not go lower than 0 °C (32 °F) and should not
exceed 40 °C (104 °F).
• Make sure there is sufficient ventilation around
the AA128 Wireless Modules.
• Install the modules far from sources of vibrations
and where it will not get bumped.
NOTICE: Install the AA128 Wireless Modules as close
as possible to the controllers. Use 4 wood screws to
secure them on the wall. The AA128 Wireless Modules
must have a power outlet located within 1.8 meter
(3 ft) around them to connect the wall mount power
supplies provided with them.
NOTE: The instructions for fastening the antenna
is given in the antenna quick guide located in the
cardboard box.
NOTICE: Make sure firmware on the AA128 Module
Auxiliary is up to date before switching physical
network to wireless network.
NOTICE: Use the End of Line resistor in the AA128
Wireless Module when the distance is higher than
15 m (50 ft), refer to the End of Line wiring diagram
on page 3 for more information.
1. Connect one AA128 Wireless Module
communication cable to the AA128 Touch.
See Note 1
• Connect White wire from pin2 (485A-) terminal
Below
block on radio module 1 to the PVX terminal
block at position B on the AA128 Touch.
• Connect Green wire from pin5 (485B+) terminal
block on radio module 1 to the PVX terminal
block at position A on the AA128 Touch.
• Connect Black wire from pin6 (GND) terminal
block on radio module 1 to the PVX terminal
block at position GND on the AA128 Touch.
NOTE: The wire colors can be different, these are
for guidance only.
2. Connect the last AA128 Wireless Module
communication cable to the AA128 Auxiliary
Module.
• Connect White wire from pin2 (485A-) terminal
block on radio module 2 to the Automation
or Safety terminal block at position B on the
AA128 Auxiliary module.
• Connect Green wire from pin5 (485B+) terminal
block on radio module 2 to the Automation
or Safety terminal block at position A on the
AA128 Auxiliary module.
5200 Armand Frappier Saint-Hubert, Qc
E-mail: mtl_techsupport@agcocorp.com
ADO1341128
GSI Electronics Inc.
Canada J3Z 1G5
Phone: 1-877-926-2777
QSG 892-00104 REV01
REV 01
EN
